• Model NO.：QTF3-20
• Capacity：400*200*200mm About 9600PCS Per Shift
• Mould Capacity：400*200*200mmmm Make 3 Pieces Per Mould
• Weight：Around 2600kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：20 Seconds
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Interlocking Solid
• Transport Package：20 Feet High Container
• Specification：4700*1700*2580mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：2000 Sets Per Year

Basic Info.

Model NO. QTF3-20 Capacity 400*200*200mm About 9600PCS Per Shift Mould Capacity 400*200*200mmmm Make 3 Pieces Per Mould Weight Around 2600kgs Voltage Customized Your Local Voltage Moulding Cycle 20 Seconds Warranty 1 Year Pressure Hydraulic Brick Type Interlocking Solid Transport Package 20 Feet High Container Specification 4700*1700*2580mm Trademark Shiyue Origin Shandong Province, China HS Code 8474802000 Production Capacity 2000 Sets Per Year

Product Description

QTF3-20 Auto Block Brick Making Machine main parameters and specification

a) QTF3-20 is a compact oil hydraulic machine according to the standard of international. it has color feeding system itself, a special type for making color pavers.

b) The vibration system contains platform vibration and mould vibration so the products is very close grained and produced quickly.

c) The novel feeding system gives material exactly and average and assures the products having a high density.


Overall Dimension	4700*1700*2580mm
Vibration frequency	4600 rolls/minute
Main Vibration Form	Platform Vibration and pressure
Common brick type	color pavers
Pallet Size	680*530mm
Molding cycle	20s
Overall Power	14.25kw
Hydraulic pressrue	21Mpa
Total Mass	2.6T
Demolding method	Hydraulic
Factory Area	600m2
Applied Products	Concrete blocks, hollow/solid blocks, pavers, interlocking blocks , curbstone, colored pavers ,etc.
Raw Material	Crushed stone, sand , cement, dust, and fly ash, gravel, slag, and other raw material etc.

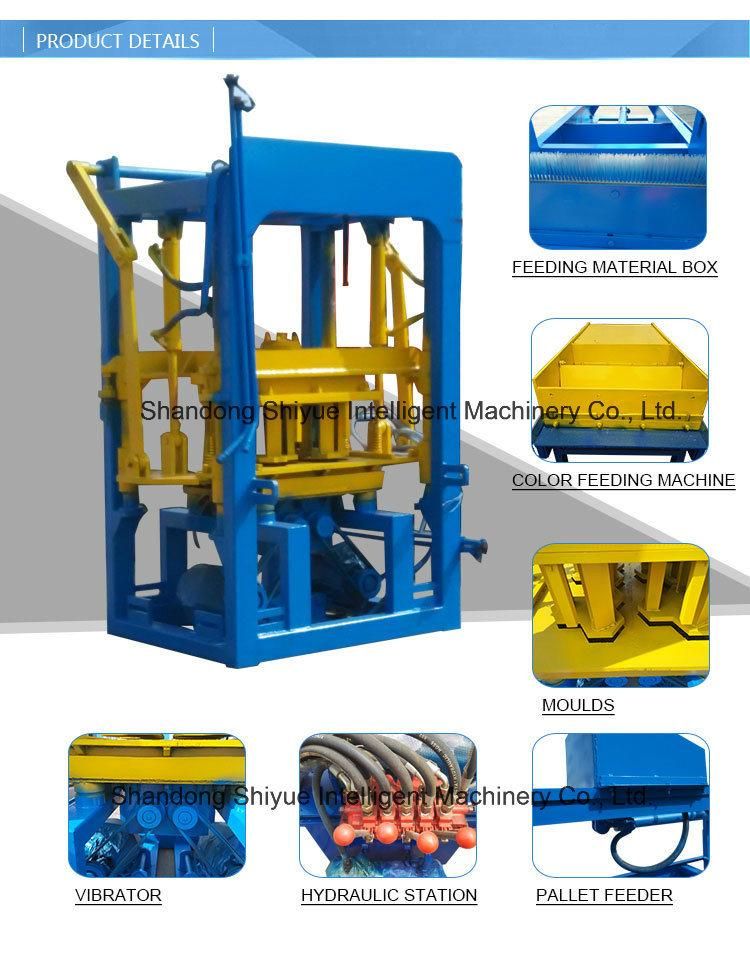

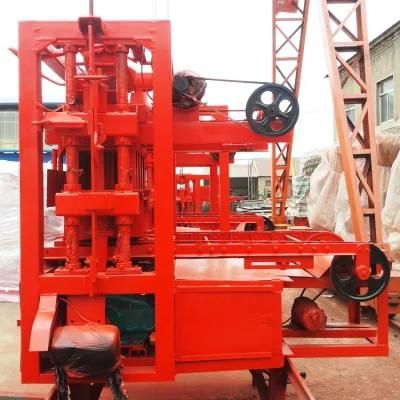

QTF3-20 Auto Block Brick Making Machine show

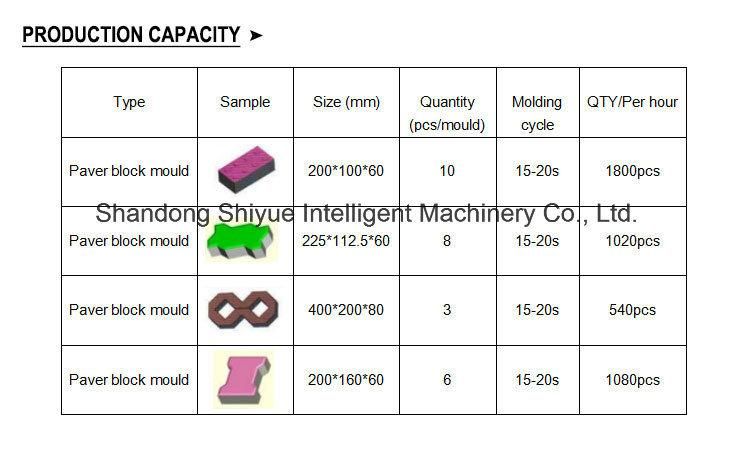

common brick capacity




FAQ
1> Is this block machine suitable for us to use?
Answer: if you want to make common bricks and Medium capacity, this model is suitable for you, if no, please tell us what kind of bricks do you want to make? or what capacity do you prefer?Then the most suitable model can be recommended to you.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 1 year guarantee for the whole machine (without the spare parts),good machine no need after sale service,we keep the superior quality machine for you.
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other payment term,we can negotiation.
