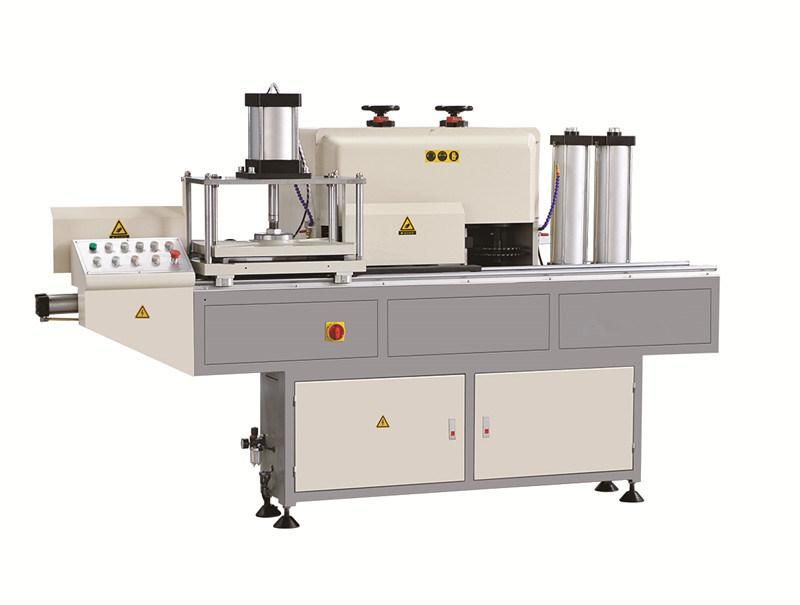

New Type End Milling Machines for Aluminum Profile with Five Cutters
Shandong Truetec Machinery Co., Ltd.- Condition:New
- Certification:ISO, CE
- CNC or Not:not CNC
- Voltage:380V
- Product Name:New Type End Milling Machines for Aluminum Profile
- Cutting Motor Power:4*2.2kw
Base Info
- Model NO.:CLXDB-250C
- Motor Rotary Speed:2800r,Min
- Air Pressure:0.6-0.8MPa
- Spindle Diameter:Φ32mm
- Diameter of Milling Cutter:Φ250mm
- Saw Blade Specification:Φ305
- Cutter Adjustment:0-85mm
- Worktable Journey:0-1500mm
- Color:Gray or as Requirement
- Keywprd:End Milling Machine for Sale
- Transport Package:Simple Stretch Film or Plywood
- Trademark:TRUETEC
- Origin:Shandong China
- Production Capacity:20 Sets Per Month
Description
Basic Info.
Model NO. CLXDB-250C Motor Rotary Speed 2800r/Min Air Pressure 0.6-0.8MPa Spindle Diameter Φ32mm Diameter of Milling Cutter Φ250mm Saw Blade Specification Φ305 Cutter Adjustment 0-85mm Worktable Journey 0-1500mm Color Gray or as Requirement Keywprd End Milling Machine for Sale Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 20 Sets Per MonthProduct Description
New type end milling machines for aluminum profile with five cuttersEquipment Advantages
1. Used for aluminum profile and suitable for various profiles.
2. Clamp one time can processing multi-piece profiles, which increased the processing efficiency.
3. Universal milling blades can be adjusted in up/down left/right directions and not made extra, which to fit for different processing requirement and ensure the efficient working.
4. Convenient tool adjustment to meet different processing requirement, no need customized tools when process various profile, thus can decrease cost and save time.
5. Large tool diameter, high milling speed and good processing result.
6. Motor driving system for feeding.
Technical Data
Model | CLXDB-250C |
Input power | 4*2.2kw |
Power supply | 380V 50Hz |
Motor rotary speed | 2800r/min |
Operation air pressure | 0.6-0.8MPa |
Spindle diameter | Φ32mm |
Saw blade specification | Φ305 |
Diameter of milling cutter | Φ250mm |
Cutter adjustment | 0-85mm |
Worktable journey | 0-1500mm |
Overall dimension | 2680*1200*1600mm |
Weight | 1000kg |

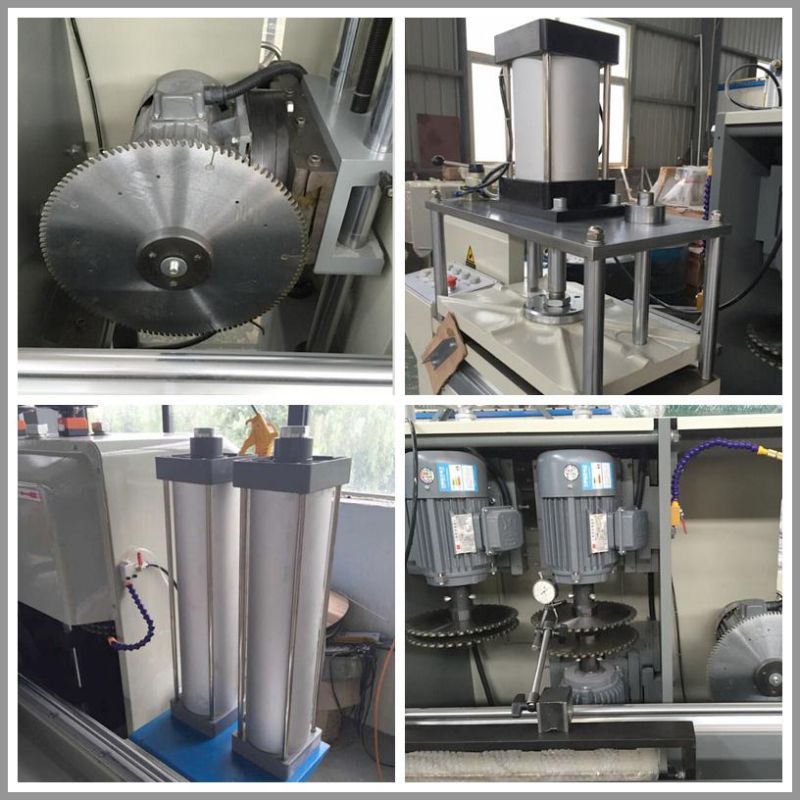

Machines Details

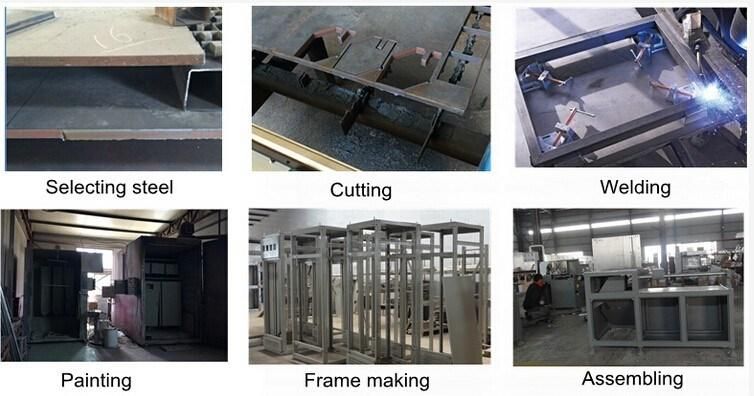

Machine processing
We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.
Packaging&Shipping
Our Services
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our Company
Welcome To Visit
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
Our Exhibition
FAQ
1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
