Lfx-300X100 Single Shaft Copying Mining Machine CNC Machine Aluminum Doors and Windows for Drainage Channels
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：LFX-300X100
- Voltage：380V
- Numerical Control：CNC,Mnc
- Performance Classification：MID-Range CNC Machine Tools
- Application：Window
- Specification：870*1130*1420mm
- Trademark：Zunbo
- Origin：China
Description
Basic Info.
Model NO. LFX-300X100 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Specification 870*1130*1420mm Trademark Zunbo Origin ChinaProduct Description
Product Description:

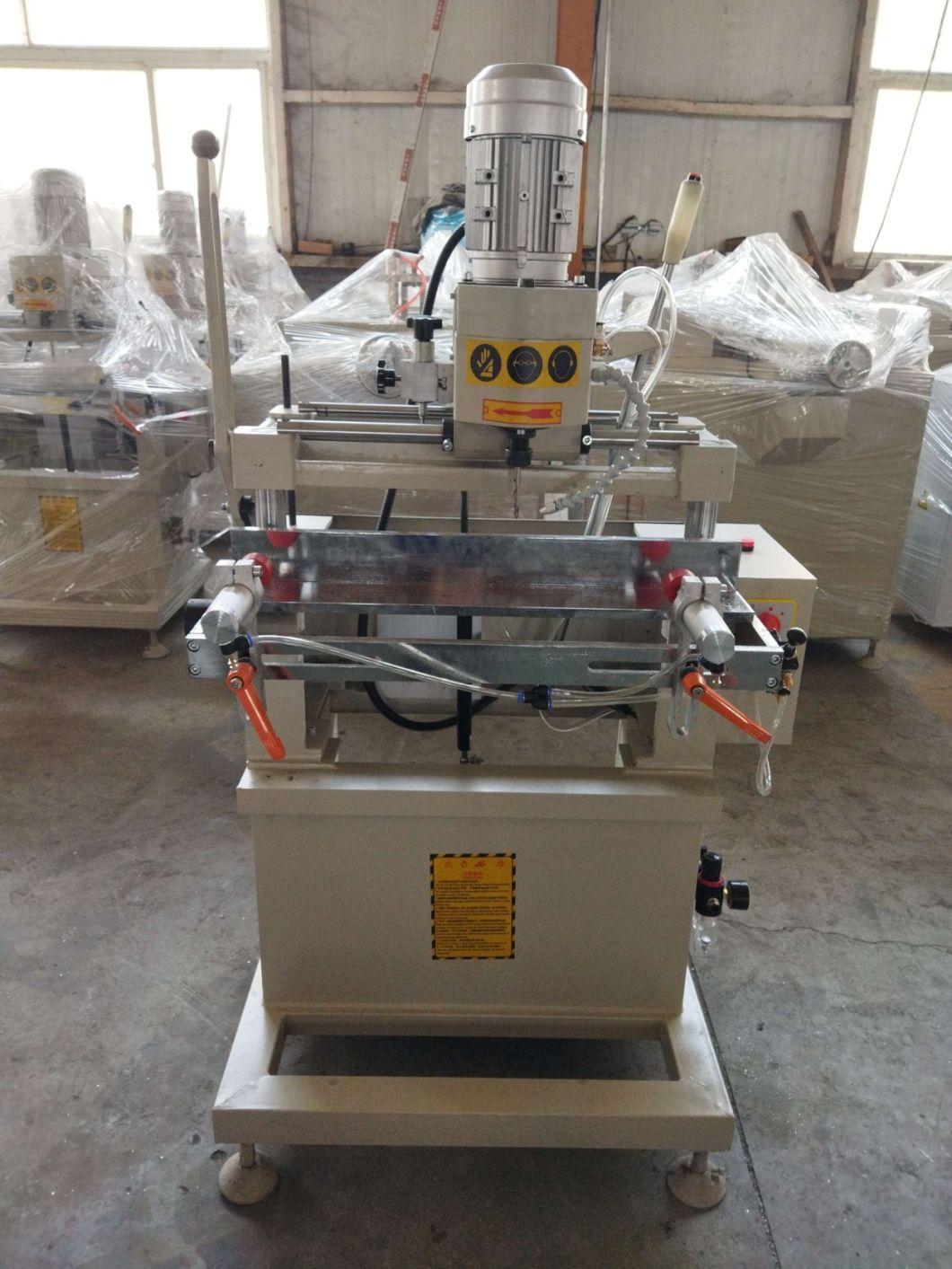

Model: LFX-300X100This machine consists of two milling heads in the vertical and horizontal directions.
It is used for profile milling of drainage grooves, keyholes and hardware holes of aluminum profiles.
Through the belt speed increase, high-speed milling is realized, and the milling quality is better.
Changing different profiling templates can process slots of different shapes.
Technical Parameter:
Power Supply: 380 V 50 Hz
Input Power: 2.2 kW
Air Pressure: 0.4-0.6 Mpa
Air Consumption: 30 L/min
Copy-routing Range: 300*100 mm
Motor Rotational Speed: 2800 r/min
