• Model NO.：50-75-100
• Automatic Grade：Automatic
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Transport Package：Plastic Film
• Specification：50-75-100
• Trademark：Nexus Machinery
• Origin：Cangzhou
• Production Capacity：10

Basic Info.

Model NO. 50-75-100 Automatic Grade Automatic Coil Material Thickness 0.3-0.8mm Processing Material Galvanized Steel Roller Material Cr12MOV Transport Package Plastic Film Specification 50-75-100 Trademark Nexus Machinery Origin Cangzhou Production Capacity 10

Product Description

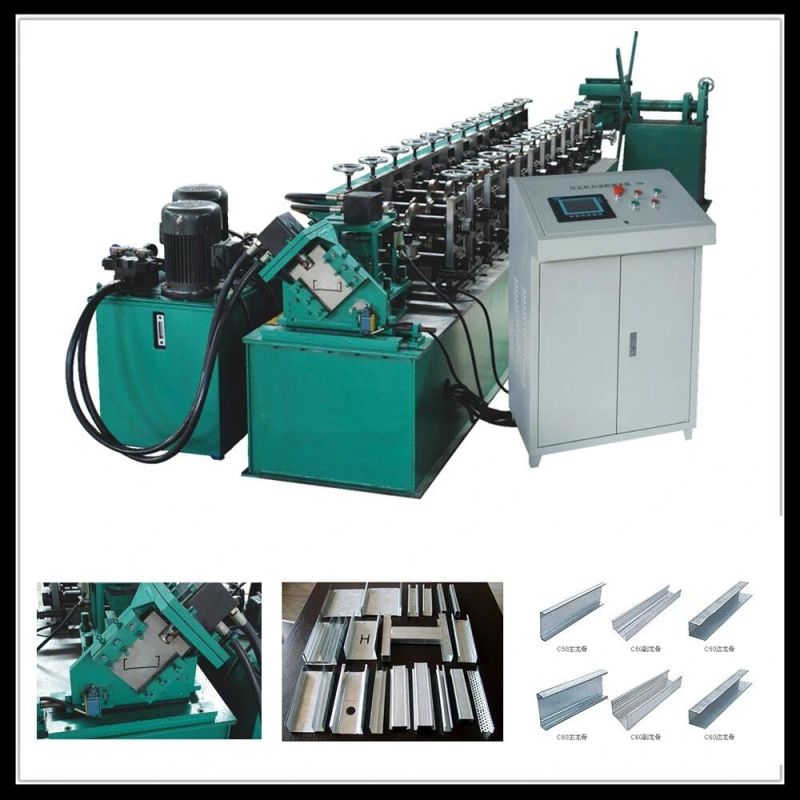

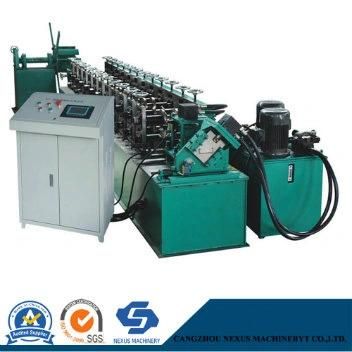

Light Gauge Steel Frame Roll Forming Machine Light gauge stel frame roll forming machine is consist of decoiler ,feeding, roll forming, punching and cutting. They all automatic controlled by computer. The feature are efficient and easy to be controllrd.




1. Profile	Coil material thickness:0.3-0.8mm Sizes: 76mm*35mm, 76mm*32mm Processing Material :galvanized steel Input Width(mm): according to drawings
2. Process flow	Decoiler--Feeding--Forming--Servo track Cutting--Product Table
3. Manual Decoiler	1).Material coil inner diameter: 450mm-550mm   2).Max coil Width:500mm 3).Carrying capacity: 1.5T 4) Type of decoiler: Manual 5) Weight of decoiler: 100 KGS

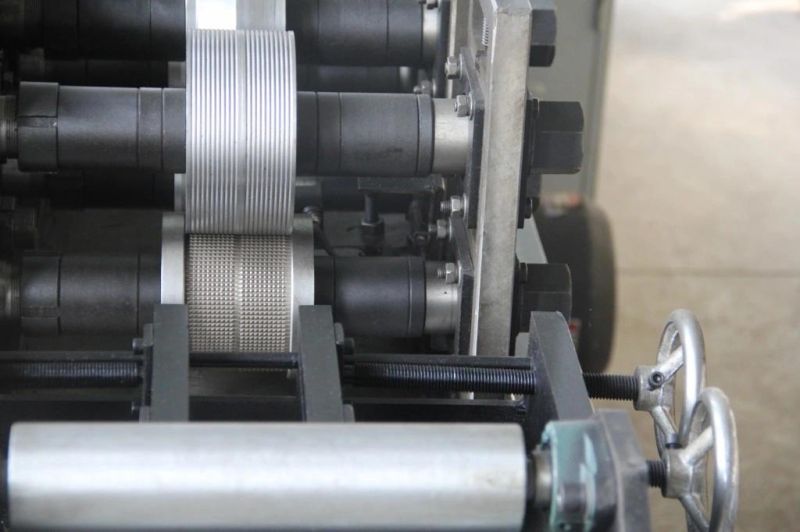

4. Forming System	.Roller station:12 stations .Shaft material:45# steel           Outer diameter:40mm              Roller material: Cr12MoV    .Transport: chain transmission .Forming Speed: 15-25m/min   Length Measurement:counter .Motor:3kw .Normal Size of Machine: 3.5mx1.2mx1.45m or as design .Voltage:380v,50Hz,3 phase (or as demand)
5. Cutting System	1).Material: blade and mold material: Cr12MoV steel with quenched treated 60-62ºC .Cutting system: Advanced hydraulic drive, automatic cutting with no stop, no distorting or wasting, high level safety factor.
6. Control System	6.1 Screen: touch screen   6.2 PLC: Delta 6.3 Automatic length measurement   6.4 Automatic quantity measurement   6.5 Computer is used to control length and quantity. Machine will automatically cut to length 6.6 Length inaccuracy can be amended easily
7. Hydraulic System	1). Hydraulic system made in china 2). Power:3kw   3) Oil: Hydraulic 46#

1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
