• Model NO.：CLJB2B-CNC-500*6000
• Cutting Motor Power：2*2.2kw 2800r,Min
• Servo Motor Power：2*1kw 1*1.5kw 4050r,Min
• Air Pressure：0.5-0.8MPa
• Air Consumption：60L,Min
• Blade Specification：Φ500*Φ30*4.4 Z=120
• Cutter Feeding Speed：0-3m,Min
• Cutter Moving Speed：0-20m,Min
• Cutting Length：360-6000 at 90°, 760-6000at 45°
• Cutting Width：Max. 135mm
• Cutting Height：Max. 230mm
• Cutting Angle：45°-157.5°
• Repeat Locating Length Tolerance：±0.2mm
• Keywprd：Variable Angle Cutting Saw
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. CLJB2B-CNC-500*6000 Cutting Motor Power 2*2.2kw 2800r/Min Servo Motor Power 2*1kw 1*1.5kw 4050r/Min Air Pressure 0.5-0.8MPa Air Consumption 60L/Min Blade Specification Φ500*Φ30*4.4 Z=120 Cutter Feeding Speed 0-3m/Min Cutter Moving Speed 0-20m/Min Cutting Length 360-6000 at 90°, 760-6000at 45° Cutting Width Max. 135mm Cutting Height Max. 230mm Cutting Angle 45°-157.5° Repeat Locating Length Tolerance ±0.2mm Keywprd Variable Angle Cutting Saw Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

Product Description

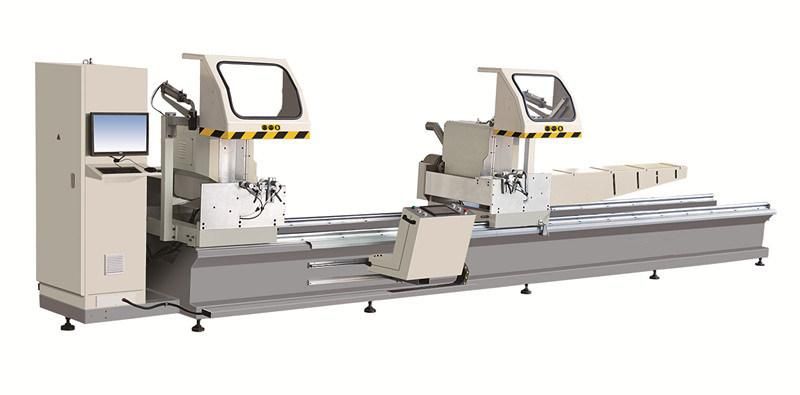

CNC variable angel double head sliding glass window cutting machines

Equipment Advantages

1. The machine adopts Europe model with neat appearance and good style.
2. The directly connected blades adopt lever-swing cutting type.
3. The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutter.
4. The imported high precision blade makes the cutting surface more smooth.
5. The cutting angle is auto adjustable through the imported servo motor between 45°to 157.5°.
6. Imported control system can accomplish cutting optimization.
7. Several profile processing dimensions can be input in one time and make continuous cutting.
8. The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
9. The air proof device under the worktable has wonderful crumbs-clearing effect.
10. The following saw cover keeps it working in the clean environment.
11. The profile is clamped by two cylinders in every head, and kept the cutting security.

Technical Data


Power supply	380V 50Hz 3P
Cutting motor power	2*2.2kw, 2800r/min
Servo motor power	2*1kw, 1*1.5kw, 4050r/min
Operation air pressure	0.5-0.8MPa
Air consumption	60L/min
Blade specification	ø500*ø30mm*4.4,  Z=120
Cutter feeding speed	0-3m/min
Cutter moving speed	0-20m/min
Cutting length	360-6000 at 90° 760-6000 at 45°
Cutting width	Max 135mm
Cutting height	Max. 230mm
Cutting angle	45°-157.5°
Repeat locating length tolerance	±0.2mm
Overall dimension	7800*1500*2040mm
Weight	2500kg

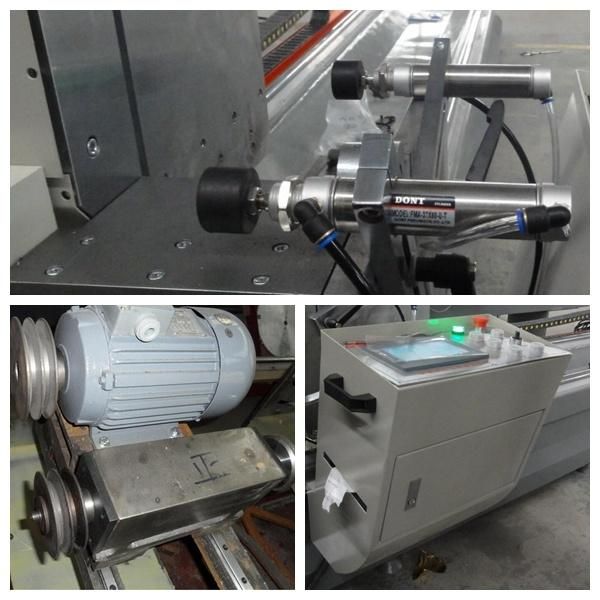

Machines Details
Main Accessory


Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

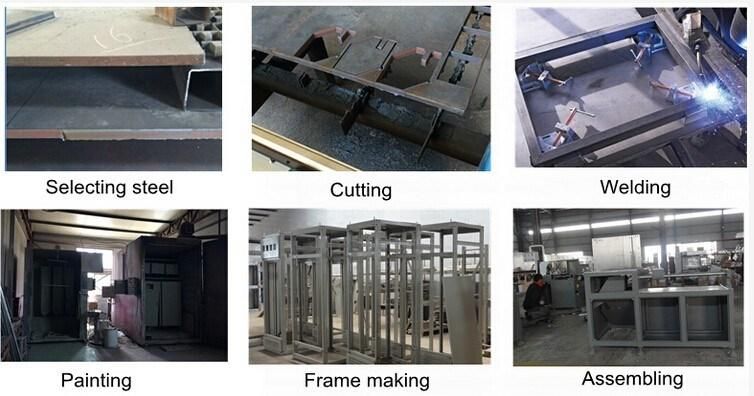

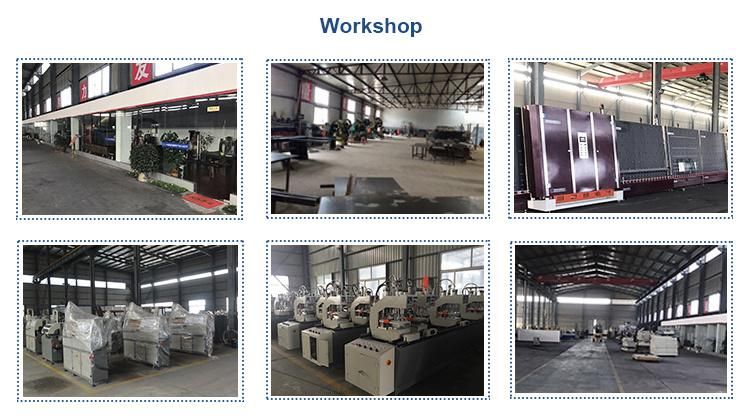

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
