• Model NO.：LJZ2-500x4200
• Input Power：3.0kw
• Air Pressure：0.4~0.6MPa
• Air Consumption：120L,Min
• Spindle Speed：2800r,Min
• Cutting Length：360~3600mm
• Cutting Width：≤100mm
• Cutting Height：≤150mm
• Overall Dimension：4300×1200×1300mm
• Transport Package：Plastic Cover, Plywood Cases, or Others
• Trademark：YUEFENG
• Origin：Jinan, Shandong
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LJZ2-500x4200 Input Power 3.0kw Air Pressure 0.4~0.6MPa Air Consumption 120L/Min Spindle Speed 2800r/Min Cutting Length 360~3600mm Cutting Width ≤100mm Cutting Height ≤150mm Overall Dimension 4300×1200×1300mm Transport Package Plastic Cover, Plywood Cases, or Others Trademark YUEFENG Origin Jinan, Shandong Production Capacity 100 Sets Per Month

Product Description

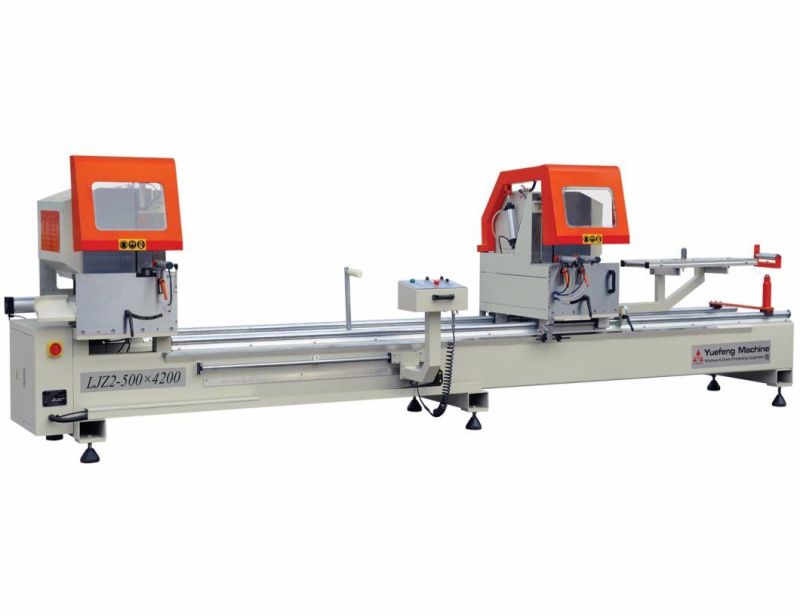

PVC Plastic Profile 2 Head Cutting Saw Machine

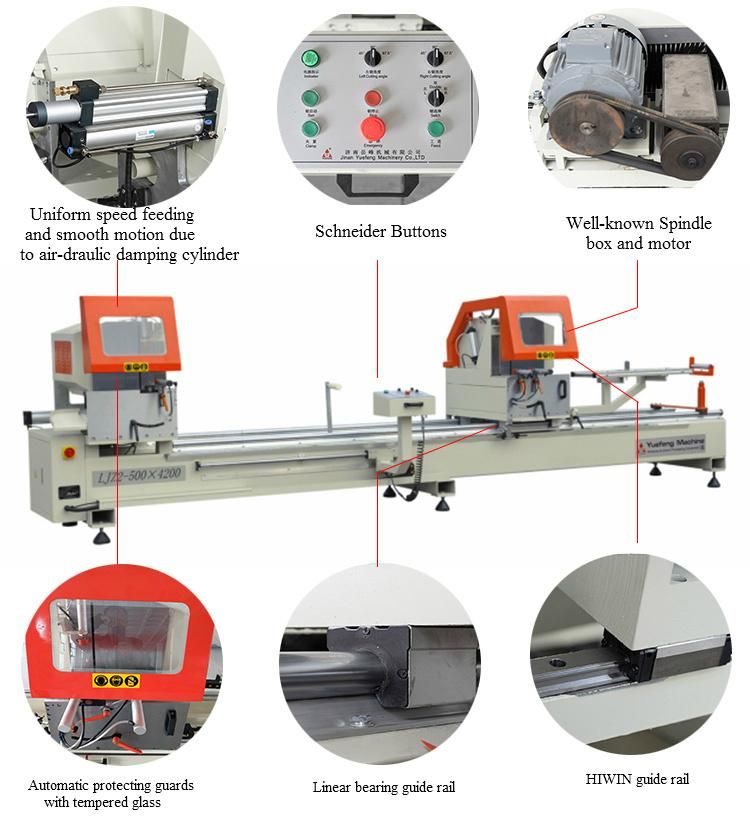

Two heads work independently or together.
Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.
Automatic protecting guards result convenience and safety.



 Technical Parameter:

Model	LJZ2-500×4200(5000)
Input voltage	380V 50Hz
Input power	4.5Kw
Air pressure	0.5~0.8MPa
Air consumption	200L/min
Spindle speed	3200r/min
Cutting length	360~4200mm(360~5000mm)
Cutting width	10~130mm
Cutting height	10~300mm
Cutting angle	90° 45° 67.5°
Saw feeding speed	0~3m/min
Saw blade standard	φ500×4.4×φ30×Z120
Overall dimension	5500(6300)×1700×1600mm





RFQ:

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
