Building Material Making Machinery

Qt10-15 Full Automatic Hydraulic Block Making Machine

Shandong Xinming International Trade Co., Ltd.
  • After-sales Service:Our Engineers Be Able to Come
  • Warranty:2 Years
  • Certification:CE, ISO
  • Customized:Customized
  • Automatic Grade:Automatic
  • Type:Hydraulic Shock

Base Info

  • Model NO.:QT10-15
  • Power:50.2kw
  • Cycle:10~15s
  • Vibration Force:100kn
  • Shaping:Vibration+Hydraulic
  • Pallet Size:1150X900X27mm
  • Machine Size:5700*2150*2650
  • Weight:7000 Kgs
  • Worker:5-7 Workers
  • Related Accessories:100t Silo, PLD1200 Batching, Js750 Mixer, Forklift
  • Automatic:Yes
  • Machinery Test Report:Provided
  • Brick Size:400*200*200 mm, 400*150*200 mm, 200*100*60 mm...
  • Production Capacity (Pieces/8 Hours):18000-23000PCS for 400*200*200 mm
  • After Warranty Service:Video Technical Support, Online Support, Spare PAR
  • Voltage:380V
  • Transport Package:Plywood Box with Iron Frame
  • Specification:5700*2150*2650
  • Trademark:XINMING
  • Origin:Shandong, Linyi
  • HS Code:8474802000
  • Production Capacity:50000sets,Year

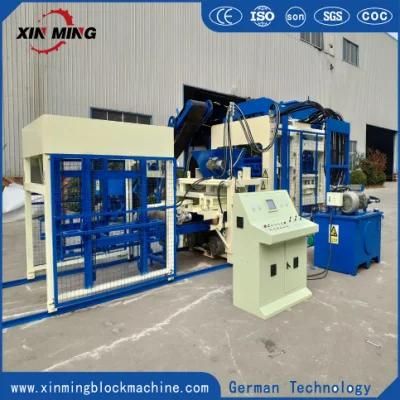

QT10-15 concrete block making machine
1.Adopt advanced microcomputer control system,reliable hydraulic system,combine machine,control system,hydraulic integration automatic control,simple and reliable operation.
2.Hydraulic system adopt unique proportional valve multi-way control system,all-round adjust any action;ensure equipment is running reliable and sensitive.
3.PLC intelligent control system is advanced microcomputer control system,which could makes machine every movements works fluently and efficiency.
4.Perfect combination of high quality inverter with efficiency vibrator,and advanced press and vibration molding technology,which make concrete full liquefaction and exhaust in two to three seconds,ensuring product of high density,especially for the production of high-strength standard bricks,can be stacked after forming.
Qt10-15 Full Automatic Hydraulic Block Making Machine
PLC Control System
Function:PLC is a remote control system used to replay relay,executive logic and other sequential control functions.
Advantage:PLC has the characteristica of strong universality,convenient use,wide adaptability,high reliability,strong anti-interference ability and simple prongramming.
Qt10-15 Full Automatic Hydraulic Block Making Machine Qt10-15 Full Automatic Hydraulic Block Making MachineStacker:
Put the cartons packed in containers on the pallet according to a certain arrangement,stack them automatically,and then push them out,which is convenient for forklift transportation.
Block mould
Function:Comprise an upper die and a lower die,and that interaction between the upper die and the low die prevents the periphery of the punched material from being deform.
Advantage:After carbonization and wire cutting technology,the mold is more wear-resistant and has a longer service life.
Qt10-15 Full Automatic Hydraulic Block Making MachineQt10-15 Full Automatic Hydraulic Block Making Machinejs350Mixer:Stir evenly and thoroughly, without residue, simple structure, simple operation, fast discharging speed, sturdiness and durability, long service life, and convenient maintenance. 100T cement silo:
Store cement raw materials, equipped with an air ram at the bottom to prevent cement from condensing at the exit and speed up the production processQt10-15 Full Automatic Hydraulic Block Making Machine
Qt10-15 Full Automatic Hydraulic Block Making Machine

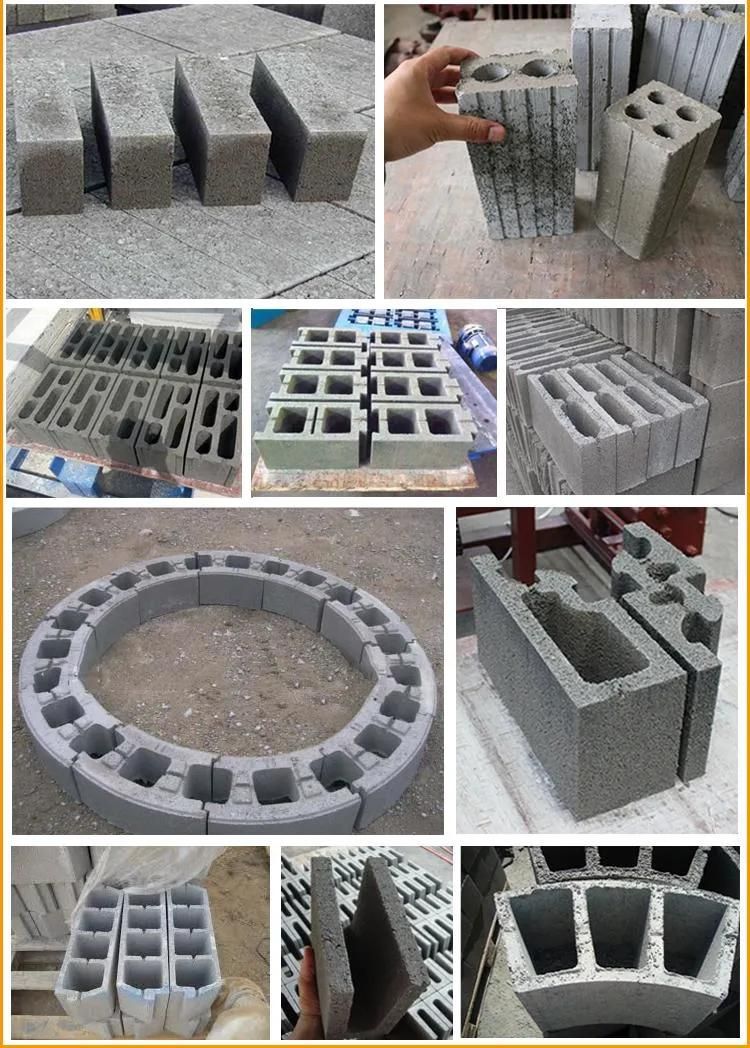

     Technical Specification Power50.2kwCycle10~15SVibration Force100KNShaping:vibration+hydraulicPallet Size1150x900x27mmMachine Size5700×2150×2650Weight7000 KGS Worker5-7 Workers Related Accessories100T Silo, PLD1200 Batching, JS750 mixer, Forklift, 2000pcs Pallet Production Capacity  Qt10-15 Full Automatic Hydraulic Block Making Machine  Production Samples
Qt10-15 Full Automatic Hydraulic Block Making Machine

1.Packing:Seal the whole body with plastic wrap and put it in ironform plywood box.
2.Terms of delivery:From our factory to Qingdao Port,China
3.Guarantee:A warranty period for the Machine is 12 months.

Qt10-15 Full Automatic Hydraulic Block Making Machine
Our Services
1.Before-sale services:
1)Guide customers to choose the best appliable machine type;provide the advanced,energy-saving and practical technological process.
2)We are responsible for the process chart and design.
2.Sale services:
1)Products must be inspected strictly before selling.
2)In accordance with the agreements stipulated in the contract.
3)We will organize delivery.
3.After-sale services:
1)Our company will send professional engineers to guide eith device installation,debugging and training operators until customers are fully satisfied.Moreover,we will design and manufacture products,according to the special requirements of customers.
2)Because of the problems caused by quality rather than human factors,we repair them free of charge.The quality guarantee period for machines is one year except the wearing parts.

 Company information
Qt10-15 Full Automatic Hydraulic Block Making Machine

 Contact us
    Below is our contact information, please contact us. We can send you many machine working videos by mobile. We can talk further.
    Thank you for your support and trust!

    Export company: ShanDong Maiwoden Ioport and Export co.,ltd.
    Add: Tancheng Industrial Area, Linyi City, Shandong , China

   Welocone to come to visit our factory!
Qt10-15 Full Automatic Hydraulic Block Making Machine
