Building Material Making Machinery

HDPE Puf Preinsulation Pipe Making Machine

Qingdao Huashida Machinery Co., Ltd.
  • After-sales Service:All Life
  • Warranty:6monthes
  • Pipe Material:PE
  • Condition:New
  • Customized:Customized
  • Theory:Inverter

Base Info

  • Application:Industry
  • Type:Pipe Production Line
  • Total Power:540kw
  • Produce Capability:1000-1200kg,H
  • Material:PE, PP Raw Material
  • Processing Line Length:45000mm
  • Transport Package:Wooden and Plastic Film
  • Specification:69, 000x3, 000x3, 500mm
  • Trademark:HSD
  • Origin:Qingdao China
  • HS Code:84772090
  • Production Capacity:50 Units,Year

Description

Basic Info.

Application Industry Type Pipe Production Line Total Power 540kw Produce Capability 1000-1200kg/H Material PE, PP Raw Material Processing Line Length 45000mm Transport Package Wooden and Plastic Film Specification 69, 000x3, 000x3, 500mm Trademark HSD Origin Qingdao China HS Code 84772090 Production Capacity 50 Units/Year

Product Description

HDPE puf preinsulation pipe making machine

HDPE Puf Preinsulation Pipe Making Machine



Technology:  Vacuum Calibrating Method
Advantage:
Vacuum calibrating method pre-insulated pipe outside casing extrusion line is the most advanced and popular machinery in the world. HSD brand absorbs the advanced technology from German and improve to meet development. Especially compared with internal pressure method, Vacuum calibrating method is much better than it for stiffness, pressure resistance and surface smooth.

We aopt PLC automatic operation , Big length-radius proportion screw stem to improve  extrusion capacity, optimized  design for  extrusion mould, Planet cutter suitable for varioul size pipe, and so on. So You choose HSD machinery then you choose saving cost and steady capability and lifelong service etc.



Pipe  Application:
PE Pipe produced by this line, is with excellent stiffness, flexibility, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage and so on.


It has become the first choice for the city gas pipe, water supply pipe, foundation pipe, landfill collection pipe, watermain, geothermal heating etc.

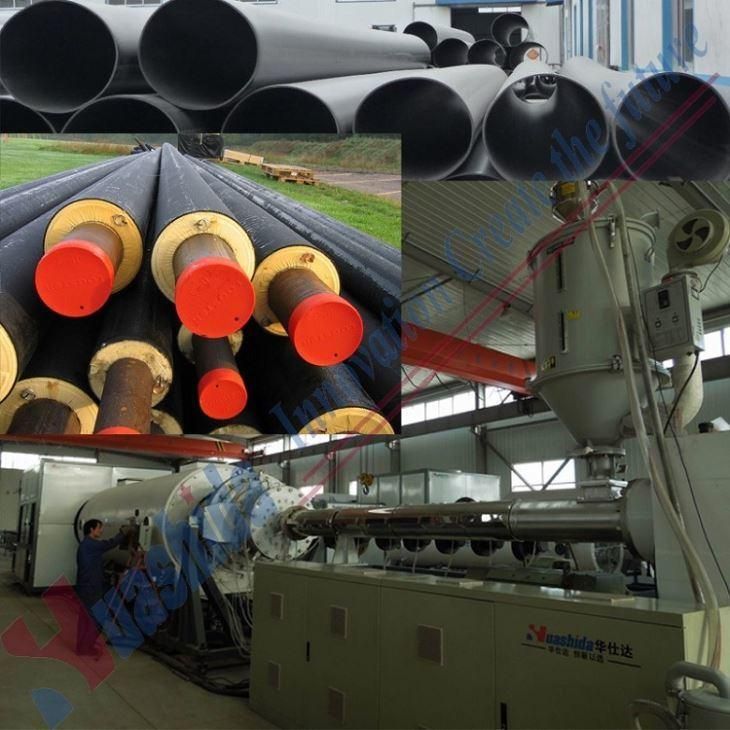

Compose of Processing Line
1. Automatic Vacuum Feeding
2. Drying Machine
3. single screw Extruder
4. Mold
5. calibrating

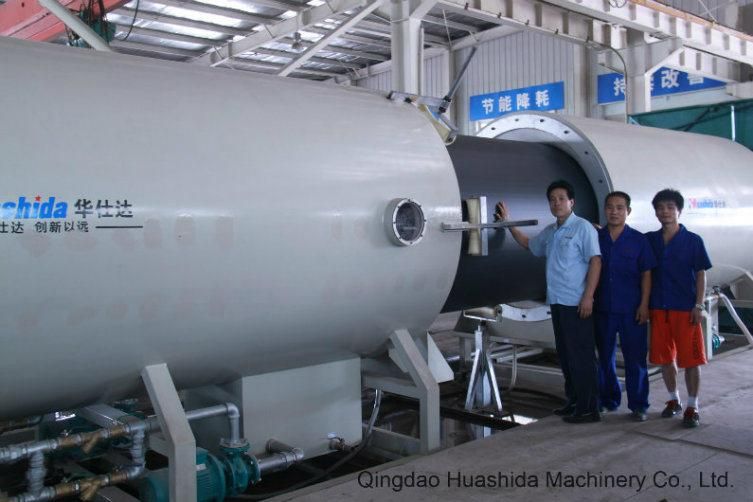

6. vacuum calibrating water tank
7.Hauling Machine
8. Cutting Machine

9. Carrier
10. PLC Aotumatic Control System
HDPE Puf Preinsulation Pipe Making Machine




HDPE Puf Preinsulation Pipe Making Machine
Main Specifiction:
StylePE-110/600PE-365/760PE-655/1380PE-960/1680
Main extruderSJ-75/33SJ-90/33SJ-120/33SJ-150/33
Pipe diameterΦ110-600mmΦ 365-Φ 760 mmΦ 655-Φ 1380 mmΦ 960-Φ 1680mm
Capacity250-300kg/h400~500 kg/h850~950 kg/h900-1100kg/h
Installed power160kw420 kw480 kw580kw
Length35m36 m40 m48m
HDPE Puf Preinsulation Pipe Making Machine

Guarantee and after service
The guarantee period is 12 months from the date of installing, but no more than 14 months from the date of delivery. After this period we are obliged to provide with lifelong service at the expense of Buyer.
During the warranty period we are responsible to provide trouble shootings and help the customer to solve the problems, provide spare parts which are broken, except breakings caused by the Buyer.
We will provide the technical service train the workers from the buyers for free.
We can also send technicians to the buyer's companies abroad for help installation and testing the lines. But the buyer shall pay for the round trip tickets, accommodation, transportation, medicine treatment and insurance of the technicians in foreign countries and some salary accordingly.
HDPE Puf Preinsulation Pipe Making Machine

Our Team
HDPE Puf Preinsulation Pipe Making Machine

HDPE Puf Preinsulation Pipe Making Machine

Our international trading show

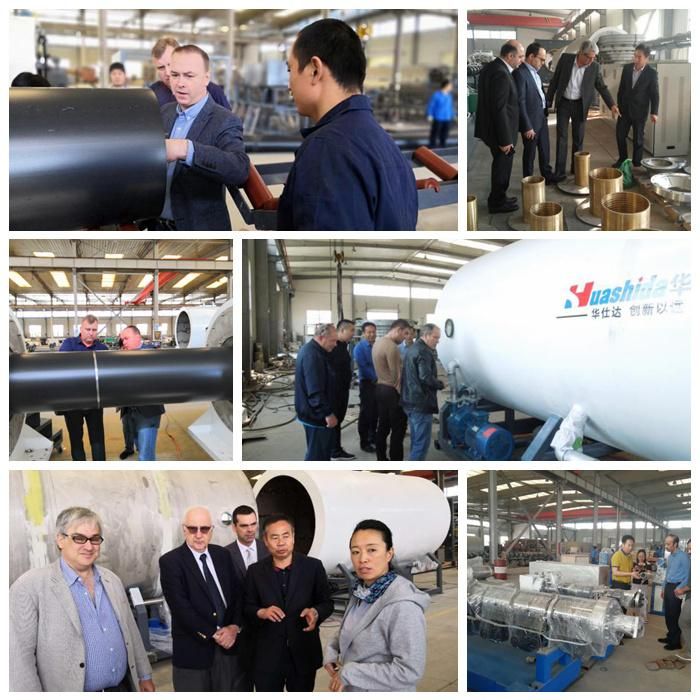

HDPE Puf Preinsulation Pipe Making MachineClients visit Huashida Insulation pipe extrusion line factory
