SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine

Cangzhou Nexus Machinery Co., Ltd.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall
  • Transmission Method：Electric

Base Info

  • Model NO.：NM288
  • Name：Trapezoidal Profile Steel Roof Tile Sheet Machine
  • Raw Material：PPGI Sheet
  • Thickness Range：0.3-0.8mm
  • Machine Power：5.5kw+3kw
  • Material of Shaft：45# Forged Steel
  • Work Speed：10-15m,Min
  • PLC Brand：Siemens, Panasonic
  • Operation Type：Touching Screen
  • Machine Weight：About 5 Tons
  • Warranty：12 Months
  • Transport Package：Plastic Film & Steel Wire Fixed
  • Specification：6500mm*1500mm*1500mm(L*W*H)
  • Trademark：NEXUS MACHINERY
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30 Sets , Months

Description

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming MachineMain motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station16 groupsRaw material0.3-0.8mmCoil width 914mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 8 tonSize of machineAbout 7500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.Product Name       QTY
15T Manual decoiler          1
2SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine
 (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)		          1
3Passive Output table          2
Sum           4

5. Character of main structure:More Products for your Choose:
  1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
  2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  4. It is very easy to install the equipment and suitable for producing in the factory.
  5. Low noise with high efficiency.

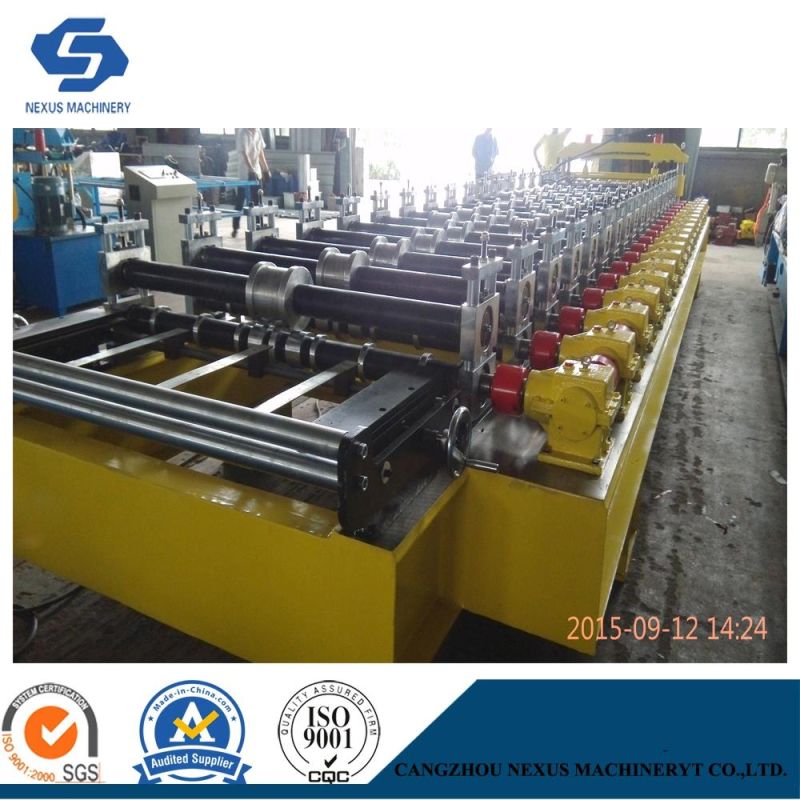

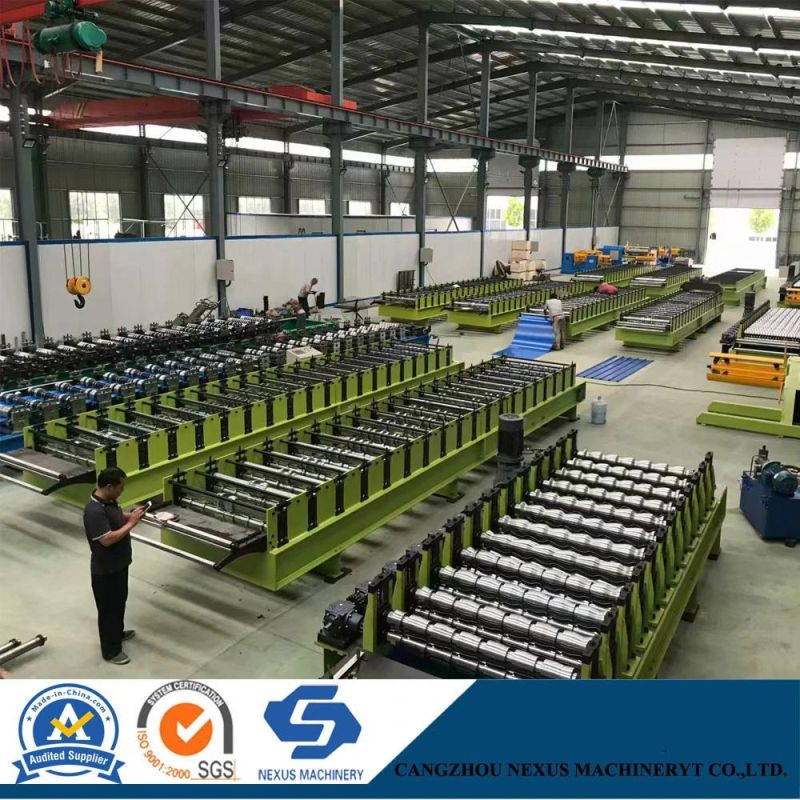

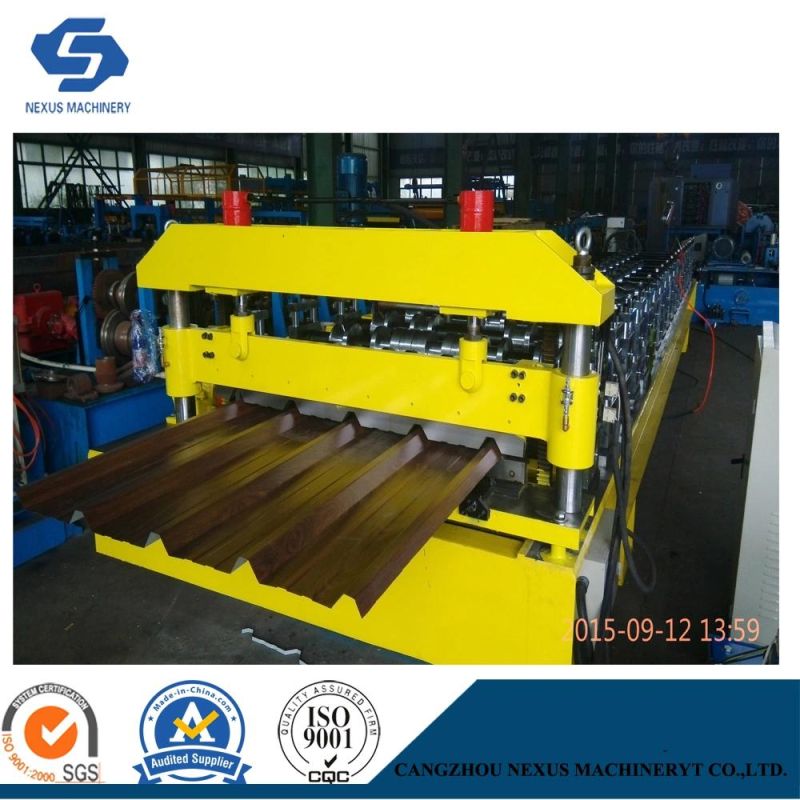

6. Photos of SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine for Reference:
SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine

SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine
SGS Certificates Trapezoidal Profile Steel Roof Tile Sheet Rolling Forming Machine

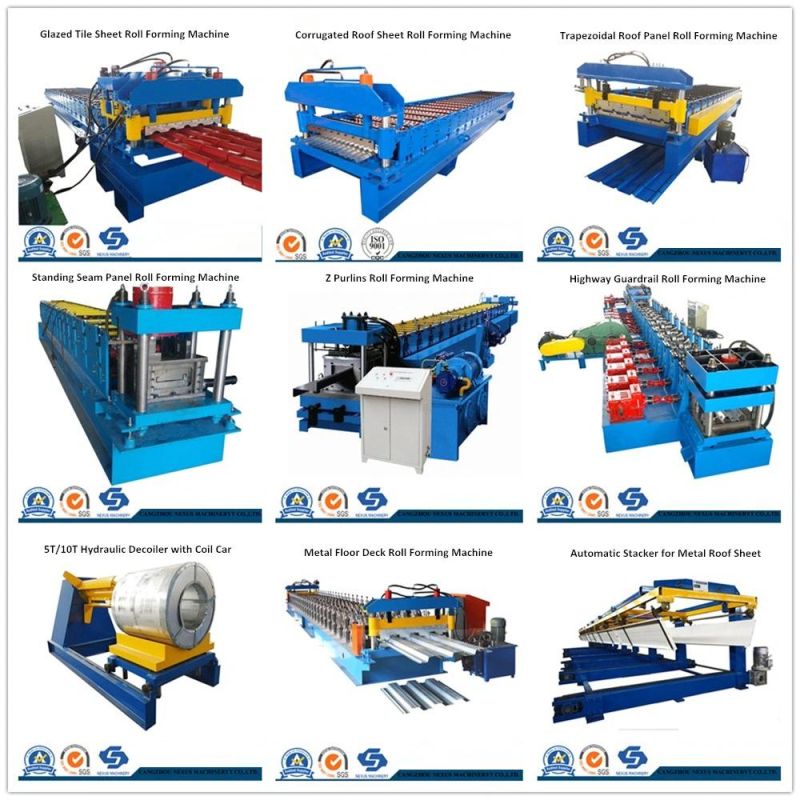

More Products for your Choose:
