• Model NO.：QT4-15
• Total Weight：8t
• Color：Blue
• Control：PLC
• Vibartion Form：Table
• Method：Hydraulic Pressure
• Processing：Brick Production Line
• Product：Brick
• Brick Raw Material：Concrete
• Automation：Automatic
• Tolerance：0.5mm
• Transport Package：40 FEET CONTAINER for one simple line
• Specification：ISO9001: 2000
• Trademark：HENGDA
• Origin：China(mainland)
• HS Code：8474809090
• Production Capacity：300 sets ,year

2. Scale of raw material of high density concrete blocks
10% cement, 30% sand, 60% stone(less than 10mm)

3. Guarantee of  block machine
We will supply one year guarantee about our concrete block making machine, when the client have the question
They could call our service department number any time, we will supply per day 24 hours service.
Within one year, if the client meet the unsolvable questions, we could fly to client place to help

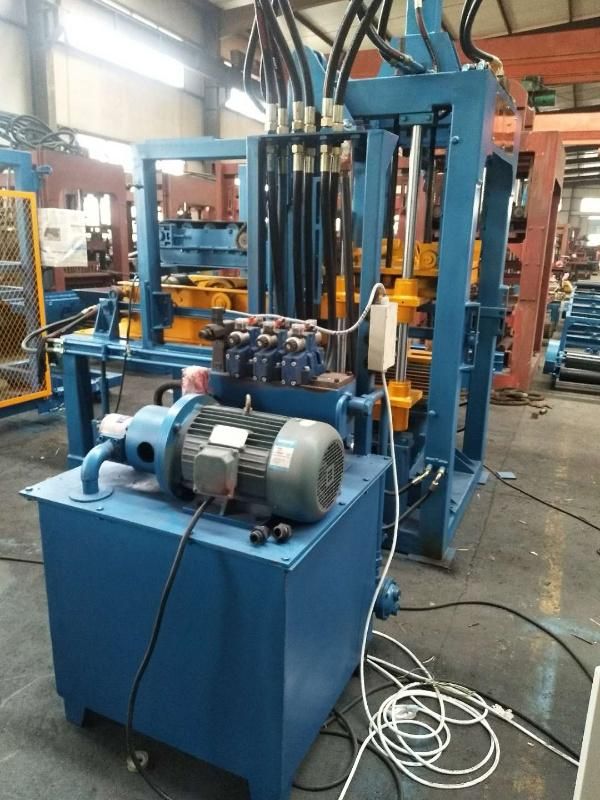

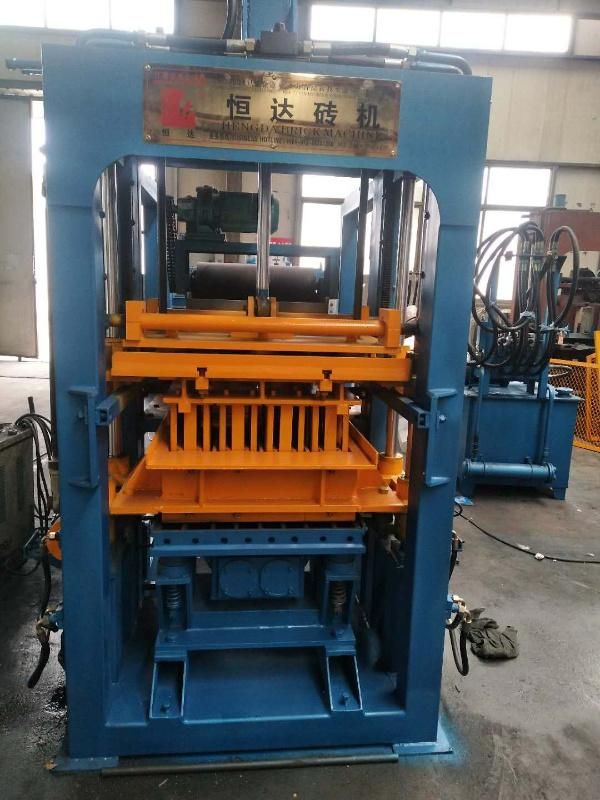

QT4-15

Technical data:

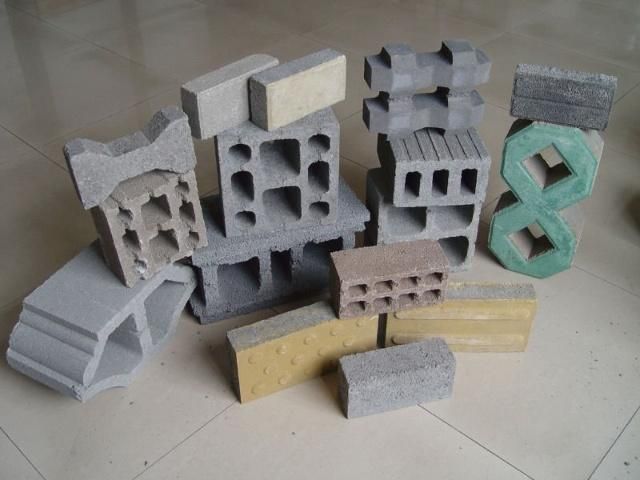

1) Size and output of major products:
A) Hollow block:390*190*190 mm, 4PCS/mould
B) Perforated brick: 240 x 115 x 90mm, 12PCS/mould
C) Paving stone: 200 x 100 x (50 - 100)mm, 17PCS/mould

2) Pallet size:850x 560mm
3) Cycle time: 15 - 25 seconds
4) Type of major vibration: Table vibration
5) Vibration frequency: 2800 - 4500 r/min.
6) Total power: 32.5kW
7) Rating pressure: 21Mpa
8) Profile size (including pallet delivering device and green block
Delivering device): 6600 x 2090 x 3000mm
9) Weight: 8T

Operation and Precautions of QT4-15  hollow block and interlock machine :
1. Storage hopper, when influenced by cement, is easy to condense into blocks. So use the new material as much as possible, and it's not a good idea to store the material too long,
2. Pay attention to feeding. There shouldn't be large aggregate or foreign objects whose diameters are more than 2 centimeters in the mixture, especially solid objects such as iron, which are easy to damage parts of the hydraulic block making machine.
3. Check whether the pallets are clean. If there are bonded pieces, remove them before you put the pallets into the store.
4. Strictly control the time of vibration. Adjust the amount of supply if necessary. From time to time pay attention to that whether the limit of every procedure is normal or whether the screws are loosened. If unexpected things happen, stop the hydraulic block making machine promptly and adjust it in time.
5. Clean the oil filter regularly, at least once a year. Check the actual amount of oil tank, add some if necessary.
6. Update all vibrating springs periodically.

2. Maintenance and Repair:
1. Check carefully and make sure that there is no loose fastener. Lubricate the parts according to the requirements.
2. Check the size of pallet. Abandon the ineligible ones, or theblock making machine will be jammed and damaged.
3. Remove the residue and clean the box, pressure head and other parts of the machine each time.
