• Model NO.：qt12-15
• Raw Material：Concrete,Cement,Flyash,Sand and So on
• Vibration Frequency：2800-4500 ( R,Min)
• Color：According to Your Needs
• Weight：10t
• Molding Cycle：15s
• Vibration Type：Platform Vibration
• Pallet Size：1100X900mm
• Hydraulic：Yes
• Transport Package：Nude Packages According to Your Needs
• Specification：19200-26880pcs,8 hours
• Trademark：shiyue
• Origin：Shandong China
• HS Code：8474802000
• Production Capacity：5000sets,Year

Main Technical Specifications

Dimension

9350*2320*2950mm

Rated pressure

21MPa

Main vibration

platform

Vibration frequency

2800-4500r /min

Pallet Size

1100*900mm

Molding Cycle

15-25(s)

Overall Power

44.58kw

Raw Materials

crushed stone, sand, cement, dust and coal fly ash, cinder, slag,

gangue, gravel, perlite, and other industrial wastes.

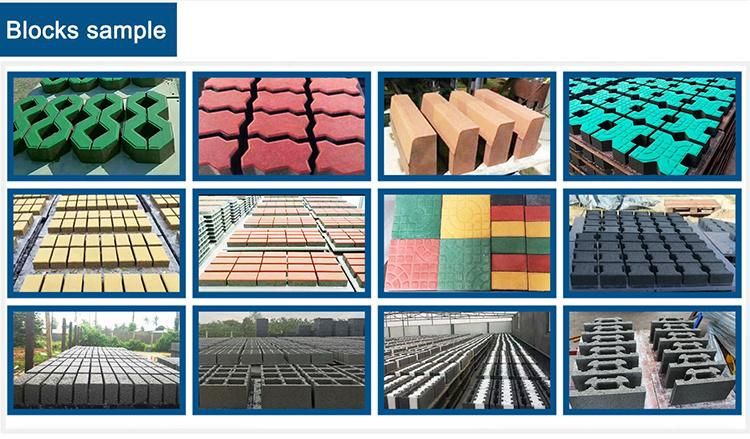

Applied Products

concrete blocks, solid/hollow/cellular masonry products, paving

stones with or without face mix, garden and landscaping products,

 slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking

blocks, etc.

Applied Fields

widely used in buildings, road pavers, squares, gardens, landscaping

, city constructions, etc.

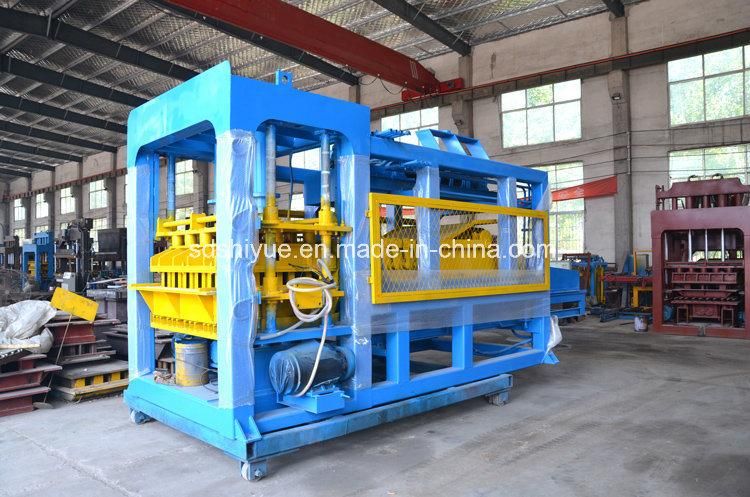

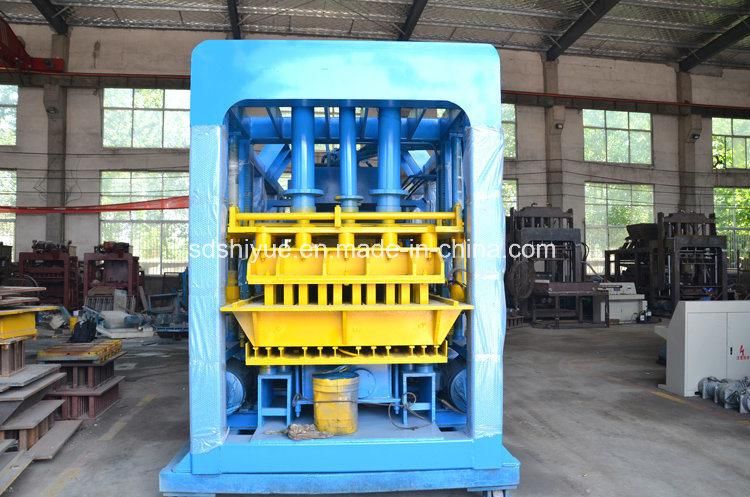

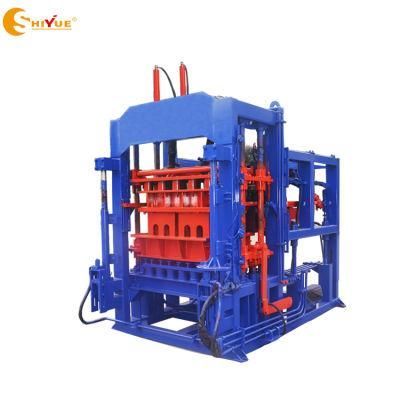

Machine photos

Productivity

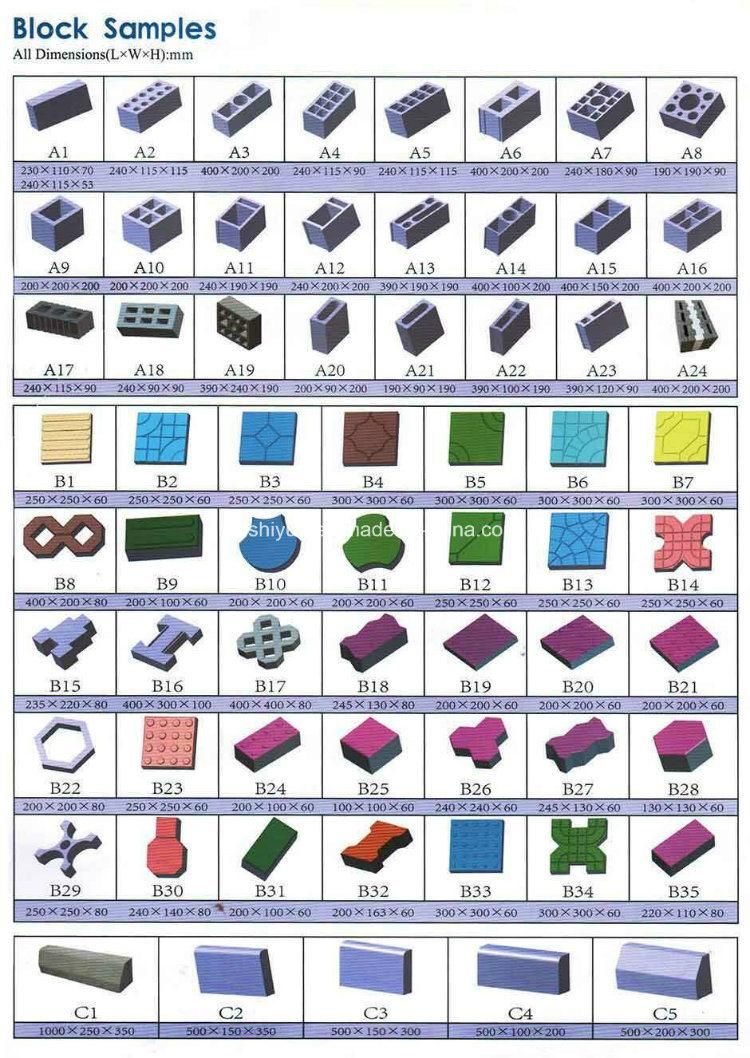

the machine can make many kinds of blocks only by changing the molds

Item

Specification size

Quantity

 per mold

Cycle mouding

Per hour

Per day

Hollow

brick

400*200*200

12pcs

20-25s

2800pcs

22400pcs/day

Porous

brick

240*115*90

27pcs

15-20s

6000pcs

48000pcs/day

Standard brick

240*115*53

62pcs

15-17s

14000pcs

112000pcs/day

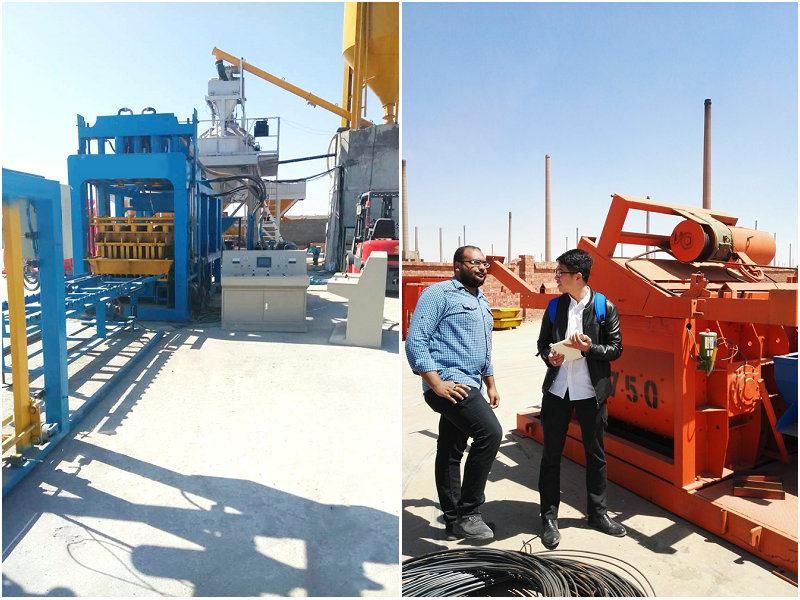

Customer worksite

FAQ

1. Q: What is the molds sizes ? i want to make a special one

    A: It is noproblem ,All kinds of mould can be made by customer's drawings

2.Q: How is about the payment terms ?

   A: It is usually T/T 30% down payment, 70% upon machinery completion, we can also do other payment terms

3. Q:When will your side delivery the machine for me ?

    A: The machine usually be shipped within 20days after the deposit,and it also depends on the other conditions

4. Q:How is about the package ?

    A: Nude packing,or according to your needs

5. Q: How is about the warranty ?

   A: All the machine enjoys one year's warranty, in this period , any problems or partsof the machine, please feel free to contact us . We will try our best to make it .
