Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine

Qingdao HF Machinery Co., Ltd.
  • Certification：CE, ISO
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Hydroforming
  • Pallet Size：1100*550mm
  • Power：26.5kw

Base Info

  • Model NO.：QT5-15 block machine
  • Weight：5500kg
  • Cycle Time：15s
  • Rated Pressure：16MPa
  • Factory Area：1500m2
  • Color：Optional
  • Warranty：1 Year
  • Productivity：7200-9600 Pieces,8hour
  • Automatic：Yes
  • Transport Package：Container
  • Specification：5120*1950*2810mm
  • Trademark：HF
  • Origin：Shandong, China
  • HS Code：8474802000
  • Production Capacity：400*200*200mm Block 7200-9600 Pieces,8hour

Description


Main Technical SpecificationsModelQT5-15
 Rated Pressure16Mpa
 Dimension2150*1950*2810mm
 Cycle Time15-20s
 Vibration formPlatform vibration
 Weight5500kg
 Power26.5KW
 Raw Materials
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
 Pallet size900x680mm

Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine

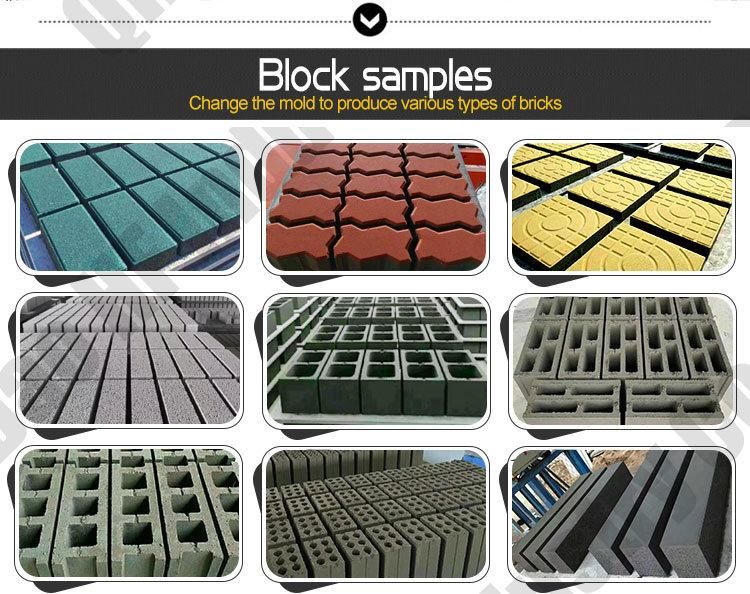

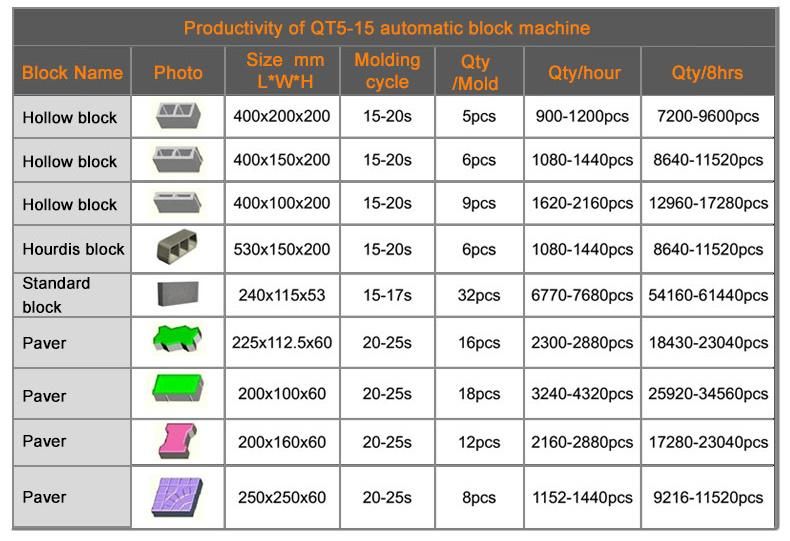

                                                                                                                                                                                              Block Capacity

Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine
Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine

Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine
Model Qt5-15 Hydraulic Concrete Brick Making Machine Block Machine
