Single Head Aluminum UPVC Profile End Milling Machine for Window and Door

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Automatic
  • CNC or Not:not CNC
  • Voltage:380V
  • Model:Lxd-200

Base Info

  • Model NO.:LXD-200
  • Input Voltage:380V 50Hz
  • Input Power:1.5kw
  • Air Pressure:0.4~0.6MPa
  • Air Consumption:100L,Min
  • Motor Rotation Speed:2800r,Min
  • Max Processing Hole:200*42.5*75mm
  • Milling Cutter Diameter:115~200mm
  • Overall Dimension:880*830*1390mm
  • Transport Package:Wooden Case
  • Specification:2300*1200*1700mm
  • Trademark:YueFeng
  • Origin:Jinan, China
  • HS Code:8477800000
  • Production Capacity:30set,Month

Description

Basic Info.

Model NO. LXD-200 Input Voltage 380V 50Hz Input Power 1.5kw Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Motor Rotation Speed 2800r/Min Max Processing Hole 200*42.5*75mm Milling Cutter Diameter 115~200mm Overall Dimension 880*830*1390mm Transport Package Wooden Case Specification 2300*1200*1700mm Trademark YueFeng Origin Jinan, China HS Code 8477800000 Production Capacity 30set/Month

Product Description

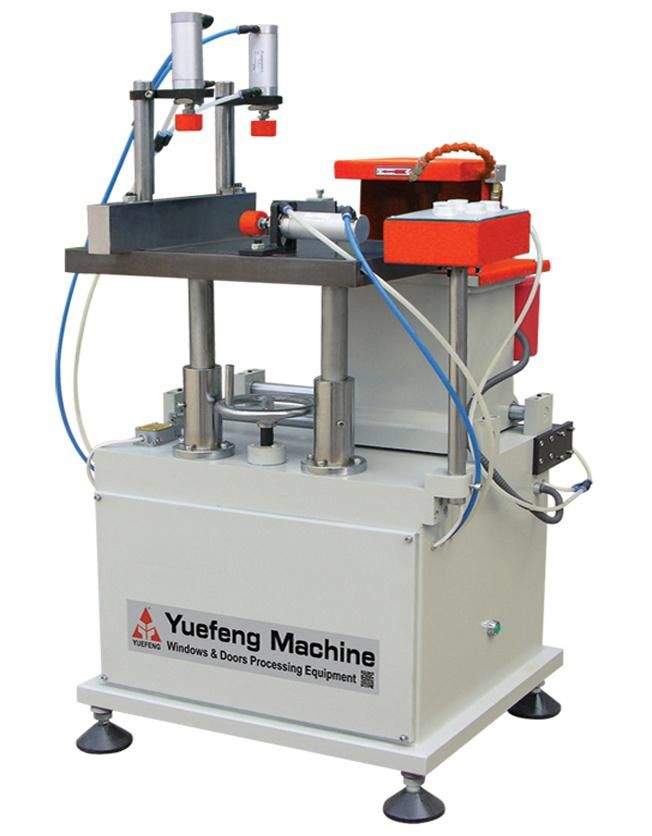

LXD-200    End Milling MachineSingle Head Aluminum UPVC Profile End Milling Machine for Window and Door

Feature

1.Used for processing various profiles' end.

2.Worktable can adjust vertically to make it suitable for different profiles.

Technical Parameter:


ModelLXD-200
Input voltage380V 50Hz
Input power1.5kw
Air pressure0.4~0.6MPa
Air consumption100L/min
Motor rotation speed2800r/min
Milling angle-65°~ +65°
Max milling range200×42.5×75mm
Milling cutter diameterφ115~200mm
Overall dimension880×830×1390mm
