• Model NO.：ZM10325
• Input Power：16.5kw
• Air Pressure：0.5-0.8MPa
• Min. Processing Glass Size：100*100mm
• Working Pressure：32MPa
• Transfer Speed：0.8-4m,Min
• Machine Dimension：6800*1000*2500mm
• Weight：3200kg
• Glass Thickness：3-25mm
• Grinding Angle：45-90 Degree
• Transport Package：Standard
• Specification：ZM10325
• Trademark：Truepro
• Origin：China
• HS Code：846490
• Production Capacity：200 Sets,Year

Basic Info.

Model NO. ZM10325 Input Power 16.5kw Air Pressure 0.5-0.8MPa Min. Processing Glass Size 100*100mm Working Pressure 32MPa Transfer Speed 0.8-4m/Min Machine Dimension 6800*1000*2500mm Weight 3200kg Glass Thickness 3-25mm Grinding Angle 45-90 Degree Transport Package Standard Specification ZM10325 Trademark Truepro Origin China HS Code 846490 Production Capacity 200 Sets/Year

Product Description

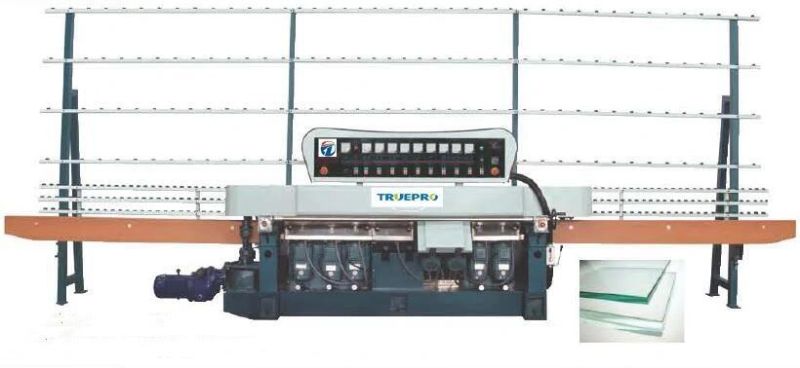

          High efficiency flat glass straight line edging machine with PLC
Machine feature:
The ZM10325 series glass straight line edging machine is suitable for different size and thickness flat glass grinding,
it can rough grinding, fine grinding and polishing finish in one time; the polishing flat is similar to the smooth degree
of glass body, While adjusting the different processing thickness, (you can reference the digital display in front beam to
adjust); front chamfer motor can move synchronically with front beam; with advanced structure; high precision, easy
operation. It is the necessary machine if processing tempering glass.
Parameter:

Model	ZM10325
Voltage	380v
Power(W)	16.5kw
Glass thickness	3-25mm
Min. grinding size	100*100mm
Working speed	0.8-4m/min
Grinding angle	45-90 degree
Grinding wheel number	10
Dimension	6800*1000*2500mm
Weight	3200kg

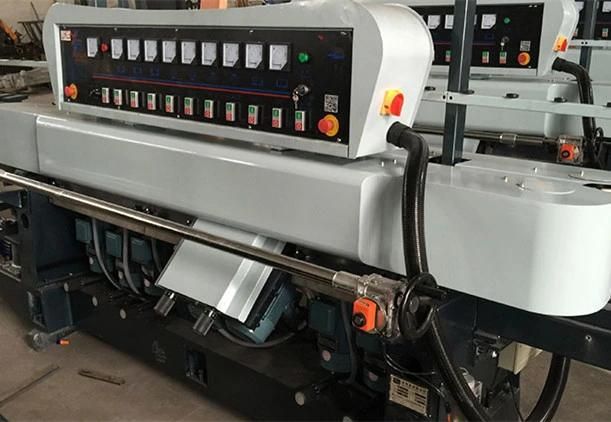

Machine details:





Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

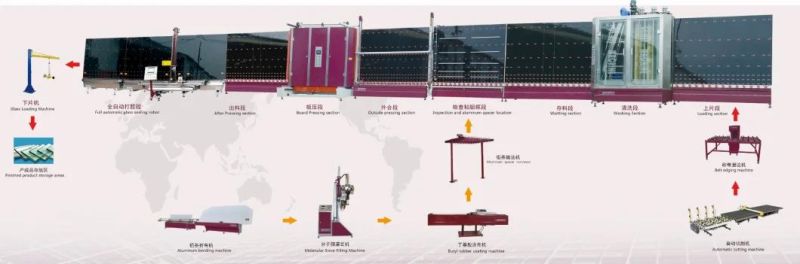

4. Insulating glass production line
