• Model NO.：qtj4-25
• Capacity：7680(Per Day)
• Pallet Size：900X550mm
• Transport Package：Nude or Wooden Package
• Specification：1350x1460x1800mm
• Trademark：Shiyue
• Origin：Shandong, China
• HS Code：8501109990
• Production Capacity：9000PCS

QTJ4-25 Main Product Parameters

Overall Dimension

6400*1500*2700mm

Rated Pressure

21Mpa

Main Vibration Form

Platform vibration

Vibration Frequency

2800~4500r/min

Pallet Size

850*480*25 mm

Molding Cycle

25s

Total Mass

3.5T

Demolding Method

Mechanical

Vibration Force

60KN

Overall Power

16.58KW

QTJ4-25 Production Capacity

Item

Size (mm)

Quantity/mould

Cycle molding

Per hour

Per day  (10 h )

Hollow brick

400*200*200

4pcs

24-26s

580pcs

5800pcs

Porous brick

240*115*90

9pcs

22-25s

1400pcs

14000pcs

Standard brick

240*115*53

21pcs

22-25s

3300pcs

33000pcs

Performance Advantages

1.The novel and sturdy main structure + the subversion of the static column of the traditional block machine (moving shaft mechanism).

2. Dynamic and static stage + frequency conversion technology, motor drive, frequency conversion control, it can make the vibration acceleration up to 20G, material forming speed is fast, static table stop device makes the vibrator excitation force free to play, not inhibited.

3.Powerful + free property four-vibration technology, the excitation force is evenly distributed, ensuring that the products are highly consistent, and the forming speed can meet the needs of different molds and products.

4.Powerful sync frame, forcing synchronous gear shaft.

5. It is possible to change the wear-resistant plate of the cloth platform for easy maintenance. The 360-degree rotation of the press-in type arching device ensures that the mold cavity fabric is quickly and consistently.

OR 180-degree swing type , better to adapt to the environment , and it can protect the cloth teeth if big size raw materials get into feeding machine .

6.Vibration table, flexible head damping + mold box adjustable pressure airbag damping, reducing working noise, adjustable shock absorption effect, and improved service life.

7. One machine is multi-purpose, adaptable, and different molds can be used to produce wall blocks of various shapes and specifications, perforated bricks, pavement bricks and slope protection bricks.

Frequency Converting Control Technology

All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

Vibration System
Dynamic table and static vibrating table structure can ensure the amplitude of the vibration table and ensure the high quality of concrete products. Main vibration adopt low frequency standby, high frequency operation which improve the speed of operation and product quality.

 Feeding System
Adopt two feeding shaft system which can guarantee the material feeder can running much smoothly and feeding material much equably.

 Siemens Motor / Chinese Famous Motor Brand and PLC
Adopt Siemens making brand motor/Chinese Famous Motor Brand and PLC which can guarantee.

Frequency Converting Control Technology
All the motors we adopt frequency converting technology which can improve the life of the motor and save about 20% power.

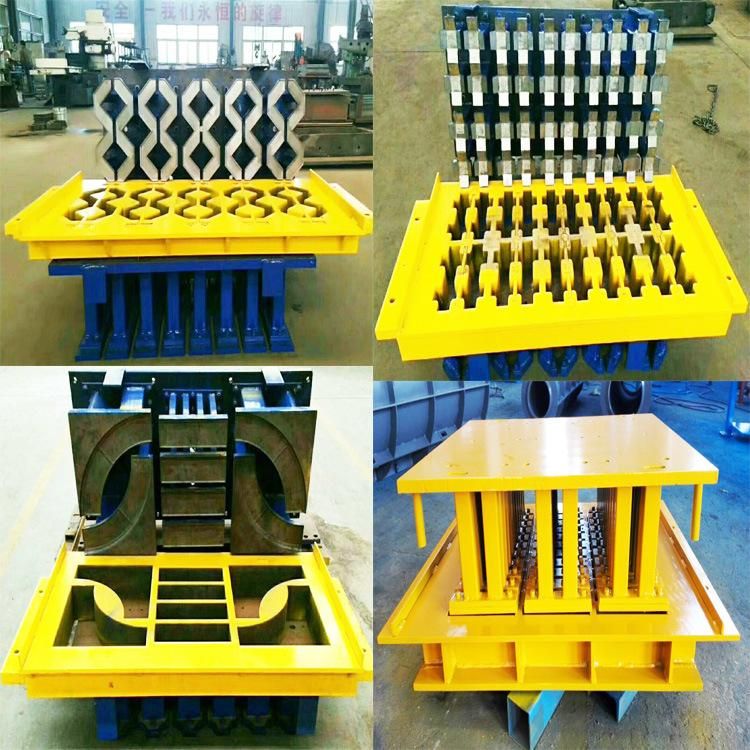

Block Moulds

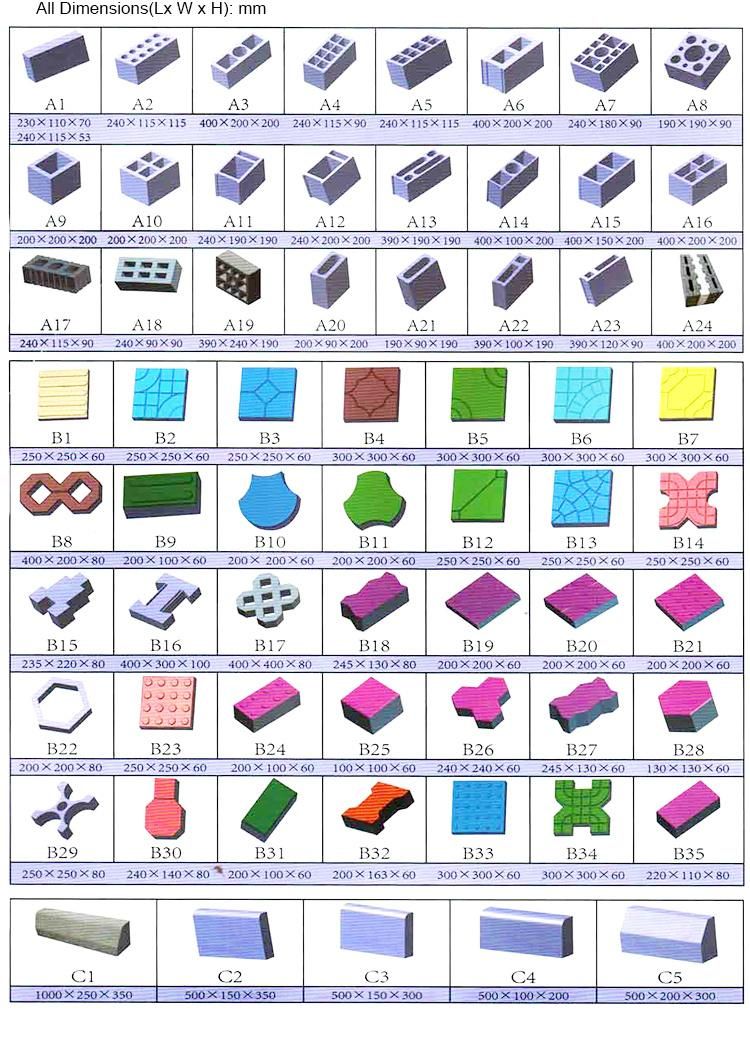

BLOCK  SAMPLES

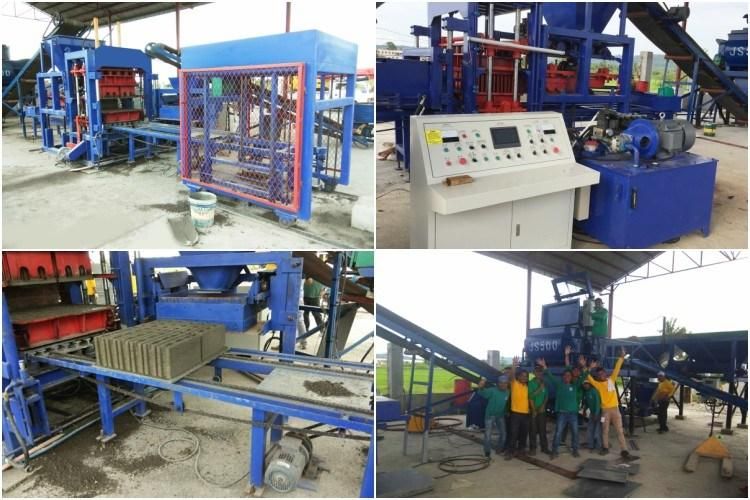

Our Client's Working Site



COMAPANY  INFORMATION

Linyi Youju Import & Export Co., Ltd. founded in 1990. We are located in Linyi, Shandong Province, one of the biggest building machine manufacturing industrial zone in China, which is one of the earliest enterprises in China to manufacture block machinery and construction machinery. We have three workshops and covers an area of 436 acres, plant construction area of 86,000 square meters.

Our products have passed the CE and ISO9001 quality system certification and so on. We have export to more than 100 countries and regions, such as Algeria, Ghana, India, Iraq, Russia, Libya, Nigeria, Oman, Philippines, South Africa, Zambia, etc.

We focus on the international market mainly producing stationary block machine, including hydraulic block machine QT12-15, QT10-15, QT8-15, QT6-15, QT4-15, QT4-20, medium and small scale mechanical block machine QTJ4-25, QTJ4-26, QTJ4-35, QTJ4-40;

mobile block machine QMY12-15, QMY10-15, QMY6-25, QMY4-30 etc, clay block machine LY1-10, LY1-20, LY1-25, Eco brava, Eco BRB, Eco2700, Eco7000, M7MI etc, concrete mixing plant, mould and brick machine spare parts.

We have been committed to the concept of high quality, top technology. We do our utmost to satisfy customers' needs, make our products win initiative in fierce market by developing the core technology via high quality perfect management and quality control system, as well as the first class after-sale service.

We believe YOUJU brand will be your first choice under our effort. Warmly welcome all the new and old customer to our factory.

Promise the best serivce

Inquiry service:

Accept user's enquiries by all kinds of ways and establish user's product cognition. Provide all kinds of product data and let customer understand characteristics of product.

Pre-sale service:

Accept inquiry of customers ,confirmation of investment advice of choice of product ,assist the customers to design the workshop

In-sale service:

Sale of product,help customers build the base ,technical training of customers' workers ,practice of operation ,help to install ,train the operators in the workshop.

After-sale service:

24 hours service of technology inquiry, instant components supply, regularly technical service guidance of maintain,long distance malfunction control.
