• Model NO.：SHZ2-120x3600
• Air Pressure：0.5~0.8MPa
• Air Consumption：200L,Min
• Spindle Speed：3200r,Min
• Cutting Length：400~4200mm(400~5000mm)
• Cutting Width：10~130mm
• Cutting Height：10~300mm
• Cutting Angle：90° 45° 67.5°
• Saw Feeding Speed：0~3m,Min
• Saw Blade Standard：φ500×4.4×φ30×z120
• Overall Dimension：5500(6300)×1700×1600mm
• Transport Package：Plastic Cover or Plywood Cases
• Trademark：YUEFENG
• Origin：Shandong
• HS Code：847780
• Production Capacity：100sets,Month

Basic Info.

Model NO. SHZ2-120x3600 Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Spindle Speed 3200r/Min Cutting Length 400~4200mm(400~5000mm) Cutting Width 10~130mm Cutting Height 10~300mm Cutting Angle 90° 45° 67.5° Saw Feeding Speed 0~3m/Min Saw Blade Standard φ500×4.4×φ30×z120 Overall Dimension 5500(6300)×1700×1600mm Transport Package Plastic Cover or Plywood Cases Trademark YUEFENG Origin Shandong HS Code 847780 Production Capacity 100sets/Month

Product Description

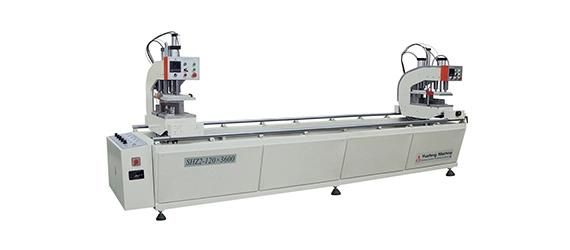

Fabric production welding machine
The machine applies to PVC profiles window and door processing. It can process shapes of  Etc. CM oilless bearing kinematic pair and PLC control system are adopted result high accuracy and efficiency.

Model	SHZ2-120×3600
Input voltage	220V 50Hz
Input power	2.5Kw
Air pressure	0.4~0.6MPa
Air consumption	100L/min
Welding length	400~3500mm
Welding height	20~120mm
Overall dimension	4300×950×1700mm
