• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5*1.3*1M
• Trademark：kexinda
• Origin：China
• Production Capacity：500platform,Year

Basic Info.

Transport Package Main Machine Nude Packing with Plastic Film Specification 5*1.3*1M Trademark kexinda Origin China Production Capacity 500platform/Year

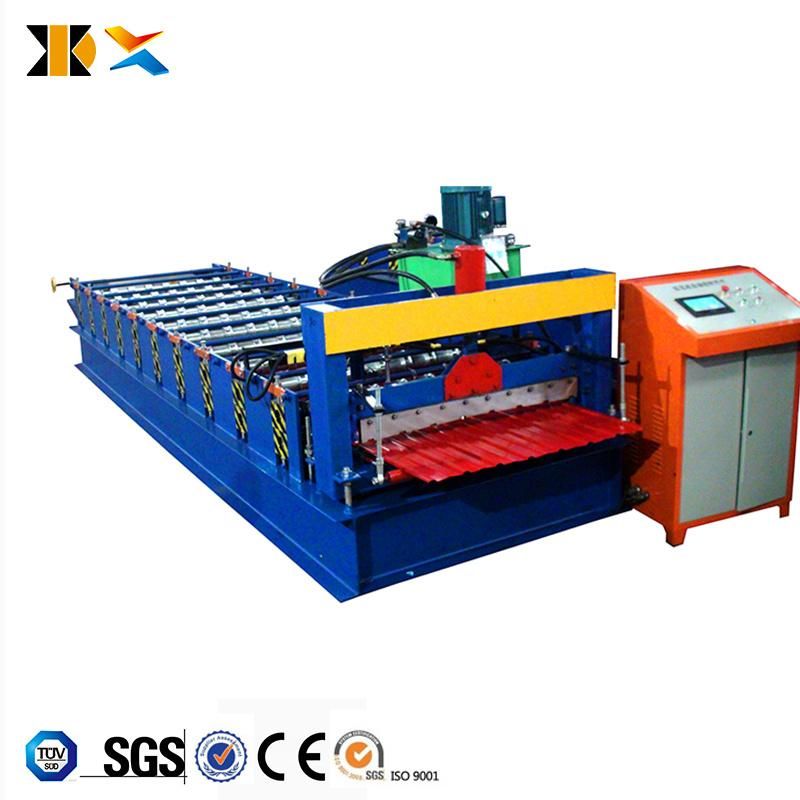

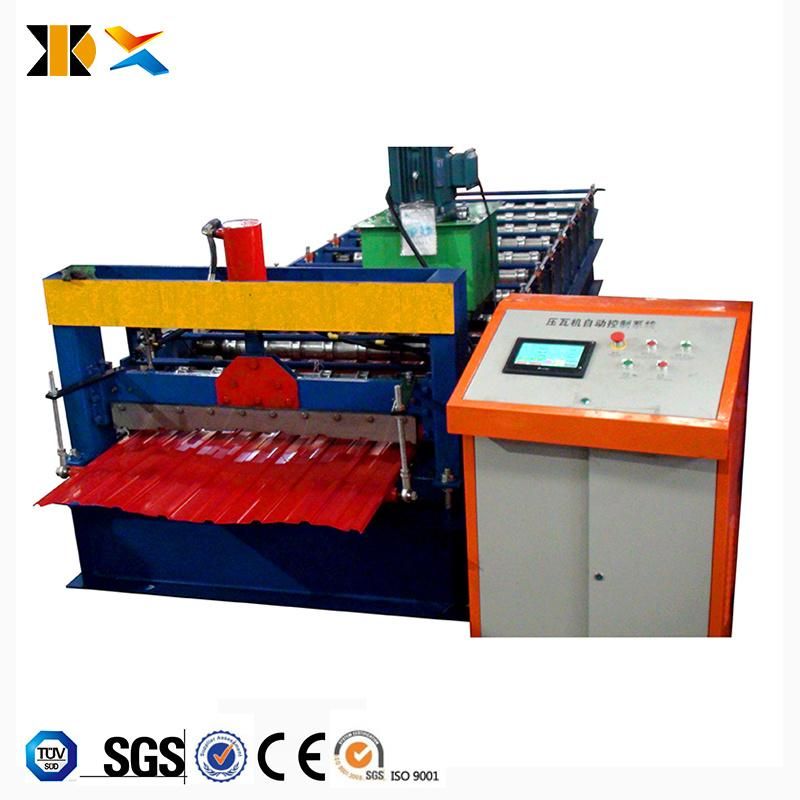

Product Description

1. Adopt synchronous pressure, 9 rows of shaft forming, flat plate surface, no wrinkle, no painting phenomenon.

2. The body is welded with 250mm channel steel, and the middle plate is welded with 12mm steel plate.

3, the shaft USES 45# steel, size of processed shaft body 70mm, die wheel USES 45# steel plus

Hard chrome plated surface.

4. The drive adopts 6-point chain, chain drive (internal hanging type), 4#3kw planetary cycloidal type

Reducer, smooth movement, no noise.

5. Cast steel pull plate is used to connect the middle plate, so as to ensure the machine does not change shape during operation.

6. The transmission bearing adopts high-quality 210 high-speed double-sealed bearing, which is maintenance-free to extend the machine

Operating life.

7. The shearing hydraulic system adopts the cdf-10 gear pump, the motor power is 3kw, the noiseless operation is stable, the service life is long, the shearing adopts the middle plate welding and heavy duty.

8. The computer control system adopts high intelligent industrial electronic programming PLC and frequency converter control system, with simple operation, accurate accuracy, stable performance, length accuracy less than 2mm, plate speed 6-12 m/min, raw material support frame adopts manual adjustment test, easy to operate.

9. suitable for 0.27-0.8mm color coated board or galvanized board.

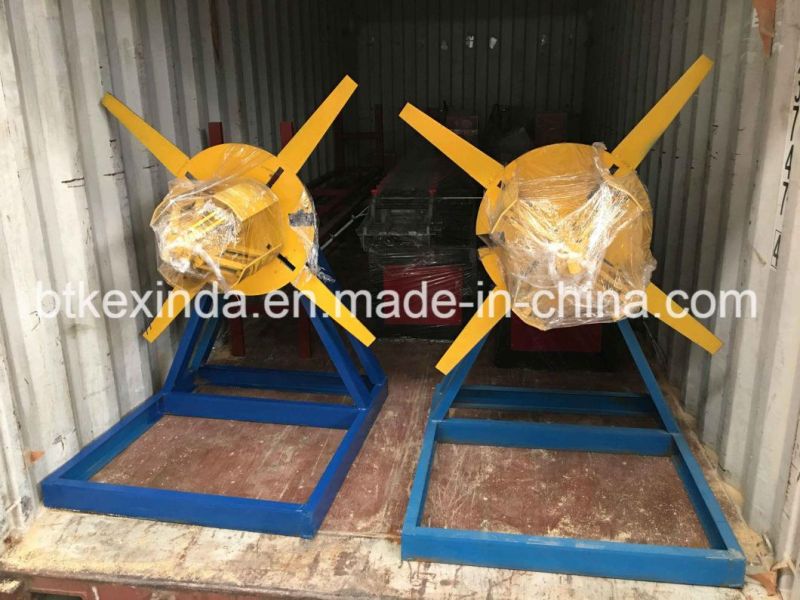

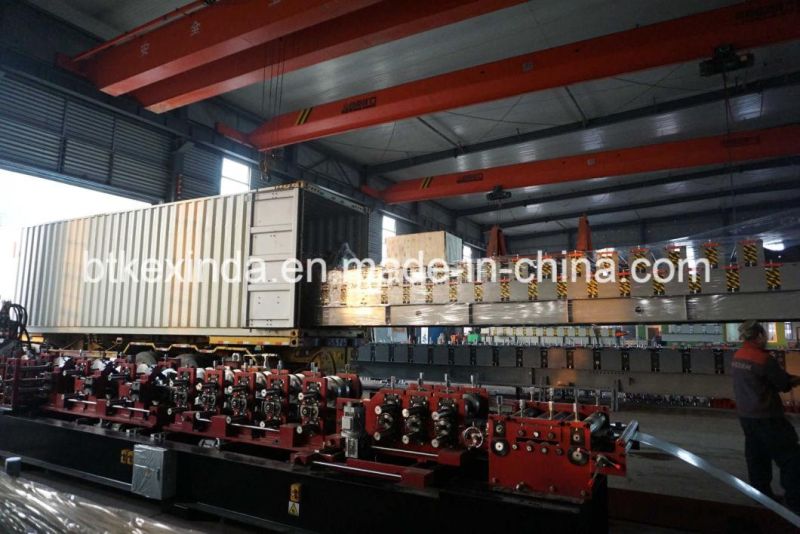

A.Shipping & Packing

B. Company Information



Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.



C. Customer Visit And Exhibition





D FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.


5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.
