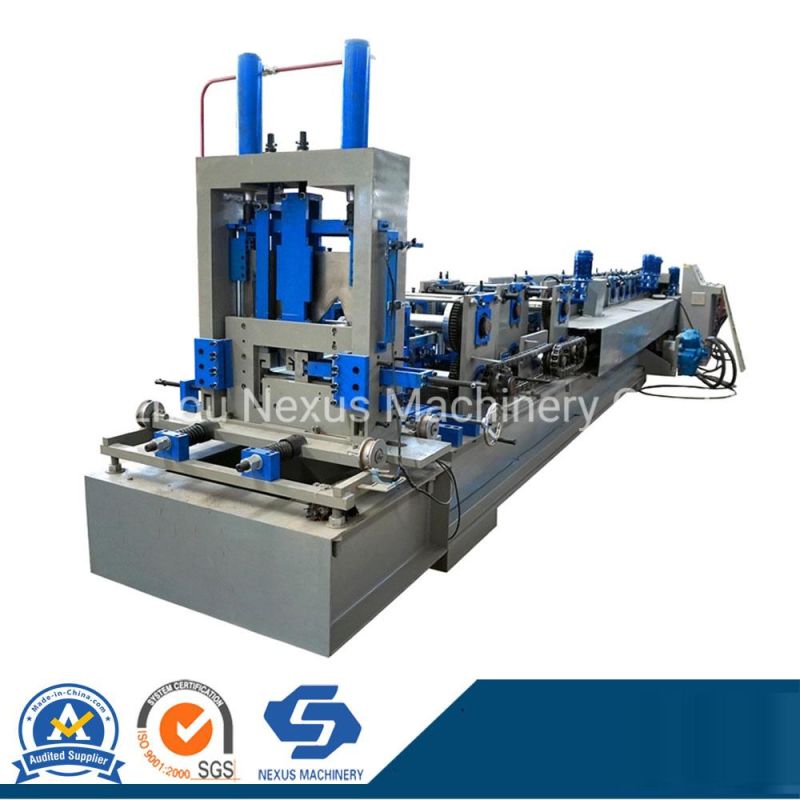

• Product Name：Automatic C Purlin Cold Roll Forming Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

1.

Configurations

Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler,  Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.

2.

Control System

PLC  Inverter  Encoder   Touch Screen

3.

Main Frame

400mm H-Beam

4.

Total Power

22 kw

5.

Power Supply

380V, 3-Phase,50Hz

6.

Forming Speed

12-24m/min

7.

Roll Station

18 stands

8.

Roller Diameter

80mm

9.

Effective Width

80-300mm

10.

Feeding Thickness

1.5-3.0mm

11.

Backboard Thickness

20mm

12.

Cutter Standard

GCr12

13.

Roller Standard

Gcr15#

14.

Overall Size

About 8500×1000×1400mm

15.

Total Weight

About 10T

16.

Custom

According to customer's requirements

NOTE: All technical parameters can be changed according to user s need, and only as a reference.

2.Professional Construction Automatic C Purlin Cold Roll Forming Machine  Components specification

(1) Manual Uncoiler

Max.Capacity:5T

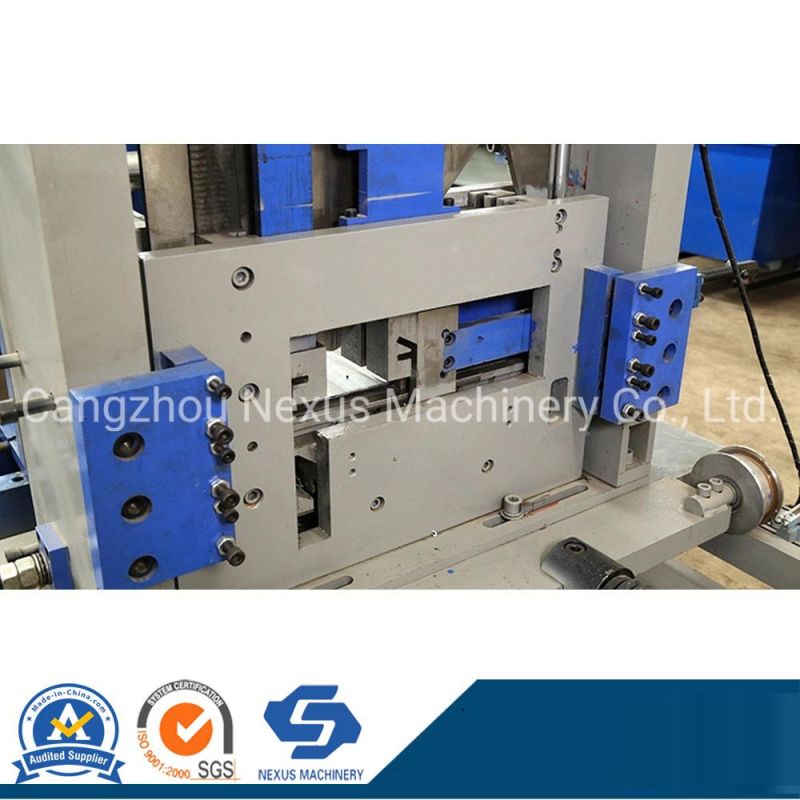

(2)Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C

(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW

(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual

(5)Encoder

The counter gauges length, and modulates pulses.

(6)Simple Stack

It is used for loading the formed plate.

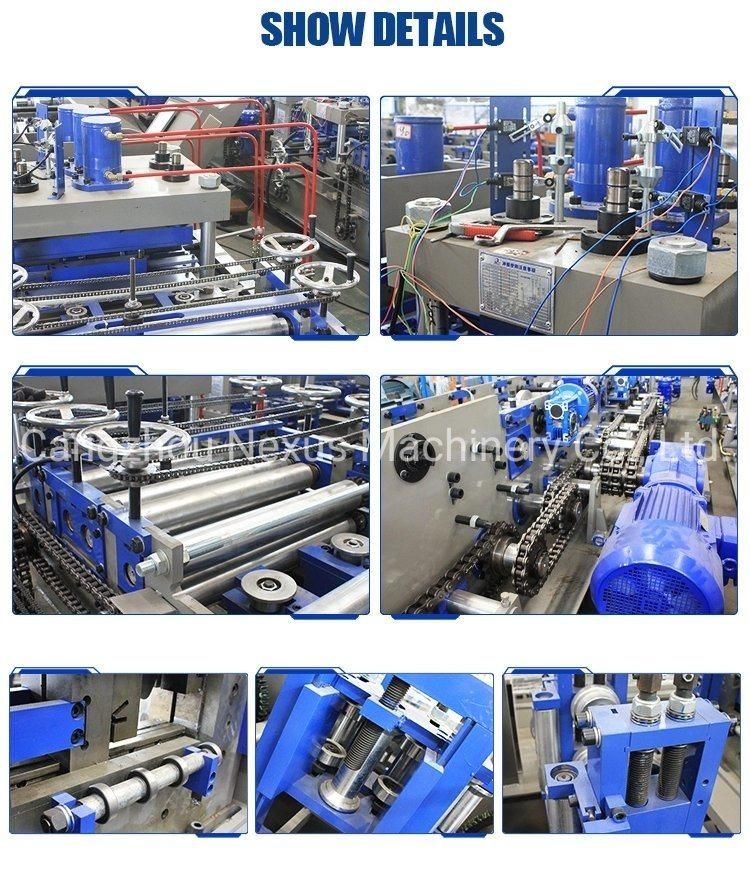

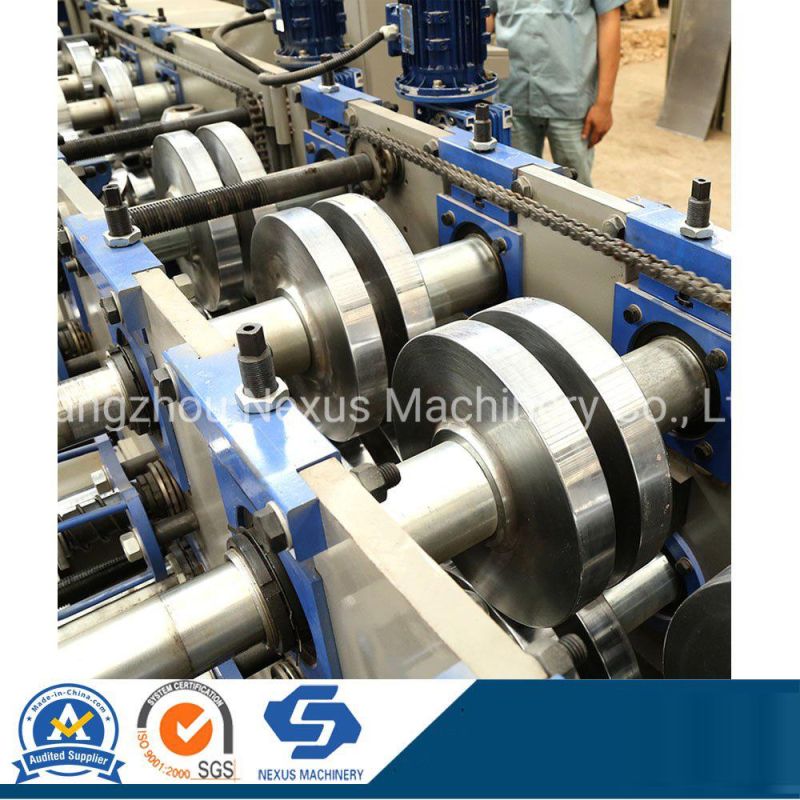

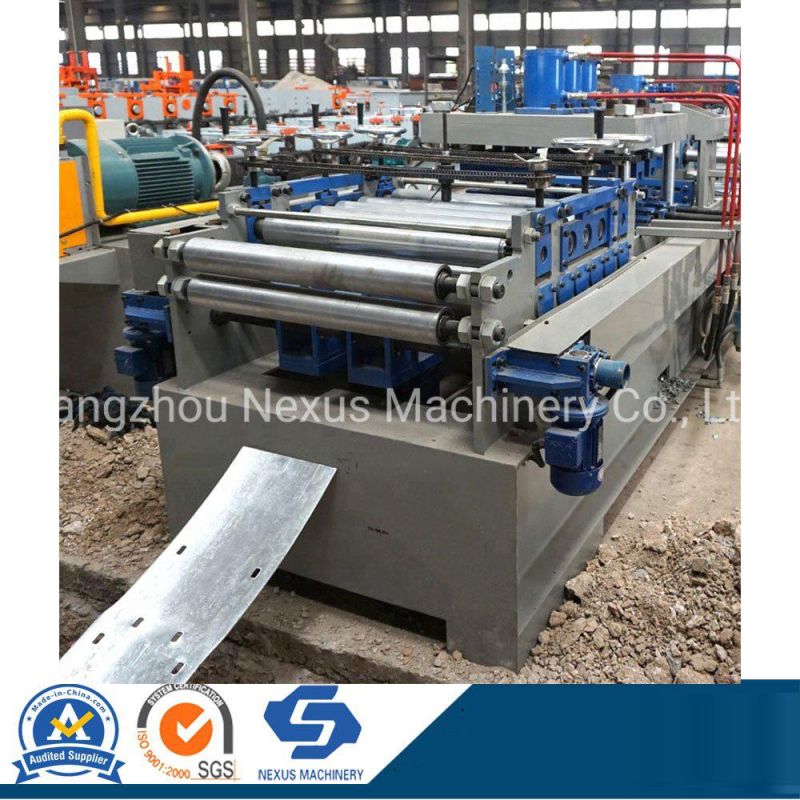

Photo for Easy Operation Metal Steel Frame Profile C Purlin Cold Roll Forming Machine :









Exhibitions Photos:


ABOUT US:
CANGZHOU NEXUS MACHINERY CO., LTD Company is in producing sandwich panel line all kinds of roll forming machines, such as glazed tile roll forming machine, roof/wall panel roll forming machine, double layer roll forming machine, Full-Automatic C and Z Purlin Roll Forming Machine, floor deck roll forming machine, highway guardrail machine, dust shield machine, ridge cap machine, roll shutter door machine, uncoiling & leveling & slitting & recoiling line, all kinds of decoilers and stackers, and many other related equipments like shear, punch, slitter, leveler, crimping curving, bending and so on,different sizes roofing sheet,PPGI/GI ,Alu-Zinc steel coils ,Galvanized steel coils ,Galvanized steel sheet ,Galvalume steel coils/sheet ,cold/hot rolled sheet/cols , professional service and favorable price , satisfied with the quality ,welcome to every customers come to visit and buy ! ! !We will 24 hourse services for you ,please don't hesitate to contact us when you need.


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
