• Condition：New
• Control Type：Electric
• Automatic Grade：Automatic
• Product Name：Mill Type Structural Channel Roll Former Machine
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Roller Station：12-18 Stations
• Driven：Chain Transmission
• Forming Speed：10-15m,Min
• Punching Type：Hydraulic Punching
• Cutting Type：Hydraulic Post-Cutting
• Operation Type：Touching Screen
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

1.

Configurations

Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler,  Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.

2.

Control System

PLC  Inverter  Encoder   Touch Screen

3.

Main Frame

400mm H-Beam

4.

Total Power

22 kw

5.

Power Supply

380V, 3-Phase,50Hz

6.

Forming Speed

12-24m/min

7.

Roll Station

18 stands

8.

Roller Diameter

80mm

9.

Effective Width

80-300mm

10.

Feeding Thickness

1.5-3.0mm

11.

Backboard Thickness

20mm

12.

Cutter Standard

GCr12

13.

Roller Standard

Gcr15#

14.

Overall Size

About 8500×1000×1400mm

15.

Total Weight

About 10T

16.

Custom

According to customer's requirements

NOTE: All technical parameters can be changed according to user s need, and only as a reference.

2.New Condition and Cold Rolling Mill Type Structural Channel Roll Former Machine  Components specification

(1) Manual Uncoiler

Max.Capacity:5T

(2)Pre- Cutting Device& Pre-Punching Device

It adopts hydraulic motor drive and PLC computer-controlled to fix length of die cutting.

Cutting length tolerance:±2mm

Material:GCr12 with quenched treatment 60-62°C

(3)Hydraulic System

Match equipment: Electro motor, a set of hydraulic tank, a set of hydraulic oil pump, and electromagnetic valve.

Power: 22 KW

(4)Control System

It adopts PLC control system, Color Touch Screen; the target length can be adjusted by it.

Computed mode: automatic or manual

(5)Encoder

The counter gauges length, and modulates pulses.

(6)Simple Stack

It is used for loading the formed plate.

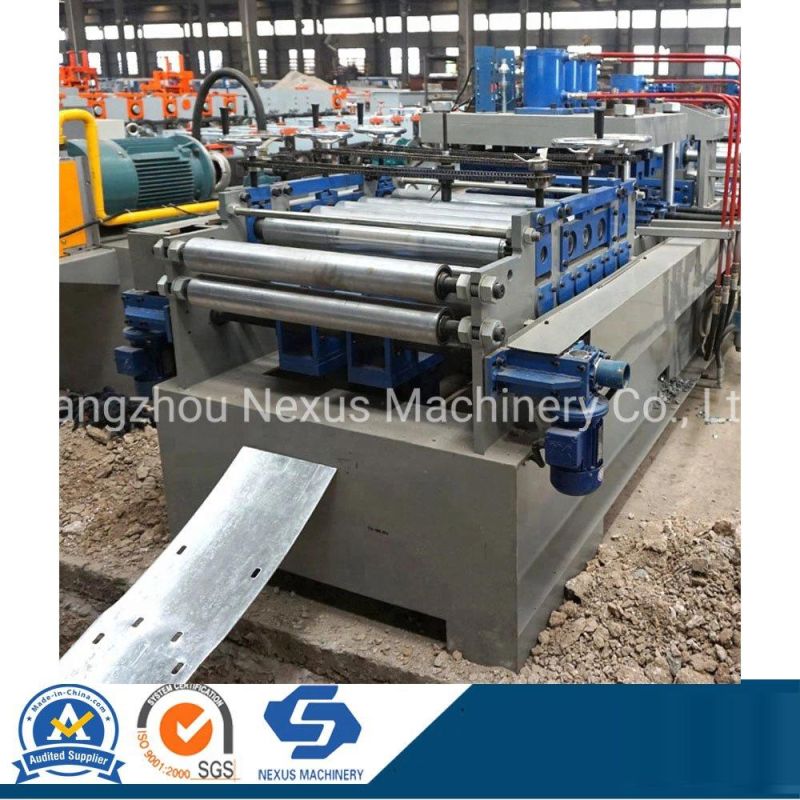

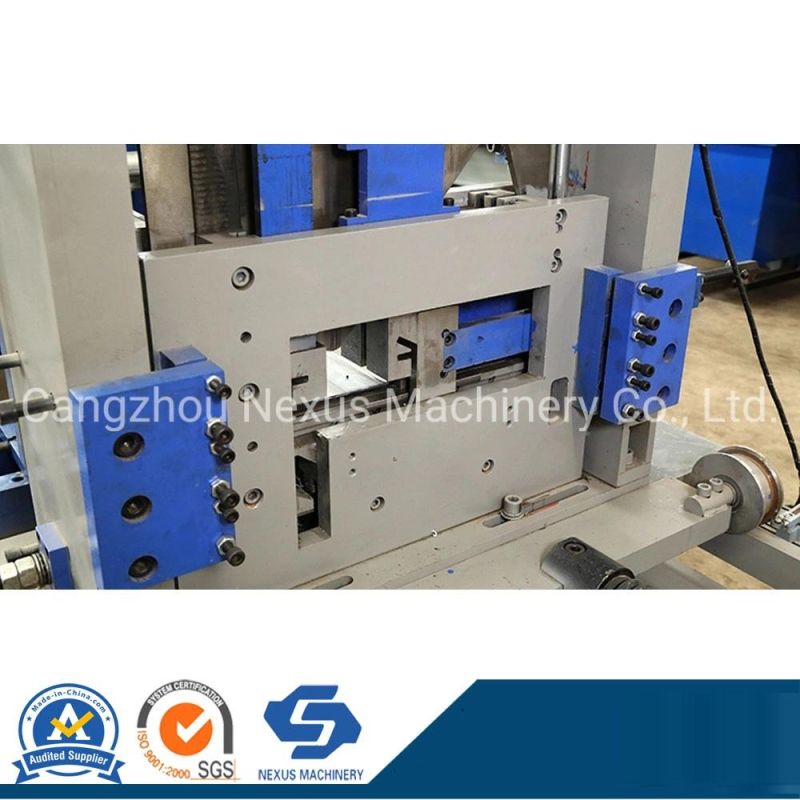

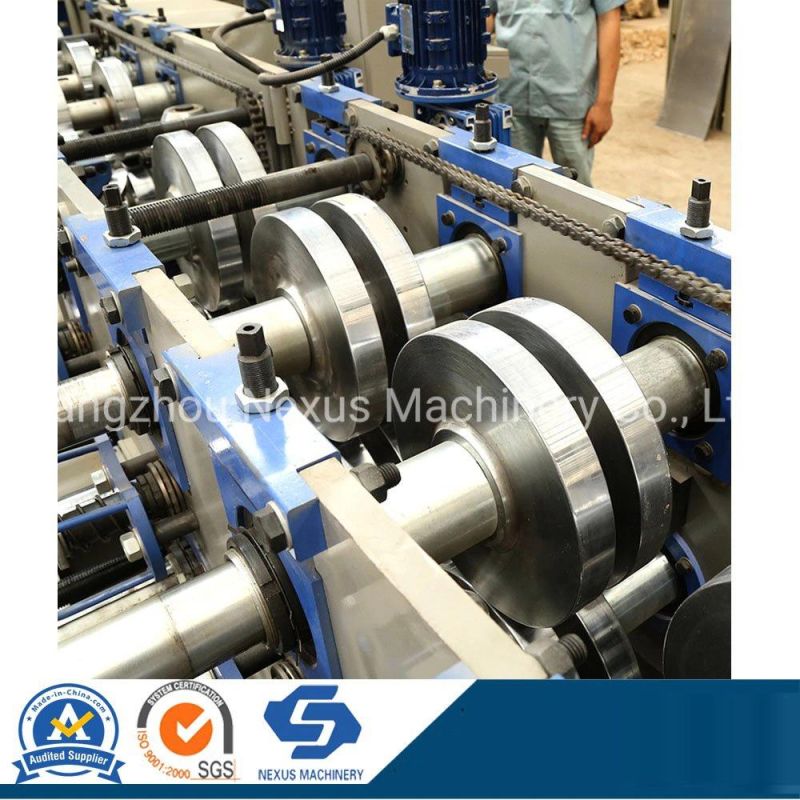

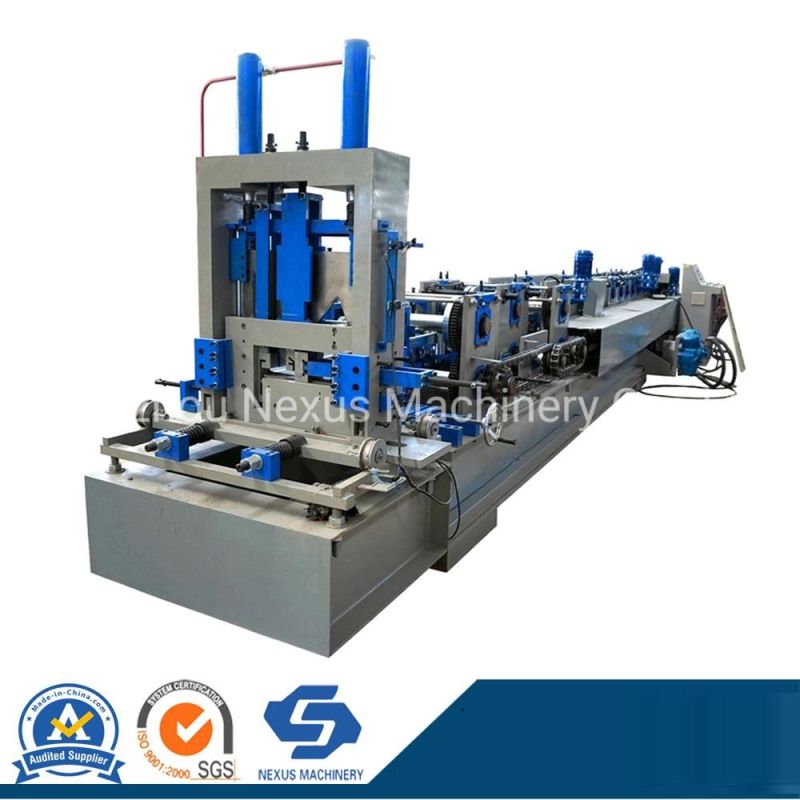

Photo for New Condition and Cold Rolling Mill Type Structural Channel Roll Former Machine :
