Building Material Making Machinery

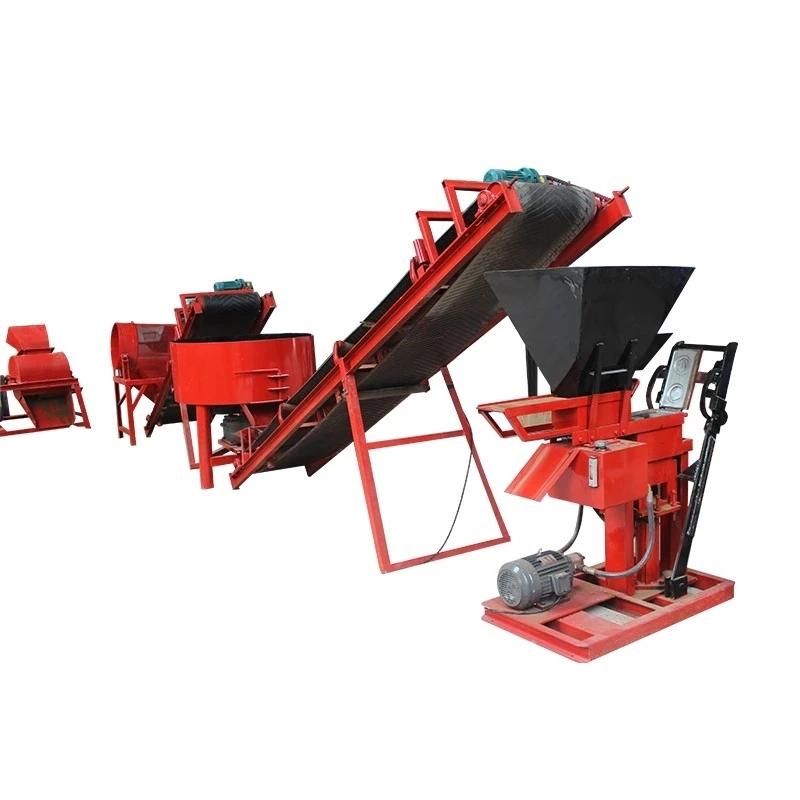

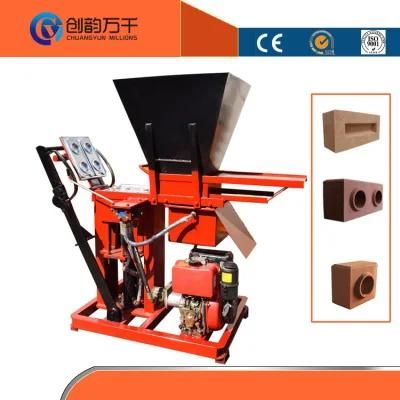

Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine

Linyi Chuangyun Import & Export Co., Ltd.
  • Certification:CE, ISO
  • Customized:Customized
  • Automatic Grade:Semiautomatic
  • Type:Hydroforming
  • Method:Hydraulic Pressure
  • Color:According to Your Need

Base Info

  • Model NO.:Cy2-25
  • Moulding Cycle:20-30s
  • Power:4kw
  • Products:Soil Interlocking Bricks
  • Electric Motor:4kw
  • Diesel Engine:5.5HP
  • Extra Mold:Changing Mold for Different Design of Brick
  • Transport Package:Plywood Box with Iron Angle Frame
  • Origin:China
  • HS Code:8474802000
  • Production Capacity:30sets , Month

Description

Basic Info.

Model NO. Cy2-25 Moulding Cycle 20-30s Power 4kw Products Soil Interlocking Bricks Electric Motor 4kw Diesel Engine 5.5HP Extra Mold Changing Mold for Different Design of Brick Transport Package Plywood Box with Iron Angle Frame Origin China HS Code 8474802000 Production Capacity 30sets / Month

Product Description

Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine

Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine


Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine



Features:
1. ECO BRAVA clay block machine is our newest clay and cement brick making machine. It is manual operation machine, but only need 1 people.

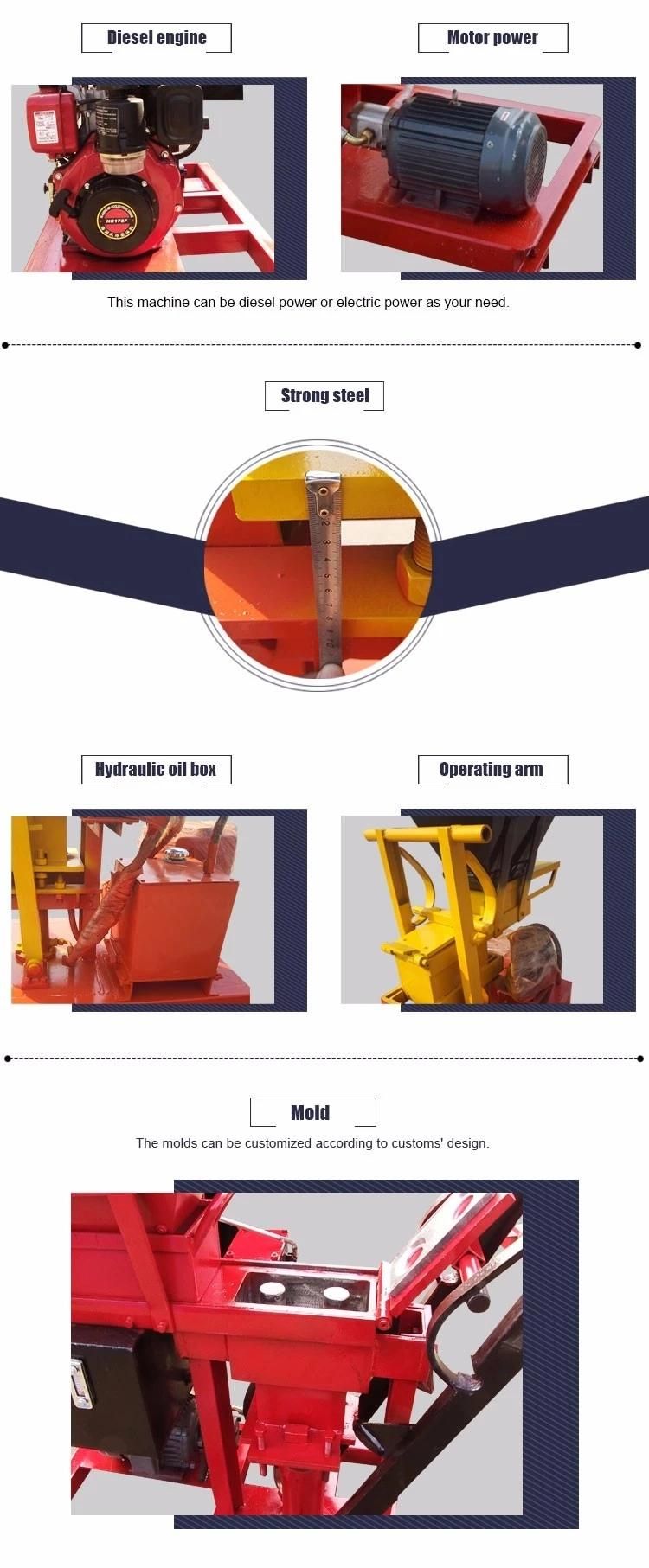

2. You can choose diesel engine or electric motor. This machine enable to produce varied models of blocks, bricks and floors in only one equipment, without the need of buying another machine.
3. Manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified. Compound by modeler wombs interchangeable enabling flexible of different forms and models for the pressed blocks, bricks and floors.


Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine


Technical specifications:
Machine powerElectric or diesel engine
Molding cycle20s
Capacity1400pcs/8hours

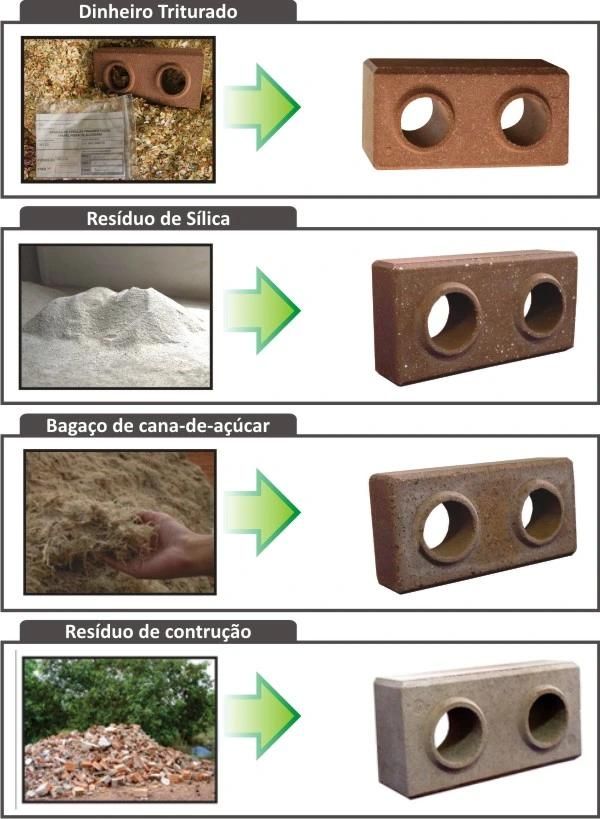

Raw materialclay,soil,earth,mud,concrete, sand,cement, fly ash,etc.
Machine weight500KGS
Overall size1200*800*1750mm
Worker1 people
Hydraulic pressure16 Mpa

Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine

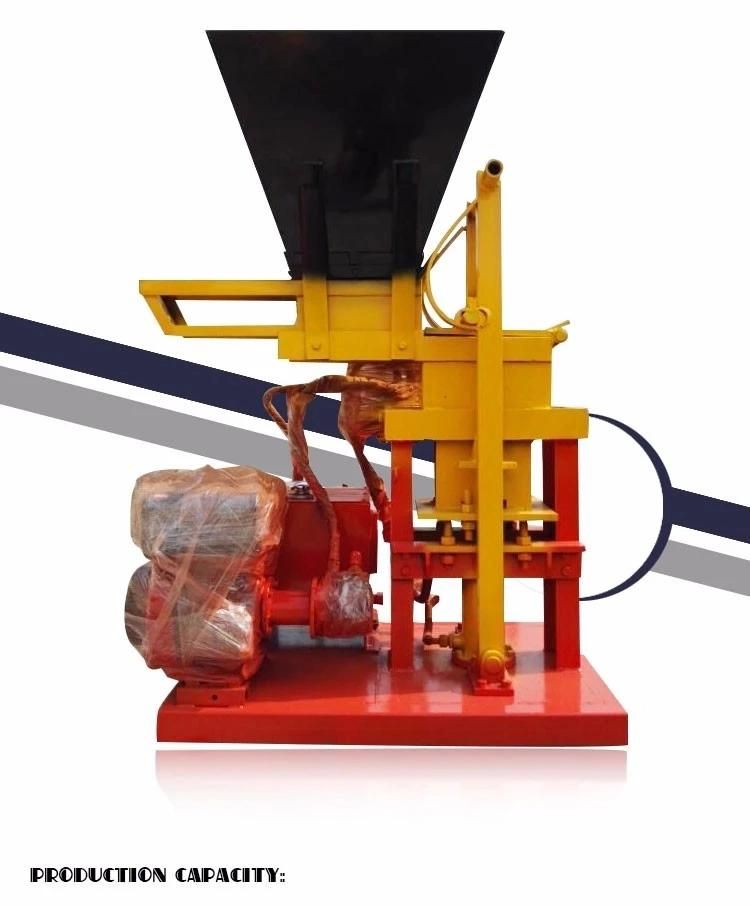

Production capacity
No.Block sizePcs/mouldPcs/hourDaily capacity
1300*150*100mm
      or
250*125*75mm
1180-2001400-1500


 Applied fields: It is widely used in buildings, road paving, squares, gardens, landscaping, city constructions etc.

Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine


Cy2-25 Semi Autocratic Soil Cement Brick Block Making Machine
