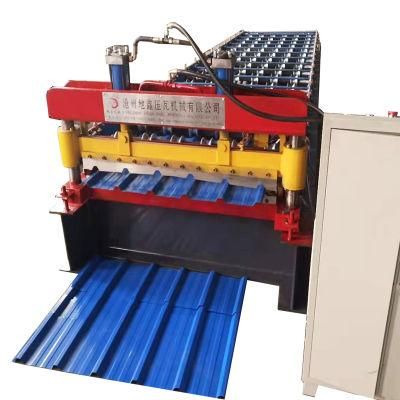

Color Steel PPGI Trapezoidal Metal Roofing Sheet Roll Forming Machine Design Manufacture
Cangzhou Dixin Roll Forming Machine Co., Ltd.- Tile Type:Colored Steel
- Certification:CE, ISO
- Condition:New
- Customized:Customized
- Usage:Roof
- Transmission Method:Hydraulic Pressure
Base Info
- Model NO.:DX 1000
- Name:Roof Sheet Roll Forming Machine
- Hydraulic Pressure:10-12MPa
- Voltage:380V ,3phase, 50 Hz (or as Your Requirement)
- Main Frame:300mm,350mm H-Beam
- Backboard Thickness:16mm
- Productivity:10-15m,Min
- Feeding Thickness:0.18-0.8mm
- Roll Station:13
- Roller Diameter:75mm
- Roller Material:45# Steel
- Cutter Material:Cr12 Mould Steel Heat-Treated Hardness
- Total Weight:3.1t
- Chain Size:1inch,2inch
- Control System:Panasonic ,Siemens , Schneider , Delta PLC
- Cutting Drive:Decelerating Motor
- Transport Package:Nude
- Specification:6800*1500*1200mm
- Trademark:DIXIN
- Origin:Botou, Hebei, China
- HS Code:84552210
- Production Capacity:100 Set,Year
Description
Technical parameters:
1
Cutting & Hydraulic type
Double guide pillar
2
Hydraulic motor power
3kw or 4kw
3
Hydraulic Pressure
10-12MPa
4
Voltage
380V /3phase/ 50 HZ (or as your requirement)
5
Cutting drive
Decelerating motor + Chain drive gear all by
high-frequency
6
Control System
Panasonic /Siemens / Delta PLC
7
Length measurement
Encoder
8
Main Frame
300mm/350mm H-Beam or 350mm
9
Backboard Thickness
17mm/200mm
10
Chain Size
1inch/2inch
11
Feeding Material
As your drawing or from our designer
12
Feeding Thickness
0.18mm-0.8mm
13
Effective width
As your drawing or from our designer
14
Productivity
10-15/min
15
Roll Station
11 rows
16
Roller Diameter
70mm/75mm (depend on different design)
17
Roller material
45# steel
18
Cutter material
Cr12 mould steel heat-treated hardness
of HRC 60-62 degrees
19
Total Weight
3.1 t
20
Package of machine
Waterproofing membrane, standard export packing
Components of production line
No. | Name | Unit | Qty |
1 | 5T Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | Post cut | set | 1 |
6 | Electric motor | set | 1 |
7 | Output table | set | 1 |

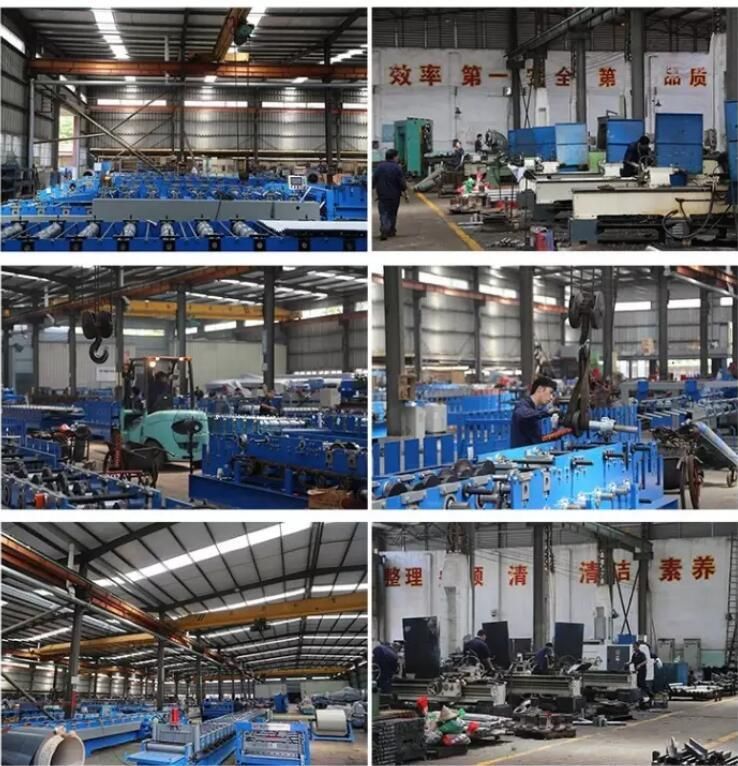

Company Information
Our enterprise, Cangzhou Dixin Roll Forming Machine Co., Ltd, as the professional and leading manufacturer, can manufacture, design, installation and debug various roll forming machines and metal processing sheet equipments, which produce metal roof wall panel, glazed roof tile, CZ steel purlin, floor decking, roof ridge cap, sandwich panel, roof truss, shutter panel, shutter slat, door frame, guardrail, and metal sheet uncoiler, bending, slitting, cutting, flattening, punching, crimping.
Backed by reasonable design, precision machining and selected material, both our standard and customized machines are characterized by long life span, precise forming and easy operation. With our customers` trust, our machines have been sent to America, Australia, Russia, India, Sri Lanka, Nigeria, Pakistan, Uzbekistan, Mozambique, Angola, Turkey, Brazil, etc.
Warmly welcome to China to visit our factory and select the machines you need. Our address, Fuzhuang Industrial Development Zone, Botou City, Hebei Province, China
Our Services
After-sale
we have a detailed instruction manual and video tutorials, or by phone, online technical support for customers. True partnership will not end at the time of delivery, we are convinced that satisfactory after-sales service is very important.
Warranty:
Whole life maintenance,Lifelong technical support;
During 12 months all parts damaged because of quality problem will be changed for free.
