Qt4-20 Full Automatic Hydrulic Machine
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- Function：Block, Brick, Houdis, Paver, Curbstone, Interlock
- Power：23.7kw
Base Info
- Model NO.：QT4-20
- Vibration Force：35.5kn
- Size of Pallet：850*550*20mm
- Number of Worker：5-7 Workers
- Capacity：4000-7000PCS Per Day
- Guarantee：3 Years
- Transport Package：40f Container
- Specification：3700*2100*2300mm
- Trademark：Duyue
- Origin：Linyi City, China
- HS Code：8474802000
- Production Capacity：50 Sets Per Month
Description

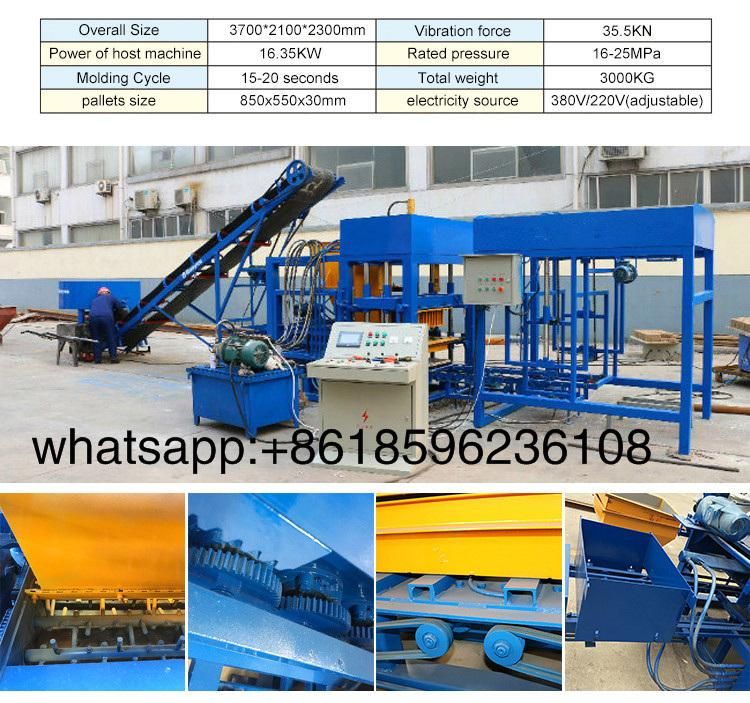

Technical specification of QT4-20 Concrete Brick Machine Overall Size 3700*2100*2300mm Power of host machine 16.35KW Molding Cycle 15-20 seconds pallets size 850x550x30mm vibration force 35.5KN rated pressure 16-25MPa total weight 3000KG electricity source 380V/220V(adjustable) Capacity 500L Productivity 23-28 M3/H Power 7.5KW Weight 420KG Size Φ1500*1300mm
Details of Construction Machinery Qt4-20 Concrete Block Machine Cement Block Machine Price

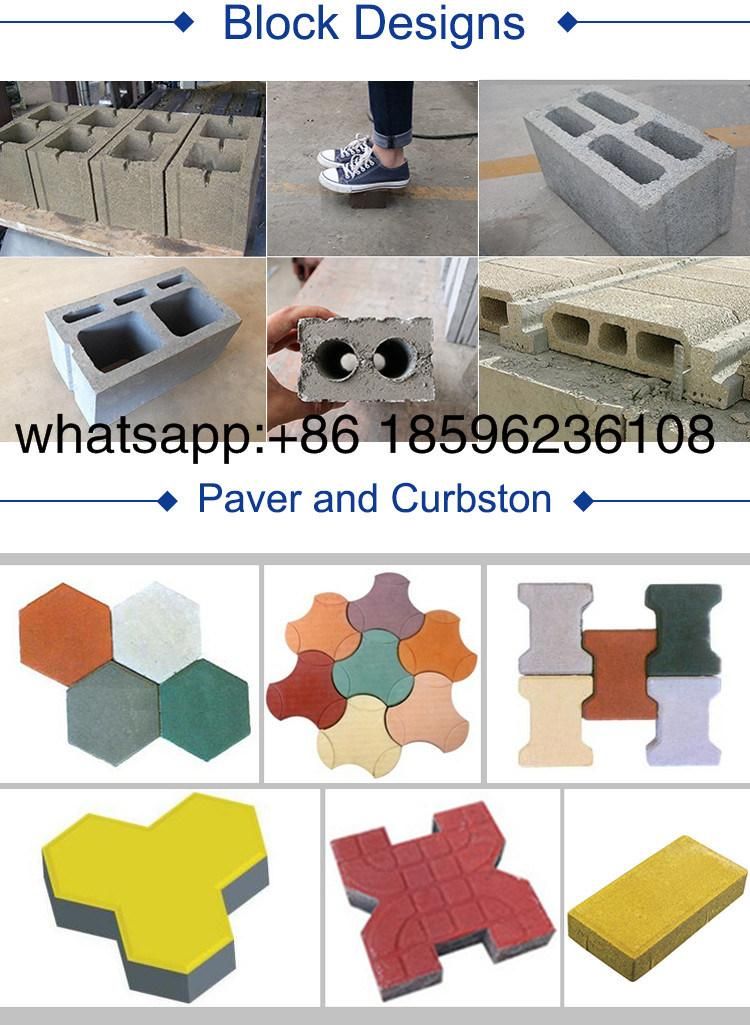

Block capacity and sample
About us
Details of Construction Machinery Qt4-20 Concrete Block Machine Cement Block Machine Price
Block capacity and sample
Theoretical production capacity
| Size | Pcs per Mould | Pcs per Hour |
| 400*200*200mm | 4 | 576 |
| 400*150*200mm | 5 | 720 |
| 400*100*200mm | 7 | 1008 |
| 240*115*53mm | 20 | 2880 |
| 225*112.5*60mm | 20 | 2880 |
| 200*100*60mm | 24 | 3456 |
