Xinnuo Best Price Cable Tray Roll Forming Machine
HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.- After-sales Service：Door to Door
- Warranty：One Year
- Certification：CE, RoHS, ISO9001
- Customized：Customized
- Condition：New
- Control Type：CNC
Base Info
- Automatic Grade：Automatic
- Drive：Electric
- Main Frame：400mm H
- Power：22kw
- Control System：PLC
- Color：by Your Choose
- Product Name：Cable Tray Rolling Machine
- Cetificate：Ce ISO
- Size：100-600
- Transport Package：Container
- Specification：11800*1500*1600mm
- Trademark：Xinnuo
- Origin：Hebei China
- HS Code：8455221000
- Production Capacity：10sets,Month
Description

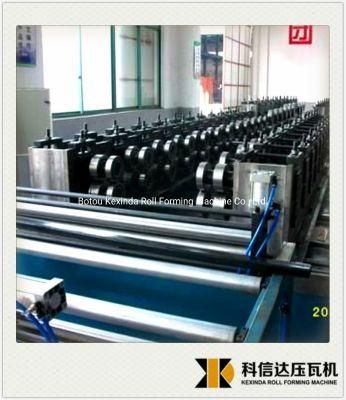

Product Description Main equipment: Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic systerm, electric systerm Techenical parameters: 1Automatic inner tight decoiler A coil inner diameter:450mm-700mm B max width of coiling: 500mm C max loading of cloading:4500kg 2 main forming machine: A number of forming steps:12 or according to customers requirement B material of shaft:45# adjustable treatment. Outer diameter 70mm C material of roller:high grade 45# steel (plated chrome on surface) D main motor power:22kw E forming speed :8-12m/min or according to the customers requirement F stand: 350#steel welding G the plated chrome of roller surface:0.05mm 3 hydraulic cutter: A material of blade:Cr12with quenched treatment B cutting systerm: adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and cut) 4 product warranty: 12 months and we will provide the technical support for the whole life of the equipment. The chart of process flow: A Technical specification (1) Manual decoiler (2) Roll-Forming M/C: (3) Cutting Mechanism (4) Hydraulic System (5)Computer control cabinet : One counter gauges length, pulses, and decides length (7) Output table table Packaging & Shipping FAQ 1:How to play order: Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK 2:How to visit our company: Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you. Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you. If any questions,you can call me mobile phone at any times 3:When we exported the machines: We have beening making and exporting the machines since from the year of 1998. 4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
Decoilingactive feedingroll formingmeasuring lengthcutting to lengthproduct to stand
