• Model NO.：QT10-15
• Power：63.5kw
• Pallet Size：1150X900mm
• Vibration Force：120kn
• Color：Blue or Customized
• Name：Qt10-15 Automatic Concrete Hollow Block Machine
• Transport Package：Container
• Specification：9350x2320x2950mm
• Trademark：HF
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：20000PCS,Day

Basic Info.

Model NO. QT10-15 Power 63.5kw Pallet Size 1150X900mm Vibration Force 120kn Color Blue or Customized Name Qt10-15 Automatic Concrete Hollow Block Machine Transport Package Container Specification 9350x2320x2950mm Trademark HF Origin Shandong, China HS Code 8474802000 Production Capacity 20000PCS/Day

Product Description

 Product Introduction

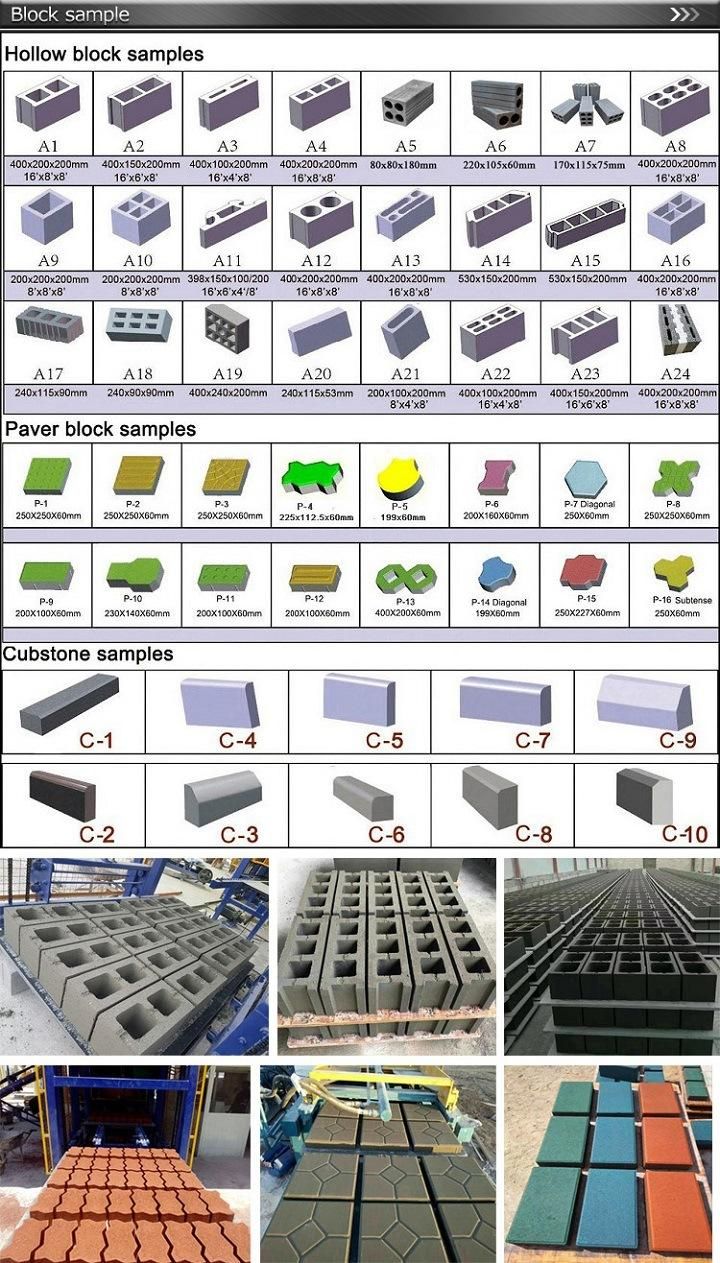

1. QT10-15 Automatic Concrete Hollow Block Machine which is a special-purpose equipment for making building block making machine. The material of this machine can be flyash, slag, gangue or the others industrial waste, river sand, gravel, cement etc. Makes different sizes of hollow blocks, porous blocks, curbstone, pavement blocks, grass blocks, slope-protecting blocks, ring-tree blocks etc. If add color machine, it can make layering blocks.

2. QT10-15 Automatic Concrete Hollow Block Machine adopts gantry frame type structure, made by super super steel,strong and shock resistant,very reliable.The design adopts the driving type material storage mode with independent foundation,to send the material when it is needed at chinablockmachine.en.made-in-china.com wave swing type of material feeding device,with good feeding effect.Cartridge type welding mold,adopts qualified manganese steel by carburizing and quenching.no transformation and no damage after using 100000times.It can make the simple production line with PL1200 batching machine,JS500or JS750 mixer,8m conveyor belt and stacker.

3. This equipment is mechanical hydraulic PLC controlled synthesis technique equipment. Its characteristic is high efficient, easy-operated and easy-maintained. Block molding mainly by hydraulic, machinery as sideline, vibrate and press to finish molding blocks. The compressive strength of all blocks more than 21 MPa, compactness is high, impermeability and freeze resistance is better, and excellent capacity of sound insulation, heat insulation, insulation.external dimensions are precise.

Technicals

Model	QT10-15
Rated pressure	21Mpa
Dimension	9350*2320*2950mm
Forming Cycle	15-20s
Vibration form	Platform vibration
Weight	11000kg
Power	63.5kw
Vibration force	120KN
Working area	2000 sq.m
Pallet size	1150x900mm

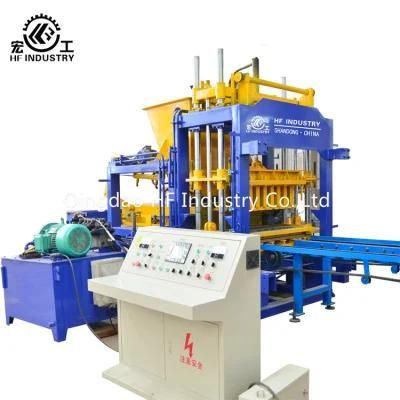

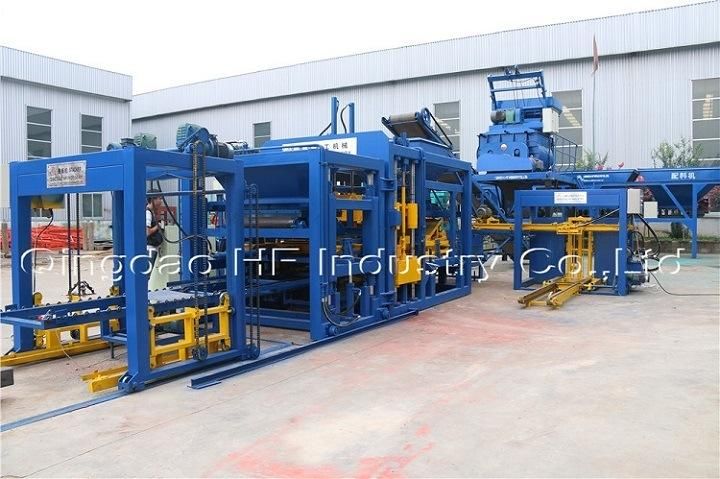

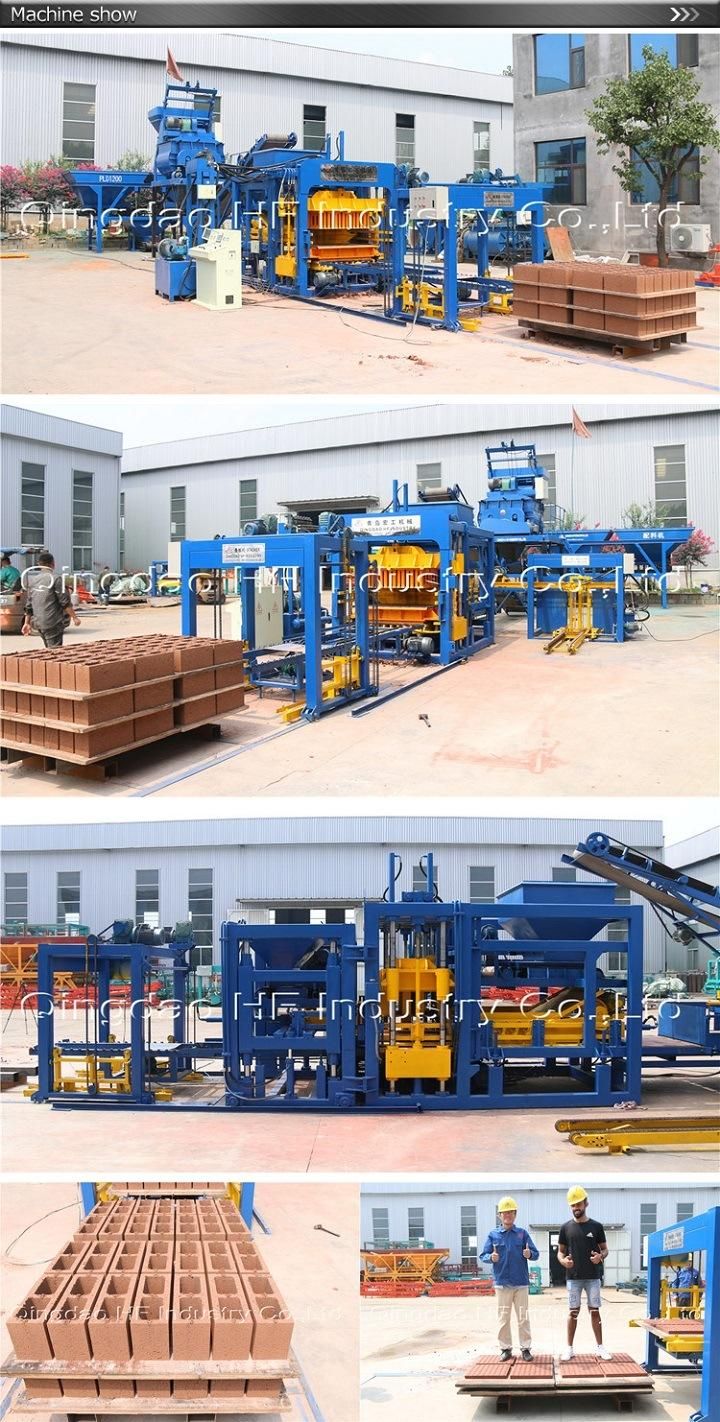

Machine pictures
