• Model NO.：CLJJA-500
• Rotary Speed：2800r,Min
• Air Pressure：0.6-0.8MPa
• Auto Feeding Length：5-580mm
• Cutting Width：140mm
• Cutting Height：1400mm
• Cutting Angle：90 Degree
• Machine Dimension：5670*1770*1840mm
• Weight：800kg
• Application：Aluminium Window Profile
• After-Sales Service：Engineers Available to Service Machinery Overseas
• Operation Air Pressure：0.6~0.8MPa
• Transport Package：Wooden
• Specification：Saw blade diameter 500mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLJJA-500 Rotary Speed 2800r/Min Air Pressure 0.6-0.8MPa Auto Feeding Length 5-580mm Cutting Width 140mm Cutting Height 1400mm Cutting Angle 90 Degree Machine Dimension 5670*1770*1840mm Weight 800kg Application Aluminium Window Profile After-Sales Service Engineers Available to Service Machinery Overseas Operation Air Pressure 0.6~0.8MPa Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 500sets/Year

Product Description

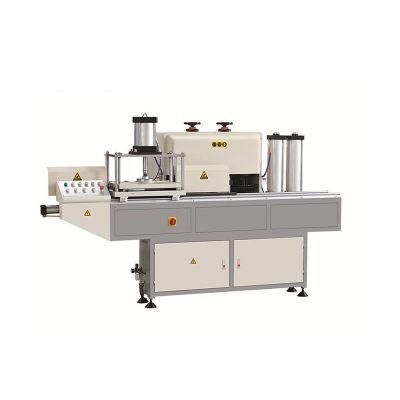

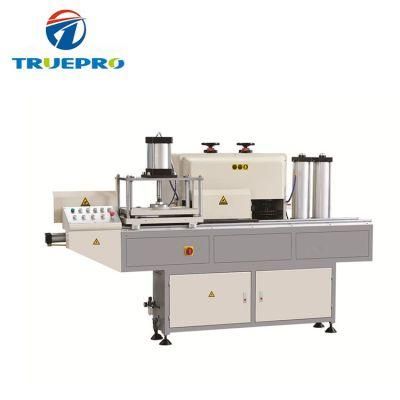

automatic cnc Digital display corner connector cutting saw

Machine feature:

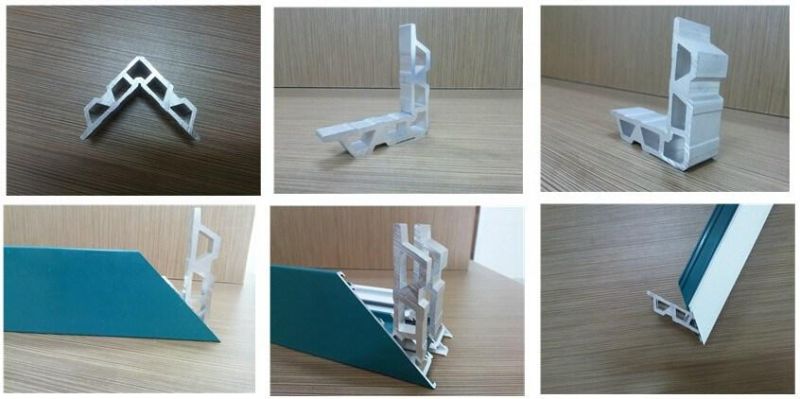

1.Used for aluminum corner connector cutting.
2.Imported carbide saw blade is of accurate processing and high efficiency.
3.High-power motor makes the cutting easily.
4.Linear bearing motion pair give less resistance force and ensured high processing accuracy.
5.The PLC control and auto-feeding system with high efficiency is suitable for large volume production.
6. Only one time clamping,can achieve 6 meters corner connector continuous cutting.
Parameter:

Model	CLJJA-500
Air Pressure	0.6~0.8Mpa
Motor rotary speed	2800r/min
Power supply	380V50Hz
Cutting motor power	3kw
Auto-feeding length	5-580mm
Blade feeding speed	0-3m/min
Blade specification	Ø500*Ø30*4.4 Z=96
Cutting width*height	140*140mm
Overall dimension	5670*1770*1840
Weight	800Kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.



1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
