• Model NO.：Qt10-15
• Viberation Force：100kn
• Weight of Host Machine：9.8t
• Pallet Size：1300*900*30mm
• Water Consumption：10-20t,Day
• Mixer Model：Js750
• Forming Cycle：15s
• Molding Area：1196*880mm
• Color：as Your Request
• Transport Package：Container
• Specification：9600*1600*2700mm
• Trademark：DUYUE
• Origin：China
• HS Code：8474802000
• Production Capacity：100 Pieces,Year

Basic Info.

Model NO. Qt10-15 Viberation Force 100kn Weight of Host Machine 9.8t Pallet Size 1300*900*30mm Water Consumption 10-20t/Day Mixer Model Js750 Forming Cycle 15s Molding Area 1196*880mm Color as Your Request Transport Package Container Specification 9600*1600*2700mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 100 Pieces/Year

Product Description

Production description

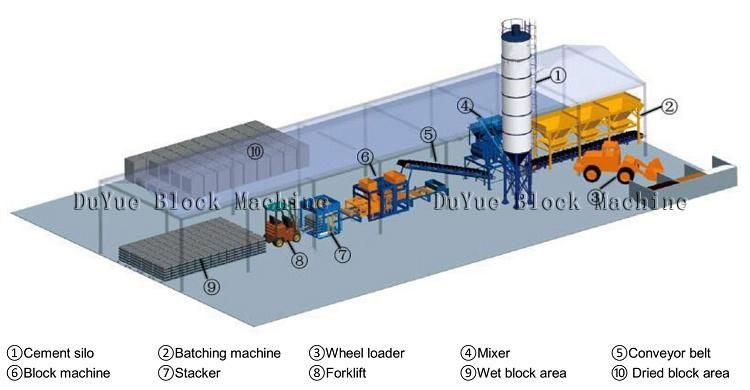

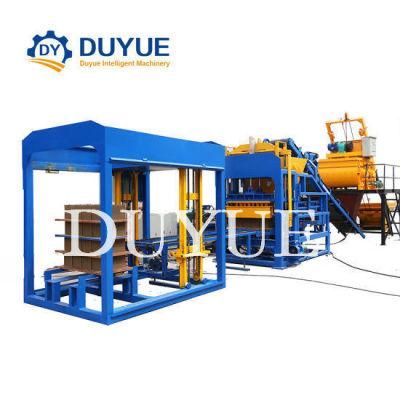

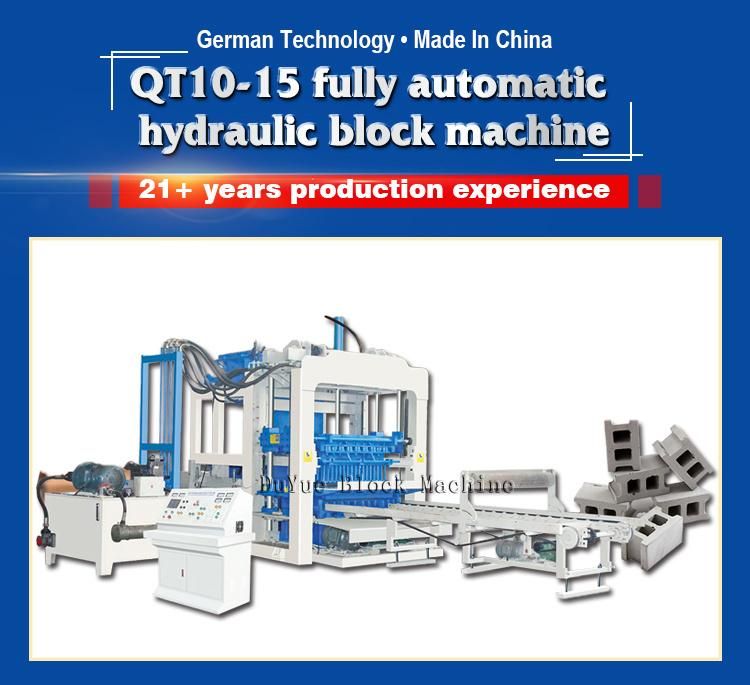

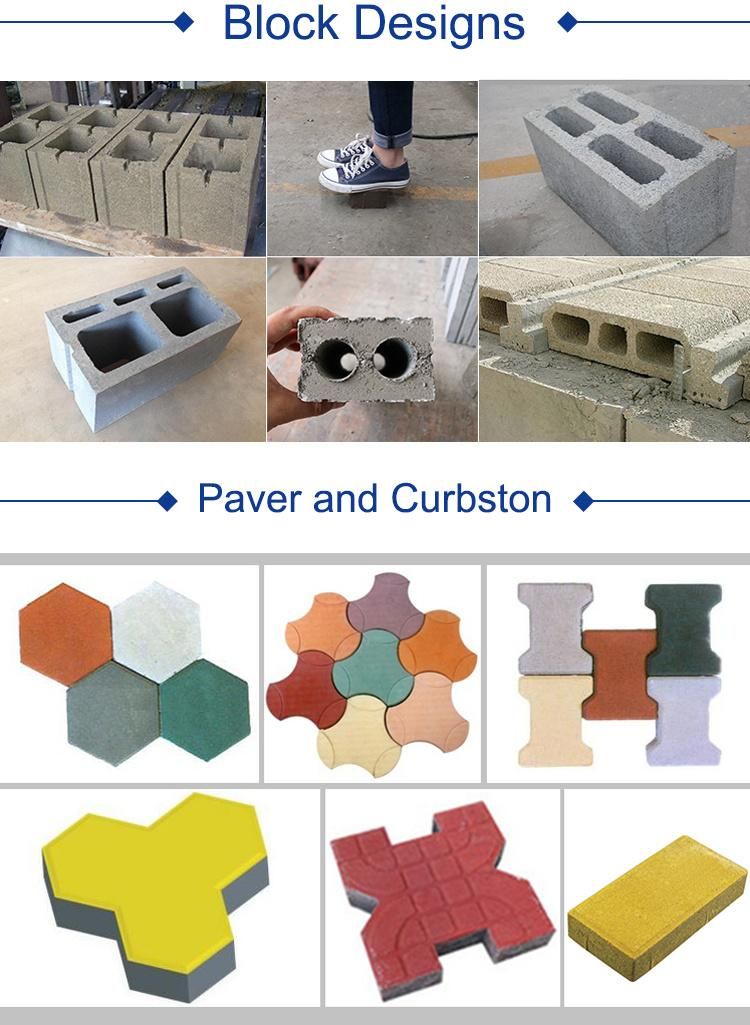

The QT10-15 block production line is a fully automatic manufacturing unit, with a production capacity of pieces from 60 to 230mm height, allowing the manufacturing of a wide range of products for building walls, roads, garden, pavement, etc.In this unit is used a series of bamboo pallets with dimensions of 1300 x 900 x 30 therefore allowing the manufacturing of a large number of heavy weight pieces by cycle.To attain such performances the vibration becomes one of the essential points of the equipment.To guarantee a homogeneous vibration in all the worktable with the guarantee of a strong compaction of the concrete, duyue has the vibration system specially conceived to compete with the highest quality standards worldwide, this vibration system is not only an innovation but a standard for all our high performance vibropresses.Its strong structure and certified materials allow the use of very high compaction forces of approximately 100KN, the hydraulic unit that comes standard with speed control modules allows extremely fast movements with very soft transitions therefore ensuring a longer durability and low maintenance of the equipment.

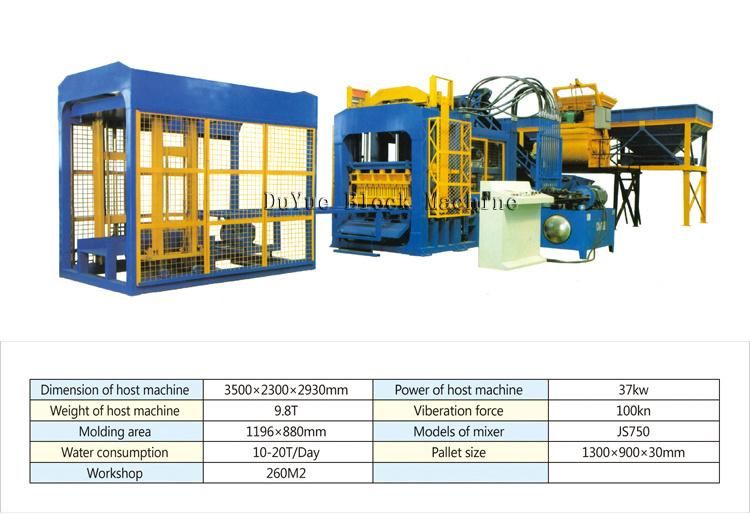

Main technical parameters

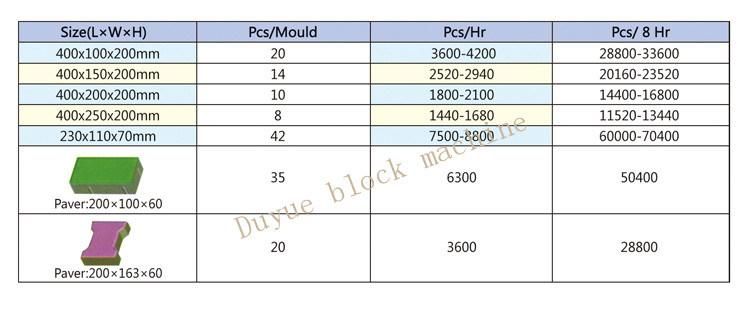

Theoretical production capacity
