Precision Rcm Heat Insulation Profile Rolling Compound Machine CNC Window Making Machine for Aluminum Profile
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service：Lifetime Maintenance
- Warranty：1 Year
- Condition：New
- Certification：CE
- Automatic Grade：Automatic
- CNC or Not：CNC
Base Info
- Model NO.：RCM
- Voltage：380V
- Transport Package：PE Film Wooden Box
- Specification：1740*940*1600mm
- Trademark：Zunbo
- Origin：China
Description
Basic Info.
Model NO. RCM Voltage 380V Transport Package PE Film Wooden Box Specification 1740*940*1600mm Trademark Zunbo Origin ChinaProduct Description
Product Description:

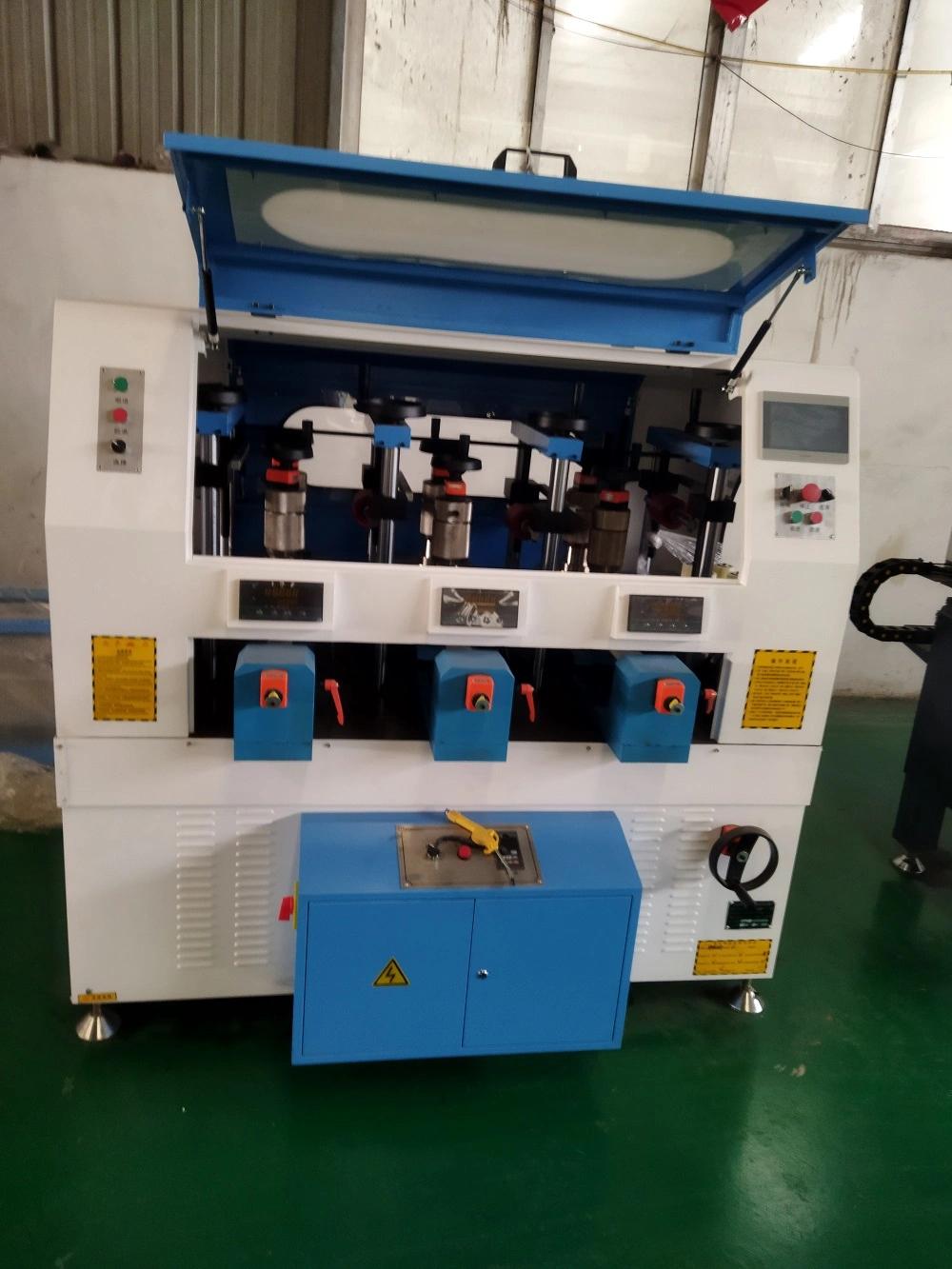

Model: RCMRCM Heat Insulation Profile Rolling Compound Machine
Rolling machine is to ensure that the heat insulation strip and aluminum profile closely combined and vertical key equipment. The roller press USES three sets of six rollers to press the aluminum profiles slots which have been inserted into the heat insulation strip. Four sets of polyurethane rollers are equipped in between to adjust the straightness and perpendicularity of the composite profiles at any time. The pressure gauge shows the rolling pressure when the pressed part is rolled. At the same time, the position displays the distance number of two groups of rolling cutter disks.
Technical Parameter:
Voltage: 380V/50Hz
Power: 3kW
Weight: 1500kg
Knurling blade diameter: 230mm
Profile feeding speed: 6-60m/min adjustable
Outside dimension: 1740*940*1600mm
