• Model NO.：Qmy4-45
• Power：12HP
• Vibration Force：30kn
• Shape Cycle：40-45seconds
• Total Weight：1200kgs
• Method：Vacuum Extruder
• Color：as Your Request
• Transport Package：Container
• Specification：1450*1400*1200MM
• Trademark：DUYUE
• Origin：China
• HS Code：8474802000

Basic Info.

Model NO. Qmy4-45 Power 12HP Vibration Force 30kn Shape Cycle 40-45seconds Total Weight 1200kgs Method Vacuum Extruder Color as Your Request Transport Package Container Specification 1450*1400*1200MM Trademark DUYUE Origin China HS Code 8474802000

Product Description


Production description

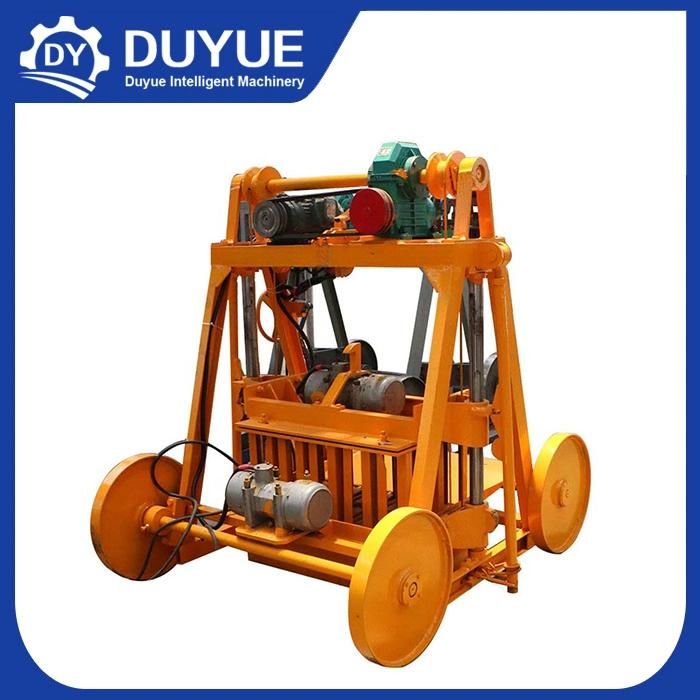

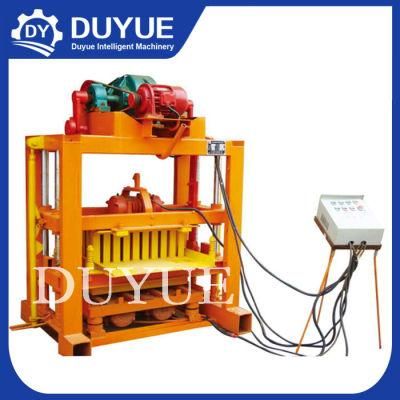

This block Machine is manufactured on the base of technical modifications to the original block shaping machines, that is changing the former one-time-vibration into twice-vibrations of molding core, so the block density becomes higher, shaping speed quicker and block strength more even, this model of machine can suitable to the customers who have any kinds of ceasing concrete working sites, and the consumption carriage can be reduced.

Advantage

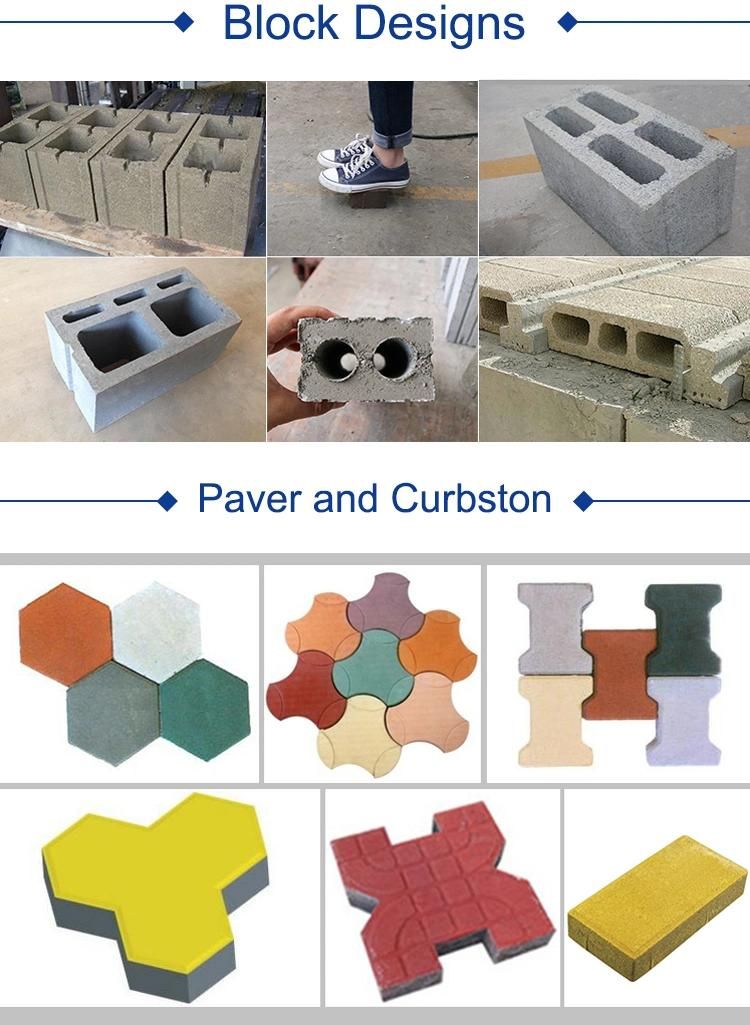

1. QMY4-45 can produce sizes of hollow blocks and solid bricks by changing moulds.
2. Do not need pallet, Reduce investment.
3. Reasonable structure, Simple operation, Easy maintance.

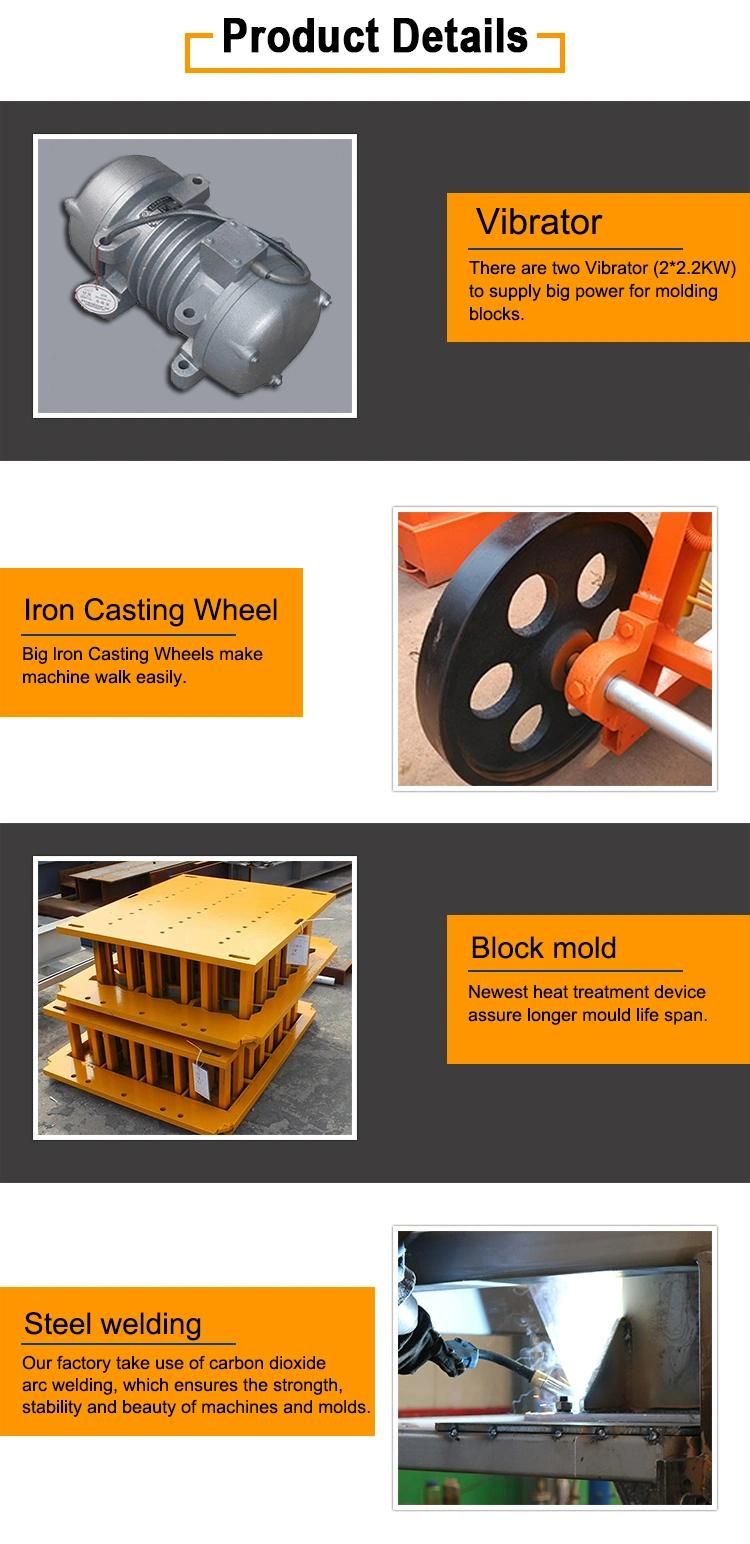

4. Mould adopt Carburizing heat treatment technology, so life is double than ordinery.
5.It is the particular model for a family of medium and small inwestors.

Main technical parameters

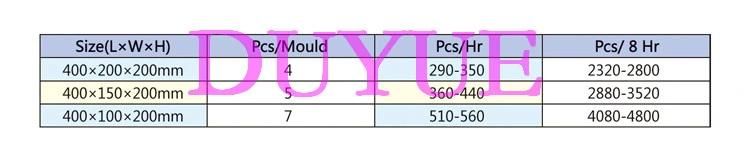

Theoretical production capacity
