• Model NO.：CLXF-CNC-3000
• Voltage：380V
• Machine Name：Window Lock Hole Making Aluminum PRO
• Input Power：7kw
• Rotary Speed：18000r,Min
• Air Pressure：0.5-0.8MPa
• Dia. Drilling Cutter：Dia.5, Dia 8
• Max. Processing Width：300mm
• Air Consumtion：20L,Min
• Machine Dimension：4400*1400*1700mm
• Weight：1200kg
• Transport Package：Wooden
• Specification：3000mm
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLXF-CNC-3000 Voltage 380V Machine Name Window Lock Hole Making Aluminum PRO Input Power 7kw Rotary Speed 18000r/Min Air Pressure 0.5-0.8MPa Dia. Drilling Cutter Dia.5, Dia 8 Max. Processing Width 300mm Air Consumtion 20L/Min Machine Dimension 4400*1400*1700mm Weight 1200kg Transport Package Wooden Specification 3000mm Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

Window Lock Hole Making Aluminum Profile CNC Milling and Drilling MachineMachine feature:

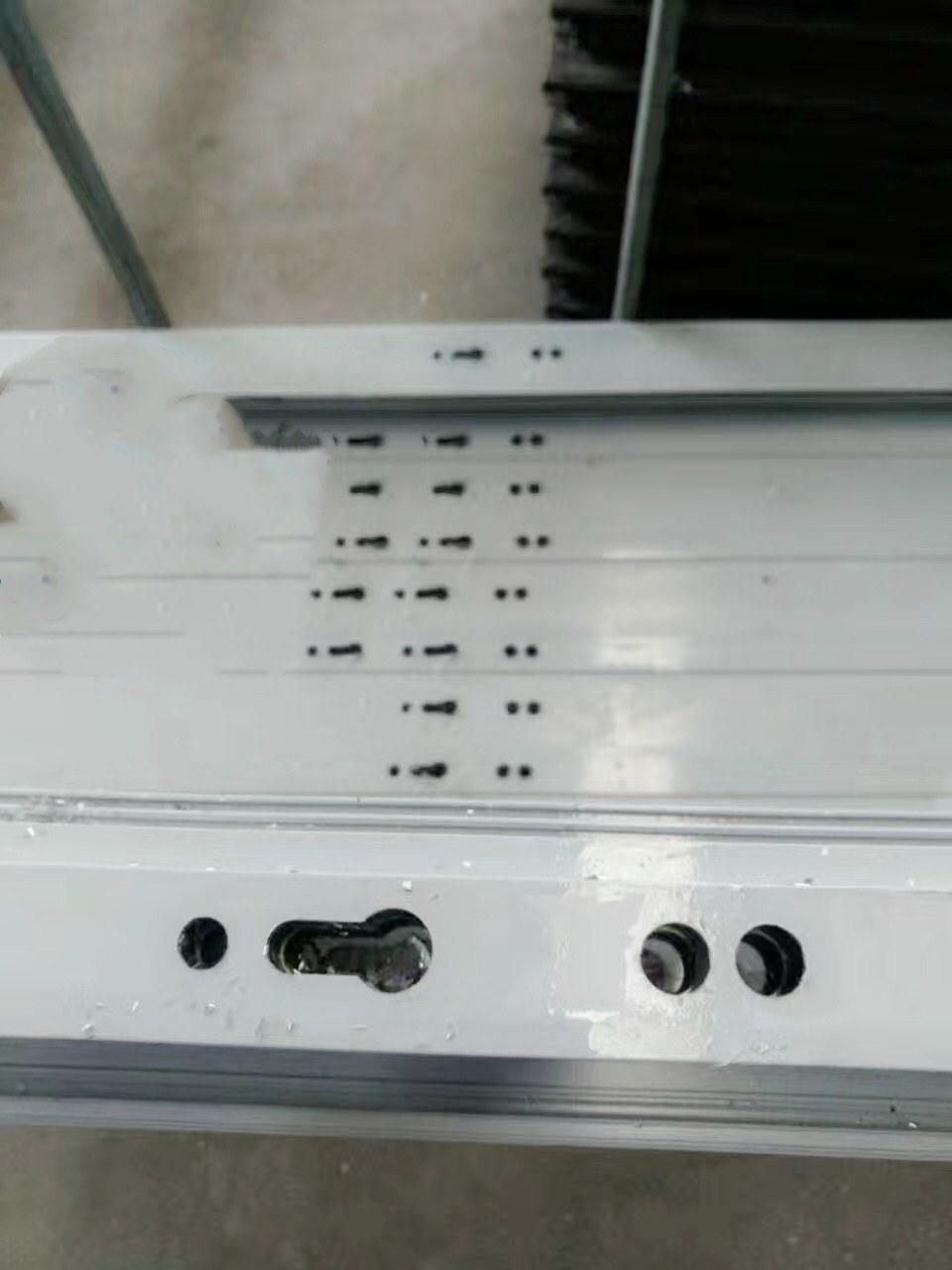

1. Used for Aluminumn profile &PVC profiles' shape holes,round holes ect. drilling &milling.

2. Adopts standard Triaxial System,easy operation.

3. Adopts electric spindle with high precision,good security,high stability.

4. X,Y and Z Axis adopts high precision ball bearing conveyor,runs stable.

5. ISO International Standard G code prodramming,easy to operate.

Parameter:

X-axis running speed 0~60m/min
Y-axis running speed 0~15m/min
Z axis running speed 0~15m/min
X-axis journey 3000mm

Y-axis journey 300mm
Z axis journey 300mm
Processing size 160*160*3000mm
Work Position: 90°0°-90°three side
Tool Clamp ER25-dia8dia10
Air source 0.5~0.8MPa
Power Supply 380V/50Hz
Total power 7kw
Dimensions (length × width × height) 4400*1500*1800mm
Net Weight 1200kg

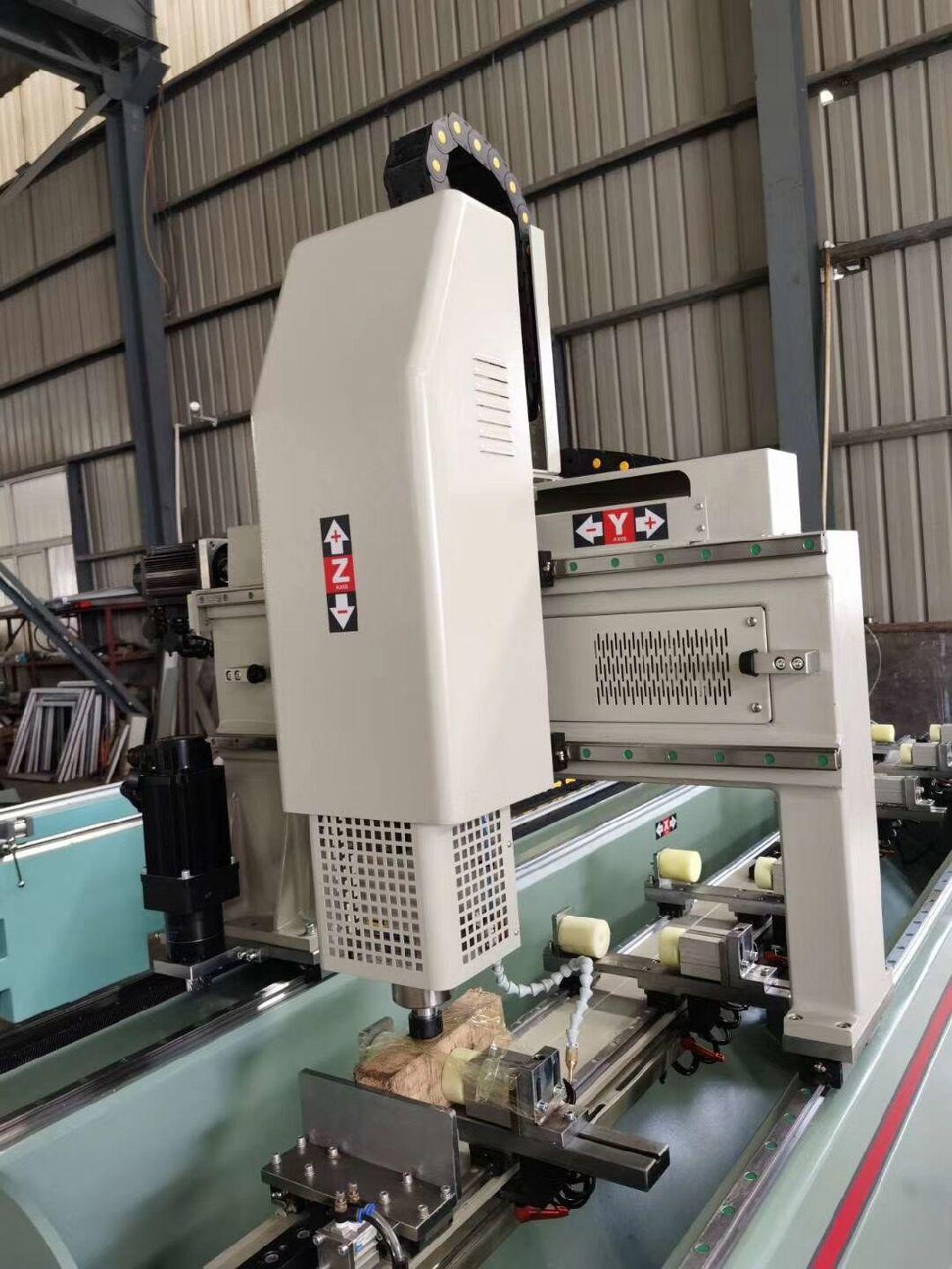

Machine details:


FAQ

1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
