• Model NO.：NM083
• Automatic Grade：Automatic
• Motor Power：50kw
• Material of Punching Mould：Cr12MOV
• Hydraulic Power：7.5kw
• Roll Forming Station：16 Groups
• Raw Material：Black Steel & Galvanized Steel
• Thickness of Raw Material：2.0-4.0mm
• Weight of Machine：About 25ton
• Electricity：PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases
• Transport Package：Steel Wires Fixed and 40gp Container Load
• Specification：9000mm*1800mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：10 Sets Per Month

Basic Info.

Model NO. NM083 Automatic Grade Automatic Motor Power 50kw Material of Punching Mould Cr12MOV Hydraulic Power 7.5kw Roll Forming Station 16 Groups Raw Material Black Steel & Galvanized Steel Thickness of Raw Material 2.0-4.0mm Weight of Machine About 25ton Electricity PLC Detal, Made in Taiwan, 380V 50Hz, 3 Phases Transport Package Steel Wires Fixed and 40gp Container Load Specification 9000mm*1800mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 10 Sets Per Month

Product Description

Construction Building Material Delta PLC And Inverter Plc Metal Highway Guardrail Fence Sheet Roll Forming Machine

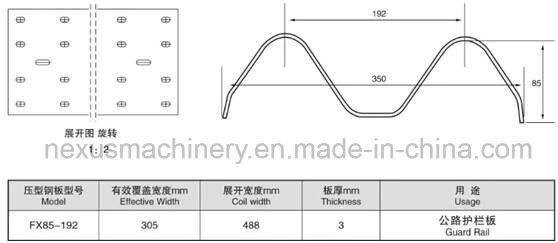

Profile drawings:

 The thickness of Material: 2.0-4.0 mm

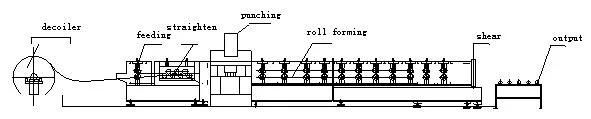

 Working flow:Uncoiler-Feeding-Leveling-- hydraulic punching-Roll forming-Hydraulic cutting-output table

Main Specification
Manual decoiler

1. Capacity: 3 ton
2. Loading width: MAX 600mm
3. Valid expanding range for coil inner diameter: 480-520mm

Main roll forming system

1. Main motor power: 50kw
2. Separate motor reducer: 750type
3. Punching: Hydraulic pre-punching before forming
4. Punching mould:Cr12mov
5. Hydraulic power: 7.5KW
6. Roller material: Gcr15 bearing steel and quench treatment hardness 58-62, chrome coated0.05mm
7. Leveling rollers: 7rollers(three upper and four lower)
8. Roll forming station: 16 groups
9. Diameter of main shaft: 100mm
10. Drive: independent gearbox with universal joint
11. Raw material: Black steel & galvanized steel
12. Thickness of Raw material: 2.0-4.0mm
13. Width of Raw material: 482mm
14. Working speed: 10m--15m/min(Exclude cutting time)
15. Cutting: Hydraulic cutting after forming, Auto cutting when reach the set length.
16. Cutting blade: Cr12mov
17. Cutting tolerance: +/- 1.5mm
18. Hydraulic pressure: 30Mpa
19. Weight of machine: about 25ton
20. Size of machine: About 9000×2150×1500mm L x W x H
21. Color of machine: yellow and blue
22. Coder: Omron
23. Control: PLC Delta, made in Taiwan, 380V 50HZ, 3 phases (Also can design)
24. Computer operating panel: touching screen
