• Model NO.：LJZ2S-500x4200
• Input Power：5.9kw
• Power Supply：380V,50Hz
• Saw Blade Size：500mm
• Cutting Angle：45 and 90 Degree
• Cutting Length：400-4200mm
• Cutting Size：135X200mm
• Overall Size：5700X1650X1520mm
• Weight：1613kgs
• Factory：Yes, Since 1995
• Color：Can Be Customized
• Guarranty：12 Months
• Packing：Iron Pallet
• CNC System：Japan Mitsubishi Brand
• Electric Parts：France Schneider
• Transport Package：Steel Pallet
• Specification：5700X1650X1520mm
• Trademark：MMCNC
• Origin：China
• HS Code：8461500090
• Production Capacity：50 Sets Per Month

Basic Info.

Model NO. LJZ2S-500x4200 Input Power 5.9kw Power Supply 380V/50Hz Saw Blade Size 500mm Cutting Angle 45 and 90 Degree Cutting Length 400-4200mm Cutting Size 135X200mm Overall Size 5700X1650X1520mm Weight 1613kgs Factory Yes, Since 1995 Color Can Be Customized Guarranty 12 Months Packing Iron Pallet CNC System Japan Mitsubishi Brand Electric Parts France Schneider Transport Package Steel Pallet Specification 5700X1650X1520mm Trademark MMCNC Origin China HS Code 8461500090 Production Capacity 50 Sets Per Month

Product Description

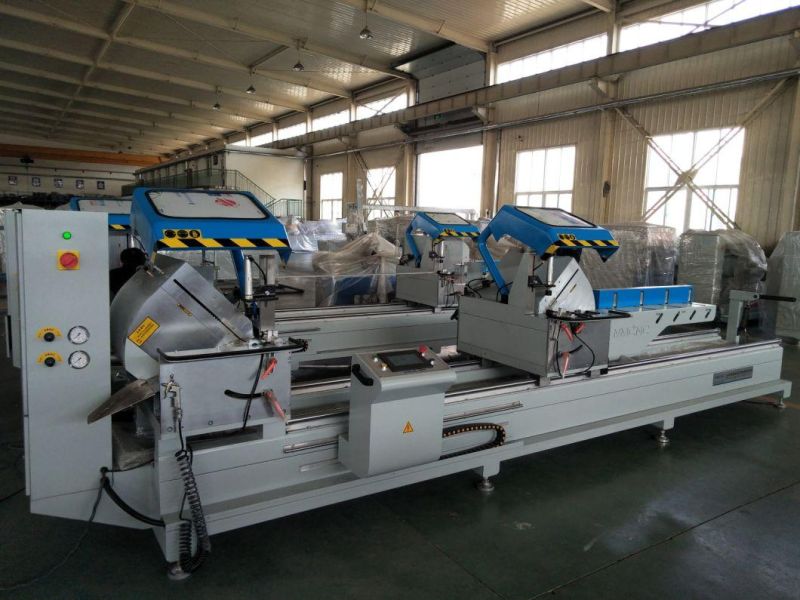

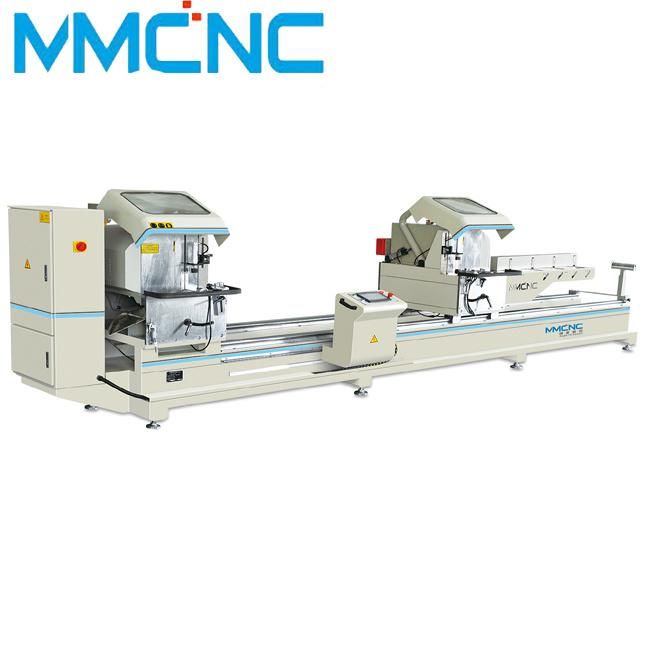

CNC Double Mire Saw for aluminum/Cutting angle 45 degree,90 degree/Aluminum Window Cutting Saw
1. Feature
1.1    Imported carbides blade is of accurate processing and high endurance
1.2    Saw blade rotates smoothly due to high accurate main spindle
1.3    Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
1.4    The feeding system adopts the imported linear guide pair,with high accuracy and stability
1.5    Two saw heads are adjustable and cut the profiles in 67.5°,45°,90°freely.
1.6    Auto-opening shield maked the operation safety.
1.7    Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.
1.8    This machine uses the numerical control technology,profiles pf different of different specifications can be completed automatically under the expected size.

2. Technical Parameter
2.1    Input power: 5.9kw
2.2    Power supply: 380V/50Hz
2.3    Air pressure: 0.5~0.8MPa
2.4    Motor rotary speed: 2800r/min
2.5    Saw blade specification: φ500xφ30
2.6    Cutting Angle: 90°  45°
2.7    Cutting Length: 400-4200mm
2.8    Cutting Width X Height: 135X200mm
2.9    Overall Dimension: 5700X1650X1520mm
3.0    Weight: About: 1613KGS

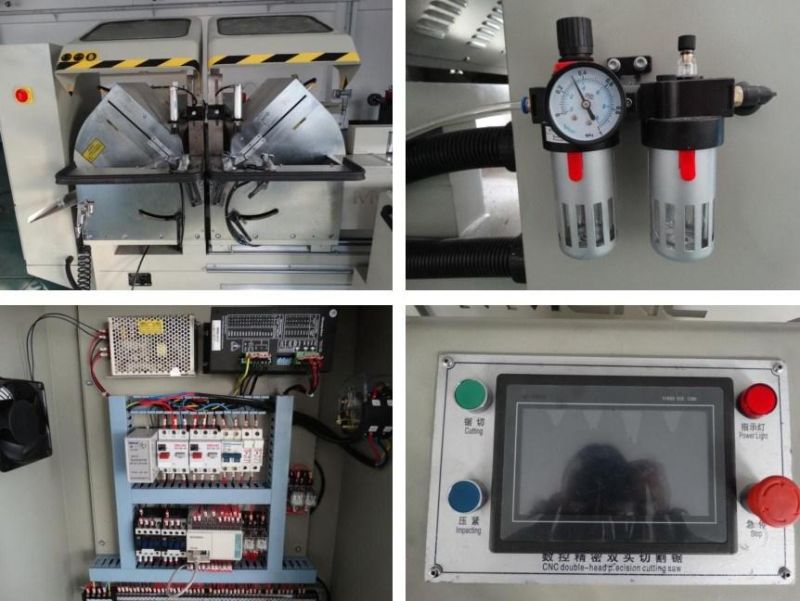

3. Detailed Photos

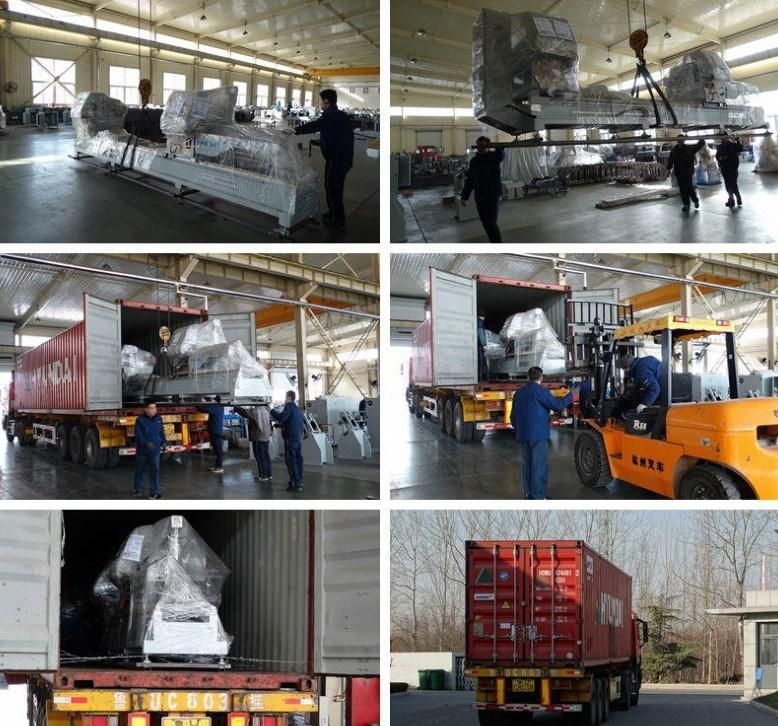

4. Packing and Delivery



5.Get free quote now.
