Autoclaved Aerated Concrete Block Machine (AAC Block Machine)
Shandong Sunite Machinery Co., Ltd.- Certification：ISO 9001:2008, CE, SGS
- Type：AAC Brick Machine
- Item：AAC Block Machine
- Voltage：380V,440V
- Warranty：One Year
- Service：Service Machinery Overseas
Base Info
- Model NO.：30000-300000 cubic meters AAC blocks per year
- Installation and Commissioning：Under Our Engineer′s Guide
- AAC Block Size：600X240X100-200mm or Can Be Customized
- AAC Block Weight：400-700kg,M3
- AAC Block Compressin Strength：3.5-10.0MPa
- Method：Autoclaved Aerated Concrete
- Processing：Brick Production Line
- Transport Package：Nude Packing or Container
- Specification：BV,CE,SGS,ISO9001: 2008
- Trademark：SUNITE Machinery
- Origin：Yinan County, Linyi City, Shandong

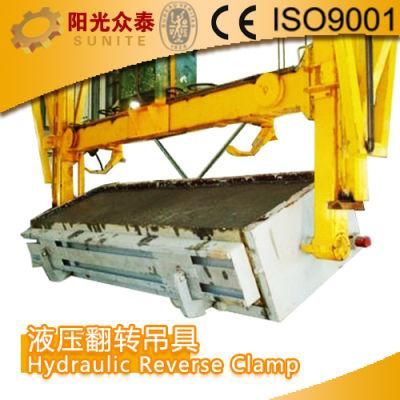

- HS Code：8474809090
- Production Capacity：10 Sets,Month
Description
1.The part made by SuniteI. Raw Material Preparing Process NO. Name Specifications Quantity 1 Batch Machine 2.5m³ 2set 2 Belt Conveyor 8m×0.6 m 1set 3 Slurry Mixer 5m³ 1set 4 Waste Slurry Mixer 4m³ 1set 5 Slurry Pump(YZ) 80YZ80-20 4set 6 Slurry Storage Tank 30m³ 2set 7 Waste Slurry Tank 30m³ 1set 8 Cement Silo 45m³ 1set 9 Lime Silo 45m³ 1set II. Pouring, Mixing Process 10 Slurry Weighing Tank 6T 1set 11 Powder Weighing Tank 3T 1set 12 Air Compressor V-O-17/B 1set 13 Screw Conveyor Φ219×2.5m 3set 14 Aluminum Mixer 0.05m³ 1set 15 Casting Mixer 4.8m³ 1set 16 Mould Carrier 4m×3m 1set III. Curing Process 17 Mould Box 5250×1660×880mm 20set 18 Plate of Mould Box 4970×670×170mm 182set 19 Winch System 4KW-35 5set IV.Grouping, Reverse Process 20 Crane Turning Machine 6.3 M×2 M-P=5T 1set 21 Hydraulic System of Turning Machine 7.5KW -20Mp 1set 22 Crane&Block Carrier 5.5 M×2 M-P=3.5T 1set 23 Oil Tank of Block Carrier 5.5 KW -20Mp 1set V. Cutting Process 24 Frequency Conversion Cutting Machine 3.7 M×1.4M 1set 25 Level Cutting Machine 5000×2300×2200mm 1set 26 Vertical Cuting Machine 5480×2350×2800mm 1set 27 Hydraulic System of Vertical Cut Machine 5.5 KW -20Mp 1set VI. Autoclaving Process 28 Winch Machine before Autoclave 5T 1set 29 Steam Cart 5M×2M 54set 30 Winch After Autoclave 5T 2set VII.Electric Controlling System 31 Automatic PLC Control Cabinet &Wires Siemens,Schneider 3set VIII.Mould Box Recycle Using System 32 Plate Conveyor 0.87×0.25 16set The other parts from our parts supplier 1 Jaw Crusher PE200×350 1set 2 Bucket Lift Machine HL200 1set 3 Raymond Mill(include dust removal) 4R3216 1set 4 Vibrate Feeder 0-10T 1set 5 Bucket Lift Machine D250 1set 6 Coal Boiler DZL6-1.6MPA 1set 7 Autoclave Φ2.5m×31m 6set 8 Steam Distribution Cylinder Φ325 2set 3.The parts need buying locally by buyer 1 Cast Building Welding Steel Construction 1set 2 Steam Room&Pipe Brick&Concrete DN80 1set 3 Steam,PPR Water Pipe&Valve DN80/50/25 1set 4 U-steel(MouldBox) 18# 124m 5 Crane Rail 24kg/m 90m 6 H Steel 350×175×7×11 90m 7 Crane Pillar Φ180×5 50m 8 Light Rail 12kg/m 1000m 9 H Steel(Plate Transport) 100×100×6×8 60m
