• Model NO.：QTJ4-26C
• Cycle：26s
• Cbm：12cbm
• Pallet Size：850*550*25mm
• Vibration Frequency：4000-48000 Time,Min
• Contact：Pompom
• Method：Vacuum Extruder
• Processing：Brick Production Line
• Product：Brick
• Transport Package：Nude Packing or Full Container
• Specification：CE ISO9000 soncap
• Trademark：shengya
• Origin：Shandong
• HS Code：8474809090
• Production Capacity：4800PCS Per Day

Basic Info.

Model NO. QTJ4-26C Cycle 26s Cbm 12cbm Pallet Size 850*550*25mm Vibration Frequency 4000-48000 Time/Min Contact Pompom Method Vacuum Extruder Processing Brick Production Line Product Brick Transport Package Nude Packing or Full Container Specification CE ISO9000 soncap Trademark shengya Origin Shandong HS Code 8474809090 Production Capacity 4800PCS Per Day

Product Description

Contact:Pompom
Address:Guangyuanxili,Guangzhou City, China

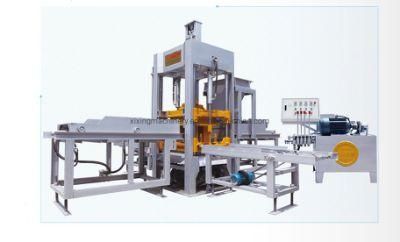

QTJ4-26CFully Automatic Cement Block Shaping Machine has absorbs the advantages of different machines home and abroad , the new of machine was produced after research and development, considering the conditions of use and maintenance in the middle and small sizes factories that use cement block shaping machines. Its characteristics are as follows:
1. Transfer mechanism adopts mechanical drive, and use mechanical power reasonably and effectively, it can finish several technology actions without breaking. Transfer mechanism wears well and is convenient for corrective maintenance.
2. When the machine is forming concrete brick, it librates up and down. There is vibration table with vertical orientation under the mould box, and vibrator vibrates with compression over the crossbeam, thus when it produces concrete brick or pavement block, satisfactory shaping effect can be achieved, it fits for producing concrete brick or pavement block of high strength.
  3. The machine is of multi-purpose, it can produce walling unit, pavement block and figure walling unit, etc. Of many shapes and sizes, when consumer produce concrete brick or pavement with colorful layer, you can pull out the feeding arrangement, and set up a charging deck to adopt artificial    feeding, which can not only save the cost of colorful layer, but also produce different kinds of concrete brick or pavement with colorful layer and so on.
   4. The machine can use common plate as shaping baseboard.
   5. The machine operates automatically, has high manufacturing efficiency, and needs low intensity of labor.
Main Technical Data:
Product Quantity of Different Moulds
390×190×190mm    4pieces/mould
390×240×190mm    3 pieces/mould
390×90×190mm       8 pieces/mould
240×115×90mm       9 pieces/mould
240×115×53mm      21pieces/mould
Shaping Cycle 25s

production capacity	400x200x200mm   3840 pieces /8hour     400x150x200mm   4800 pieces/8hour      400x100x200mm   6720 pieces/8hour
power	11.75kw
overall size	3000X1600X2500mm
cycle	26 seconds
pallets size	850x550x25mm
vibration force	40KN
vibration frequency	4000-4800/Minute
rated pressure	12Mpa
total weight	3500kg
electricity source	380v/50HZ
