• Model NO.：DX280 380
• Name：Standing Seam Metal Roof Machine
• Material Thickness：0.3-0.8mm
• Effective Width：280mm
• Feeding Width：400mm
• Main Motor Power：4kw
• Pump Power：4kw
• Shaft Diameter：75mm
• Forming Steps：16
• Roller Material：45# Forged Steel, with Hard Chrome Plating
• Main Frame：350h Steel
• Medium Plate Thickness：16mm
• Control system：Delta PLC Computer Control with Inverter
• Cutting Blade Material：Cr12
• Speed：10-12 Meter,Min
• Drived by Chain：1inch
• Transport Package：Nude
• Specification：6800*800*1200mm
• Trademark：DIXIN
• Origin：China, Hebei, Botou
• HS Code：84552210
• Production Capacity：100 Sets,Year

 1 manual decoilerused to support the coils and uncoil it 2feeding&guiding partused to guide the coil 3rollersused to form the panel 4cutting/shearing partused to cut the formed panels, powered by hydraulic pump 5PLC control cabinetused to adjust the number and the length of the panel 6output tableused to collect the finished panels

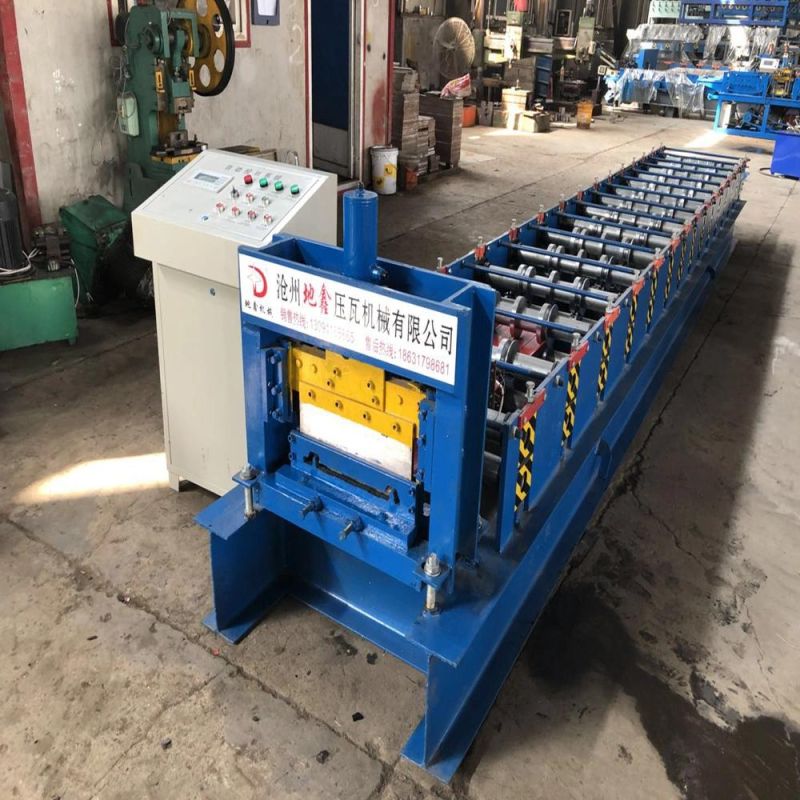

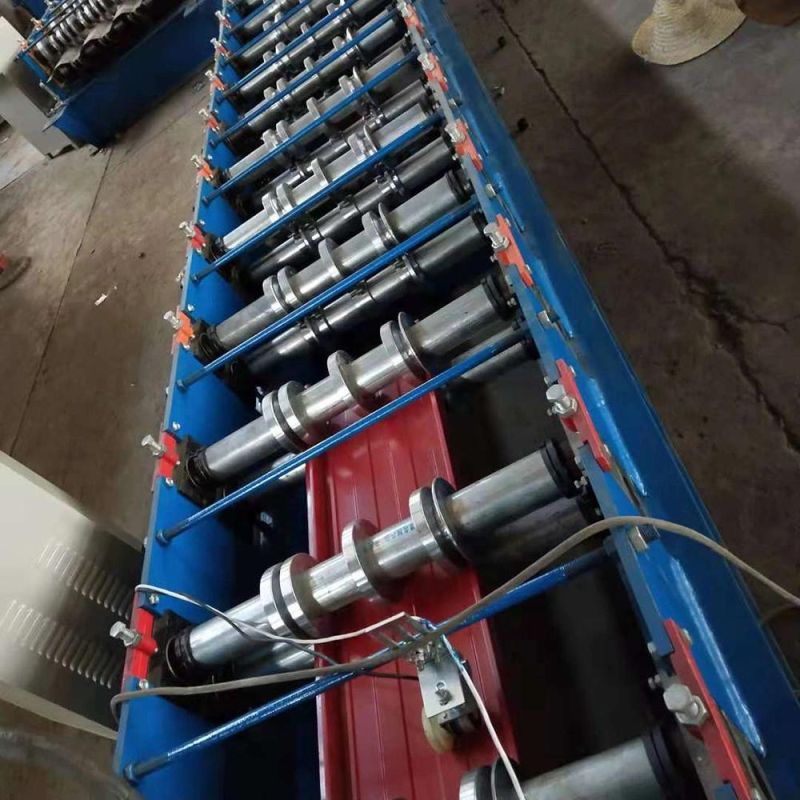

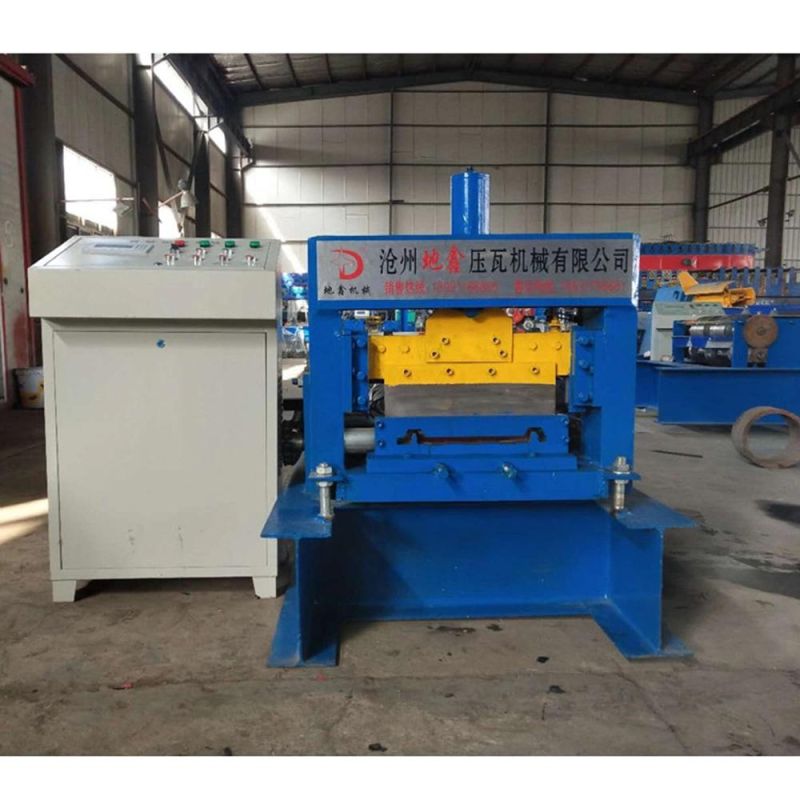

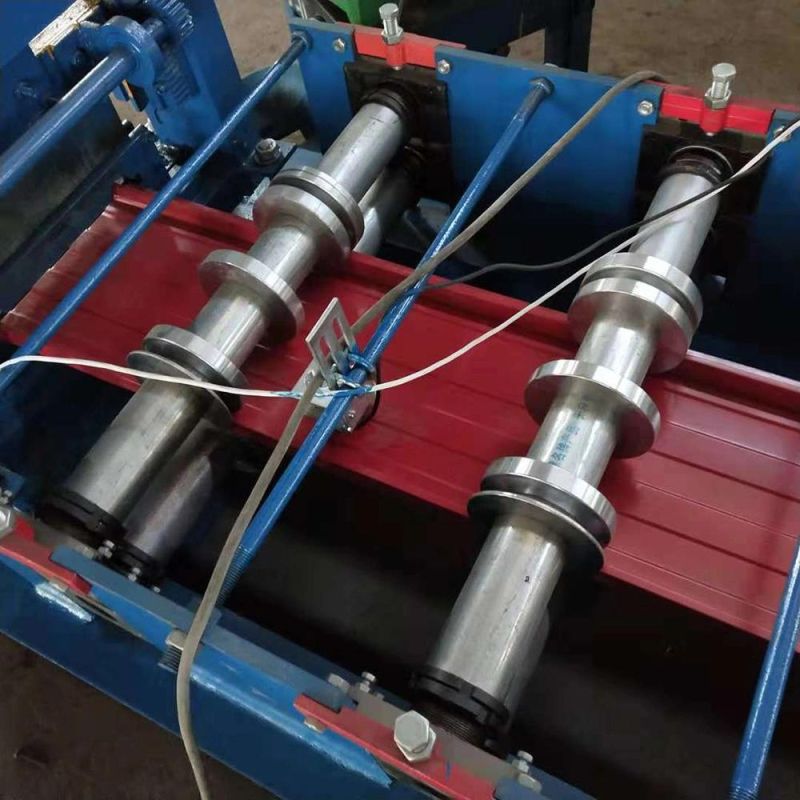

Some machine pictures for your reference.

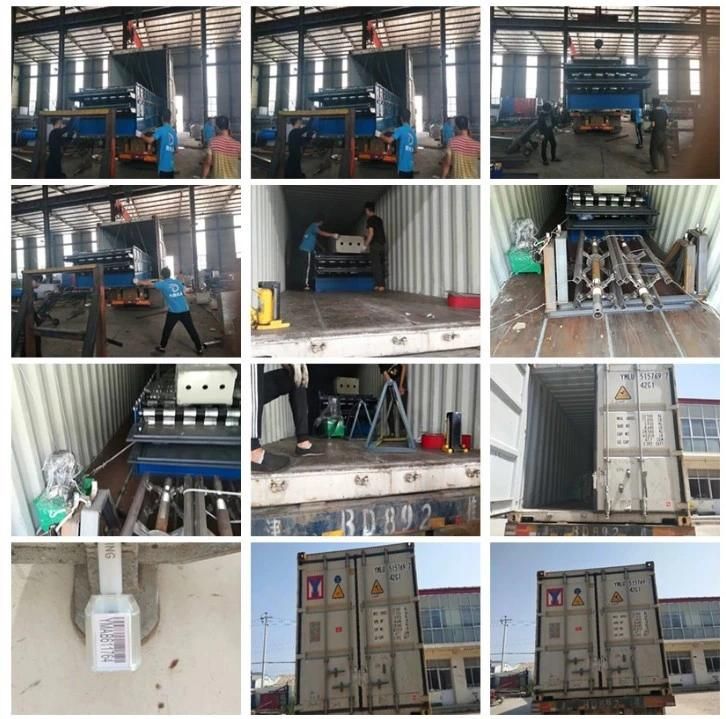

Packaging & Shipping
Standard export packing and delivery
1. Main body of roll forming machine and decoiler is nude packing.
2. Rollers, shafts, PLC, pump and cutter are packed with water-proof plastic film, spare parts in carton box.
3. One set of machine needs a 20'container to shipping.


Canton fair details

If you want to know about more  details about our machine ,Please Contact Coco Mobile  :86 18231737651

Quality first, service first, your satisfaction is the driving force of our progress.(I can provide you a top quality with a good price )
