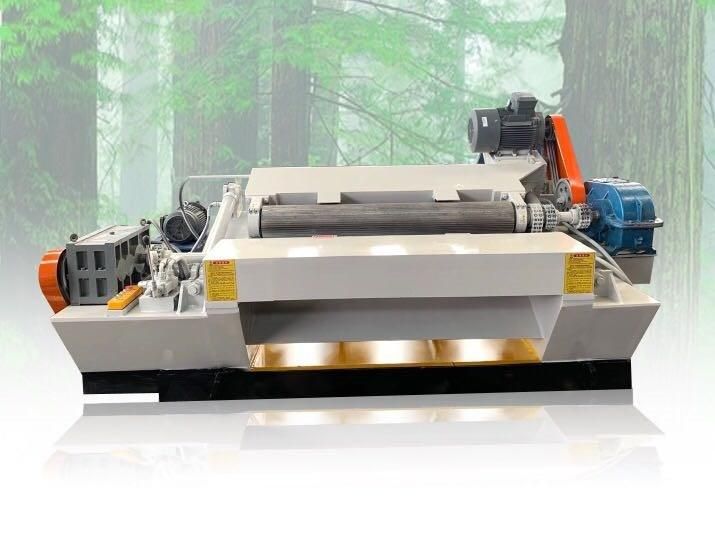

Spindleless Wood Veneer Peeling Machine

Linyi Jingyuan Import & Export Co., Ltd.
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Automatic Grade：Automatic
  • Structure：Horizontal
  • Transmission Method：Hydraulic Pressure

Base Info

  • Model NO.：1500
  • Transport Package：Standard Exporting Packing
  • Trademark：JINGYUAN
  • Origin：Linyi City Shandong Province, China
  • HS Code：8465960000
  • Production Capacity：100 Sets,Month

Description


                                    1500 Type Knife Table Moving CNC Machine
ITEM
STANDARD
REMARK
ROLLER LENGTH1500mm,
MILLING PATTERN,HARD CHROMIUM PLATING
ROLLER DIAMETER
SINGLE ROLLER 125MM, DOUBLE ROLLER 150MM
PEELING KNIFE SIZE1500*140*12.7mm
TWO ROLLERS MOTOR POWER7.5kw*2
R87 HARDENED SURFACE REDUCER
ONE ROLLER MOTOR POWER7.5kw*2
R87 HARDENED SURFACE REDUCER
LOADING BAR MOTOR POWER11kw
R87 HARDENED SURFACE REDUCER,SEVRING MOTOR
RUBBER ROLL MOTOR POWER2.2KW
RV110 HARDENED SURFACE REDUCER
 CUTTER MOTOR POWER2.2kw
RV110 HARDENED SURFACE REDUCER
TOTAL POWER45.4kw
PEELING DIAMETER40mm-550mm
PEELING SPEED0m-100m/min
PEELING THICKNESS1mm-4mm
TOTAL WEIGHT6.5TCONTROLLERTOUCH SCREEN
Spindleless Wood Veneer Peeling MachineModel 1500 NC Integrated MachineModelConfigureMotorQuantity(Set)Double roller diameter 157mmK87 Hardened reducer5.5kw2Single roller diameter 125mmR87 Hardened reducer5.5kw2Fodder chopperRV90 reducer2.2kw1Fodder chopperRV90 reducer2.2kw1Feed screwR87 Hardened reducer7.5kw1Peeling thickness 1.3-3.6mm              Peeling speed 0-70m/minOutline dimension(L*W*H)5000*2300*1350mmMaximum opening600 mmMinimum core diameter26mmTotal weight81000KGControl systemRemote monitor

                            1.3METER NUMERICAL PEELING MACHINECompany brandJINGYUANMInimum of quantity1x20GPDelivery timeWithin 10 days after got your depositShipping portQingdao and LianyungangCompany locationOur company is next to Linyi city bus station, Shandong province, China.


1 hour from Qingdao Liuting Internation Airport and  qingdao high-speed station.
1.5 hours from Shanghai Pudong International Airport and shanghai high-speed station.
2.5 hours from Guangzhou Baiyun International Airport and guangzhou high-speed station.Payment terms20% T/T in advance, 80% in the period of shipmentContact informationMob: 0086-15806925262       Willian
