• Model NO.：HKY-roof roll forming machine
• Voltage：380V
• Thickness Range：0.2mm-1.0mm
• Type：Roll Forming Machine
• Transport Package：Export Packing
• Specification：9.2*1.5*1.4M
• Trademark：HKY
• Origin：China
• HS Code：8474801000
• Production Capacity：500sets,Year

Basic Info.

Model NO. HKY-roof roll forming machine Voltage 380V Thickness Range 0.2mm-1.0mm Type Roll Forming Machine Transport Package Export Packing Specification 9.2*1.5*1.4M Trademark HKY Origin China HS Code 8474801000 Production Capacity 500sets/Year

Product Description

Steel roof roll forming machine, cold roof roll forming machine, steel tile roof roll forming machine.


Manual Un-coiler	◊ Max Capacity: 5000kgs             ◊ Inner diameter of coil: 400-600mm◊ Manual with brake
Leveling Device	◊ Ensure the material level and straight ◊ The width can be adjusted
Auto Main Forming System	◊ Max Feeding width:1220 mm  ◊ Product width: 1000 & 1020 mm  ◊ Thickness of sheet: 0.2-1.0mm  ◊ Motor Power: 5.5 kw forming system ◊ Roller material: C45 steel  ◊ Diameter of shaft: Upper level 95 mm  ◊ Forming station: Upper level 12 stations.  ◊ Base Frame: 360 H steel welded..
Hydraulic Cutting Device	◊ Cutting way: pause to cut. ◊ Oil pump station 1set. ◊ Hydraulic power: 4 kw hydraulic system. ◊ Blade Material: CR12 with heat treatment HRC60-62.
Electrical System	◊ Control system: HMI & PLC control panel.  ◊ Power: 440V 50Hz (as per local requirement)
Run-out Table	◊ Frame: 8# steel groove welded ◊ Roller type. ◊ Quantity: 1 pc

Components of whole set roof roll forming machine:
The De-coiler
Coil Sheet Guiding and Adjusting Equipment
Film Covered Device
Main Roll Forming System
Post-Cutting Device
Hydraulic Station
PLC Control System
Support Table

Technical parameters of export standard roof roll forming machine:

1 Main motor power: 5.5KW
2 Hydraulic station power: 4KW
3 Hydraulic oil pump: CB-E310
4 Sprocket: P-25.4
5 Roller station: 16
6 Yield strength: 32MPa
7 Diameter of principal axis: 80MM (add a key between axle and roller to fix)
8 Material of roller: C45steel hard chrome plating
9 Processing speed: 8-15m/min(we can do 15m/min also, but we recommend 8m/min)
10 Thickness: 0.2-1.0mm
11 Installation dimension about(L*W*H): 9.2*1.5*1.4M
12 Total weight: About 6.6T
13 Equipment parts includes: Decoiler (capacity 8t), roll forming system, hydraulic system, PLC frequency conversion control system, the sensor of length, cutting system.
14 The temperature range of working line: -35--50

We also can design and manufacture as per your request!

Please check our machine photoes as below,

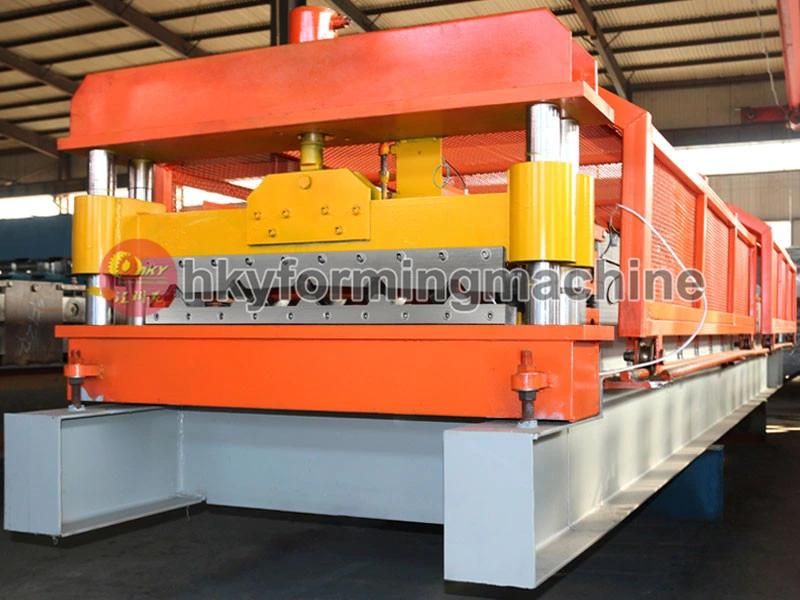

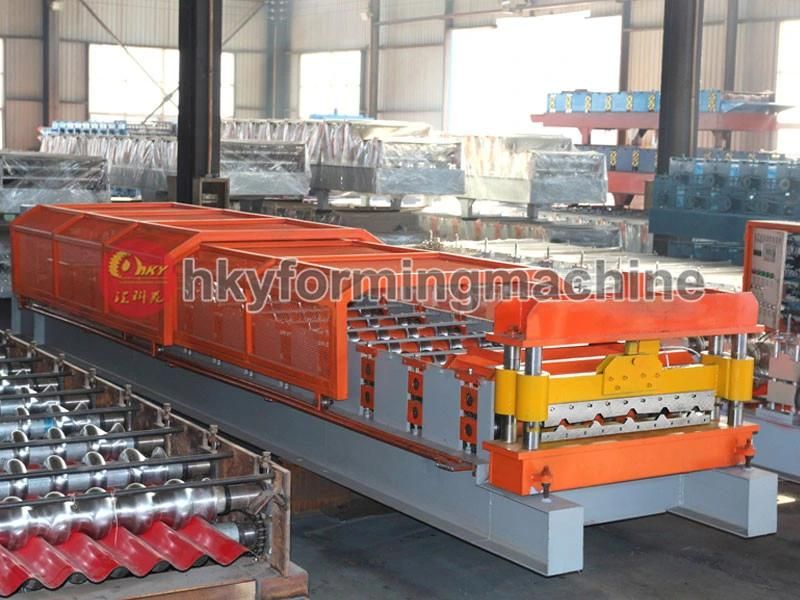

1. single roof sheet roll forming machine

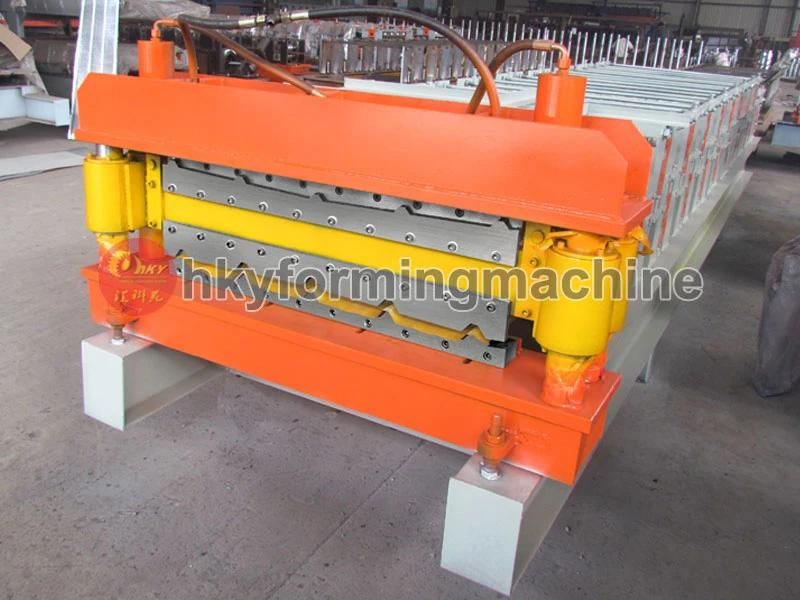

2. Double deck roofing sheet roll forming machine

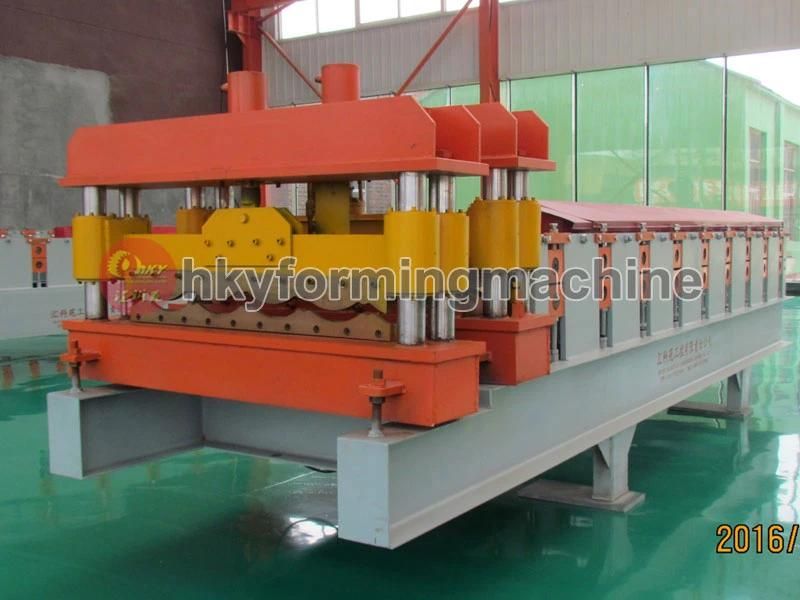

3. Glazed tile roof sheet roll forming machine
Our Company

Botou Huikeyuan Engineering Control Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments

Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings

Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

Our customers

HKY, as a well known brand name of a roll forming equipments manufacturer in China, has exported its equipments and machines to more than 60 countries and areas over the world, such as Russia, India, UK, Australia, USA, KZ, TJK, Malaysia, Nigeria, Romania, Albania and it has received excellent reputation. In the future, we are committed to better equipments and sales service and meeting customers' requirements when and where they need.

FAQ

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.


Our Service

> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.
>TERMS:
1. Delivery: in stock
2. Package: Export Standard package for container
3. Payment: TT(30% by TT in advance, 70% by TT after you inspect the machine )
4. Validity: good for 30days
