Tungsten Carbide Rotor Tips for Barmac B96394049e VSI Crusher Spare Parts Manufacturer
Myloo Carbide Tool Ltd.- After-sales Service：Online or Site
- Standard：DIN, JIS
- Technics：Forging
- Feature：Wear Resistant
- Material：Tungsten Carbide+Steel
- Product Name：Rotor Bits for VSI Crusher
Base Info
- Hardness：90.5 - 91.0hra
- S.T.R.：1800 - 2000MPa
- Density：14.90g,cm3
- Grain Size：1.0 - 1.6μm
- Usage：Crush Artificial Sand
- Application：VSI Crusher Sand Making Machine
- Experience：18 Years
- Transport Package：Standard
- Specification：MT6Z
- Trademark：Myloo
- Origin：Zigong, China
- HS Code：820900
- Production Capacity：400-500tons,Year
Description
The Ultimate Crushing Solution

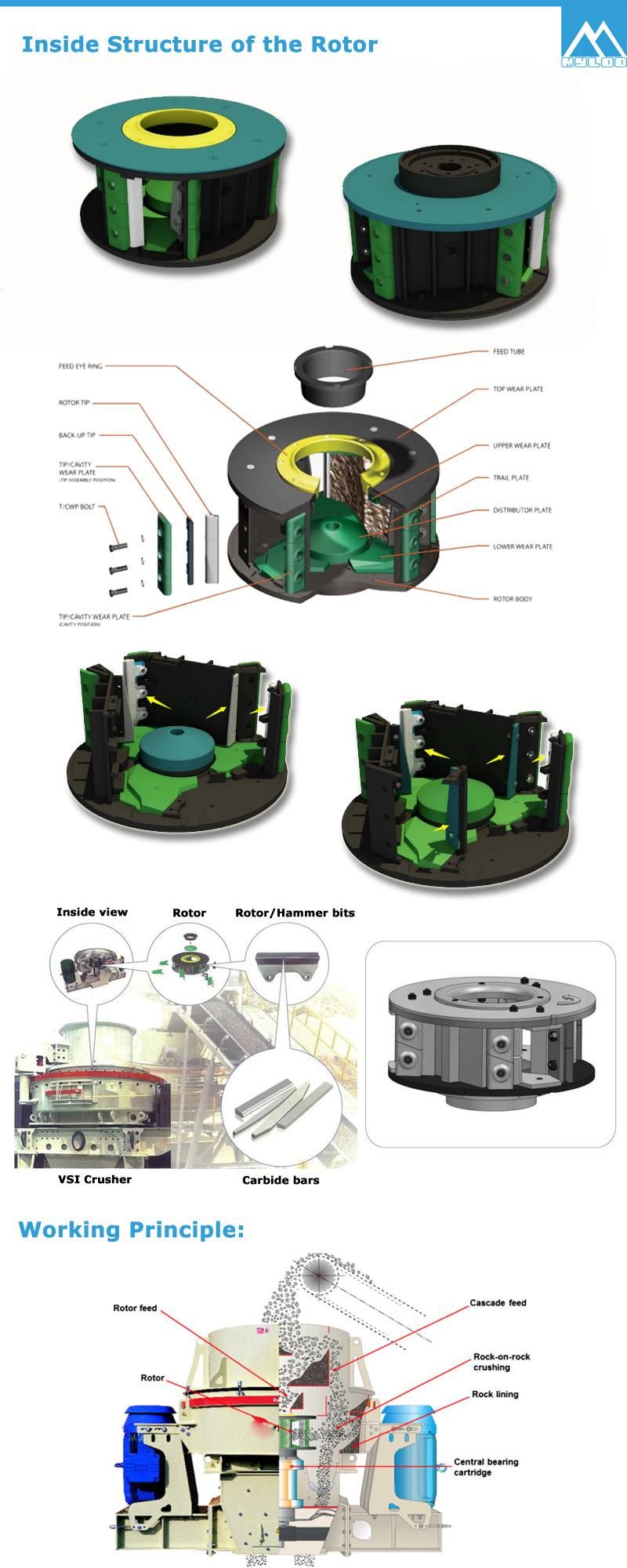

VSI Crusher are unique due to its crushing process. Whereas most other types of crusher use metallic parts to
crush, VSI uses the rock fed into the machine to crush itself. This crushing process produces the best shaped
aggregates. The high velocity impact crushing achieved in VSI improves the shape of stone, reducing product
moisture and thus easing the screening operations. With rock-on-rock crushing action there is advantage of
cost savings, durability and unmatched performance in variety of crushing tasks.

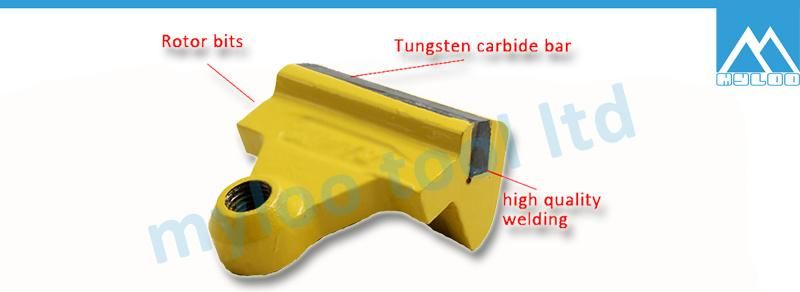

VSI Rotor Tips
With tungsten carbide bar welded, the rotor tips are widely used to crush various kinds of materials, such as
Granite, Basalt,Limestone,Quartzite, Gneiss, Cement Clinker, Concrete Aggregate, Ceramic Materials, Iron Ore,
Gold Ore, Cooper Ore, Corundum, Bauxite, Silica etc.
We provide combined welded carbide bar and rotor bits as a set, which makes quality superior
to most competitors.
Q&A:
1. Why You Say Your Tungsten Carbide Bars Have Much Better Performance?
-Coarse enough of grain size to be favorable for welding, especially in cold weather.
- Lower Cobalt without broken, longer wear-resistance.
We never stop finding better grade with much longer wear-resistance to save clients' cost. Now we are testing
new grade with coarse grain size for Europe market, it works well. Also we are making another 3 kinds of new
grade to test and compare with current grade. If it goes well, next step we will try to test it for America market first.
2.How You Control the Quality of The Carbide Bars?
-Much strict control on scrap carbide to ensure stable quality of carbide powder.
All is from qualified carbide rods with grain size 0.8-1.0um, like end mill, reamer, drills. Other carbide
manufacturers usually use carbide drill bits or anvil with grain size 1.2/1.6/2.0 mixed.
-Our special creative sintering process to ensure uniform grain size 2.4um.
Carbide manufacturers usually sinter it by Intermediate Frequency Furnace with temperature 1500ºC, that the
heat-difference can be 70-80ºC causing non-uniform grain size. We use Vacuum Sintering Furnace with "secret"
temperature without heat-difference to ensure uniform grain size 2.4um.
3.Do You Accept OEM&ODM?
Yes, for sure, we can cutomize the grade and shape upon your drawings or samples. Such as, make the grain coarse or add
more cobalt to increase its hardness. Make balance on hardness and toughness.
