Spiral Welded Pipe Mill/Tube Mill, Pipe Production Line, Tube Forming Machine of API Stardard Price
Taiyuan Huaye Equipment Research Institute (Co., Ltd.)- After-sales Service：Available
- Warranty：1 Year
- Pipe Material：Carbon Steel
- Condition：New
- Customized：Customized
- Application：Industry
Base Info
- Model NO.：Lh1500-3200-25
- Type：Pipe Welding Machine
- Model：Lh1500-3200-25
- O.D.：610-3200mm
- Thickness：6-25.4 mm
- Pipe Length：8-12m
- Capacity：200kw
- Max.Coil Weight：30t
- Material：Q235, Q345
- Equipment Type：Front Swing, Stop During Coil Change
- Forming Machine：3-Roll Bending with out-Control Arm
- Transport Package：in Nude
- Trademark：HUAYE
- Origin：China
- Production Capacity：15-30,Year
Description
Basic Info.
Model NO. Lh1500-3200-25 Type Pipe Welding Machine Model Lh1500-3200-25 O.D. 610-3200mm Thickness 6-25.4 mm Pipe Length 8-12m Capacity 200kw Max.Coil Weight 30t Material Q235, Q345 Equipment Type Front Swing, Stop During Coil Change Forming Machine 3-Roll Bending with out-Control Arm Transport Package in Nude Trademark HUAYE Origin China Production Capacity 15-30/YearProduct Description
Introduction:Spiral pipe can be made from a variety of raw materials, such as carbon steel, galvanized steel, stainless steel, aluminum, and coated metals. A wide range of diameters can be made from almost any width of raw material, and as a result, inventory requirements can be reduced.
Spiral welded pipe mill is HUAYE most competitive, most mature technical characteristics product. Product specifications range from Φ60mm to Φ3000mm, divided into international-type mills, special series mills and so on.
Usage of spiral welded pipes
For liquid delivery: water supply& drainage
For gas delivery: coal gas, steam and LPG
For structural use: piling pipe, structural pipe in the field of bridge, dock, road, and construction, etc.
Technical process of the spiral welded pipe line
feeding→uncoiling→leveling→shearing& butt welding→rotary shear→edge milling→main drive→pre-bend& guide board→forming→inside welding→outside welding→cutting off→pull out→end-facing& beveling→hydrotesting→collection

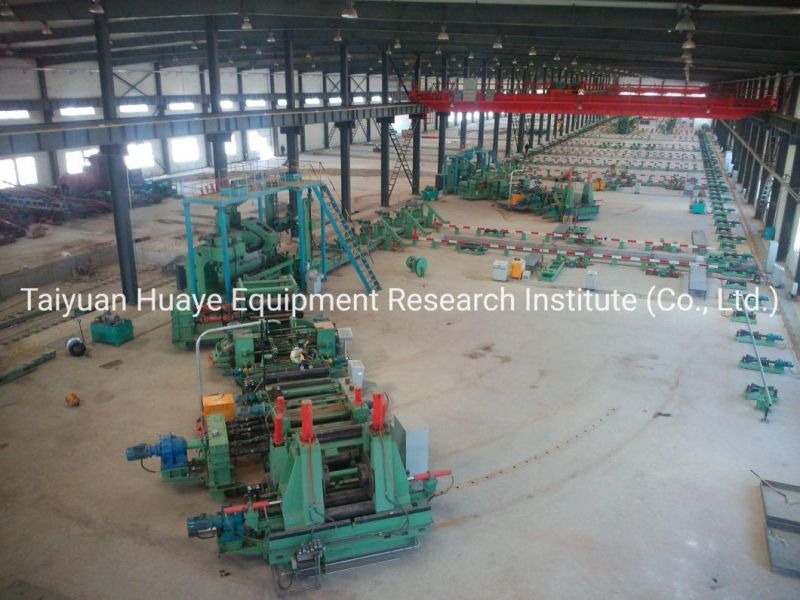

Machine parts in the working line
1) Uncoiled
2) Pinching & leveling machine
3) Manual/Electrical roll
4) End - Cutting & butt-welding machine
5) Rotary shear
6) Delivery machine
7) Guide board
8) Forming unit
9) Front bridge
10) Inside/outside welding device
11) Rear bridge
12) Flying saw cutter
13) Buried parts
14) Hydraulic system
15) Electric system
16) Inside/outside welder
17) Butt-weld car
18) Plasma cutter
19) Weld flux processing device
20) Beveling & end-facing machine
21) Hydraulic tester
22) Finishing equipment
