Blkma U-Shape Automatic Duct Line 5 / Air Duct Machine Manufacturer
Anhui Blackma Heavy Industrial Machinery Co., Ltd.- After-sales Service：Engineers Available to Service Machinery Overseas
- Warranty：1.5 Year
- Pipe Material：Galvanized Sheet, Steel Sheet, etc.
- Condition：New
- Customized：Customized
- Theory：Pulse
Base Info
- Model NO.：ADL-5U-1300
- Application：Industry, Duct
- Type：Pipe Production Line
- Voltage：220V,240V,380V,415V,440V,etc.
- Power：30 Kw
- Max Coil Weight：7 T
- Weight：13 T
- Max Width of Sheet Metal：1300 or 1500 mm
- OEM：Available
- Certification：CE
- Transport Package：Standard Package
- Specification：12000*5500*1500 mm
- Trademark：BLKMA
- Origin：China
- HS Code：8462219000
- Production Capacity：200 Sets,Month
Description
2. Japan Mitsubishi CNC system
3. Japan Omron encoder
4. Taiwan Hiwin linear guideways
5. Schneider electrical system
2. One rack
3. One host (line 2 host)
4. Two stainless steel roller convey platforms
5. One fixed joint locking machine
6. One duplex TDF flange forming machine
7. One duplex angle steel flange forming machine
8. One servo feeding platform
9. One hydraulic folding machine
10. One set of computer controlling system
Sheeting
thickness
(mm)
Max width
(mm)
Max
working
speed
(m/min)
Max
weight
of coil
(T)
Dimension
L*W*H
(mm)
Power
(kw)
Weight
(T)

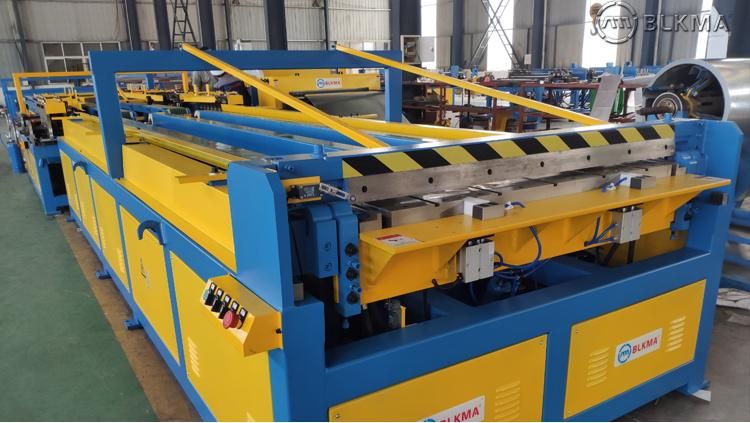

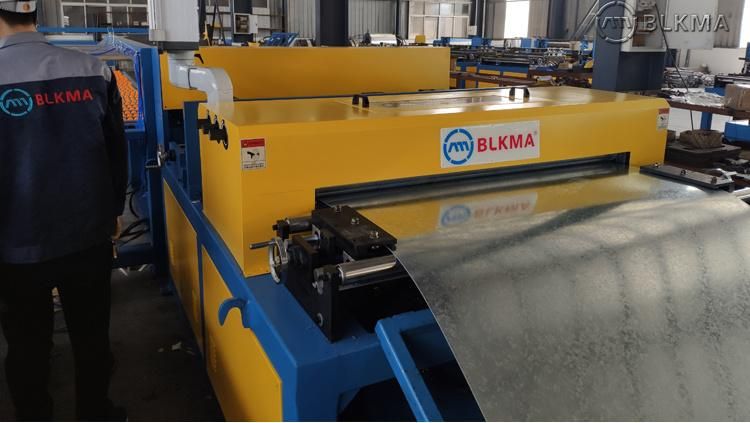

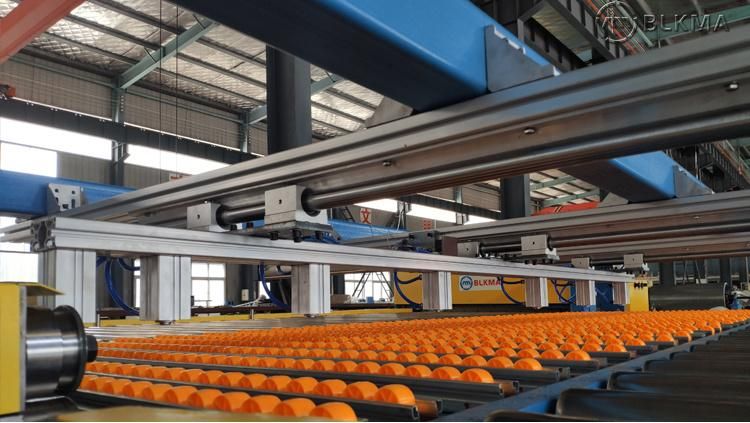

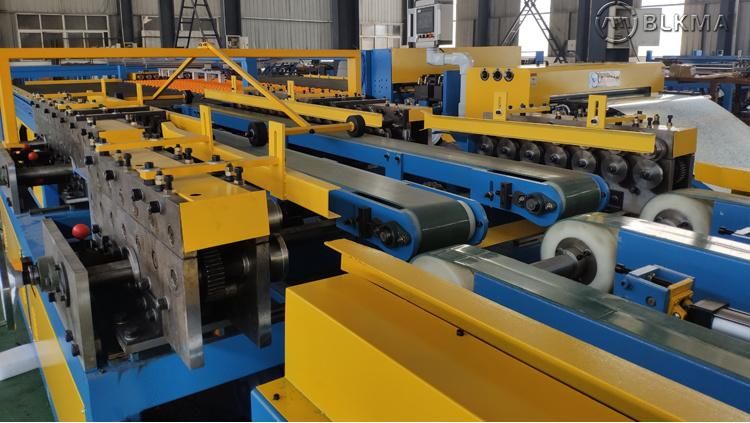

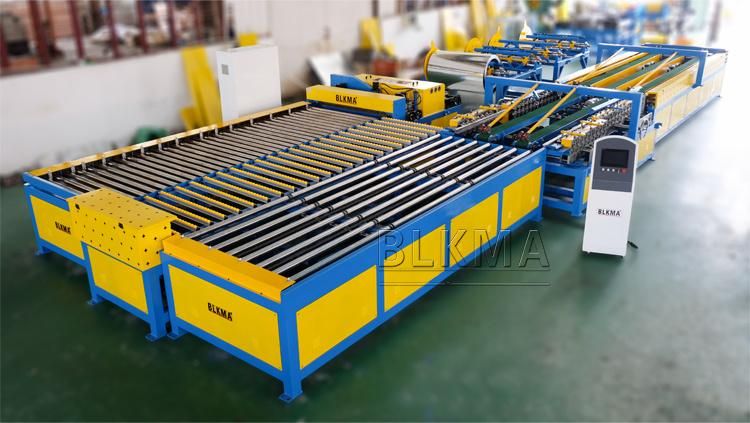

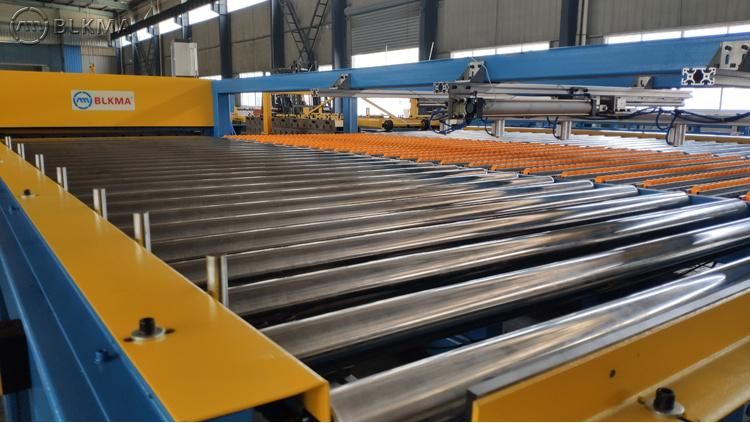

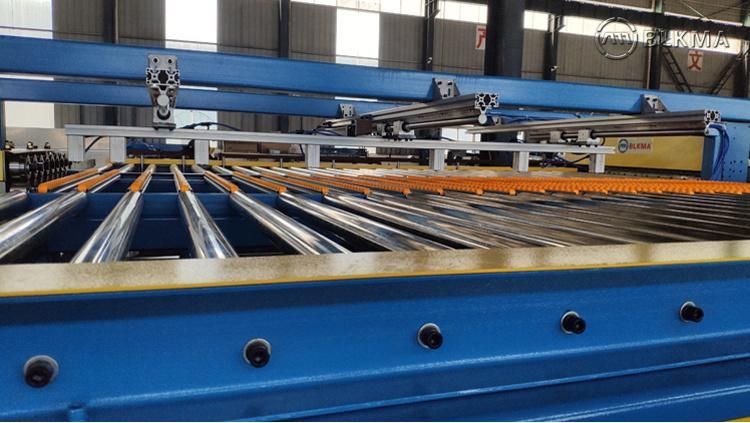

Detailed Images:

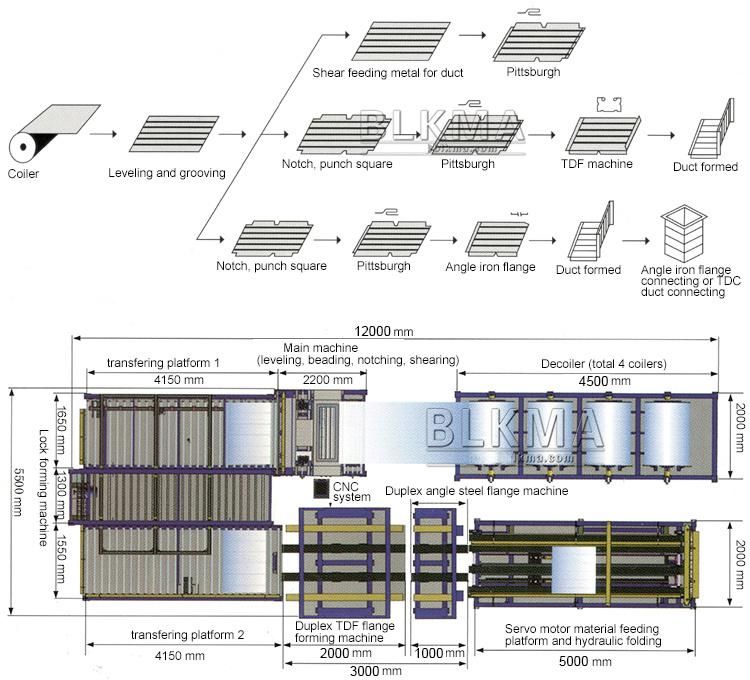

Working Schematic Diagram & Working Flow:
FAQ:
1. Are you manufacturer or trading company?
We are manufacturer.
2. What shall we do if don't know how to operate your machine?
We can dispatch our engineers to your country and you can also send your engineers to our
factory for learning operation. Besides, there are detailed installation and operating instructions
attached, it is very simple. We have telephone and email support at 24 hours per day.
3. What are your payment terms?
We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance
before the shipment.
4. OEM is available?
Yes.
5. What's your package?
There're two package methods. One method is that machines will be fixed directly in a whole
container without wooden box when total machines dimensions need a container, in this
situation, machines will be transported by FCL (full container load). Another method is that
machines will be packaged with wooden box when total machines dimensions are small which
does not need a whole container, in this situation, machines will be transported by LCL (less
than container load).
Both of these two package methods are safe.
