• Model NO.：GSGZ-CNC-7000
• Y-Way Range：800mm
• Z-Way Range：320mm
• X-Way Speed：0~60m,Min
• Y-Way Speed：0~24m,Min
• Z-Way Speed：0~16m,Min
• Main Shaft Rev.：0~24000rpm
• Cutter Magazine：ISO 30 12 Cutter Positions
• Cutter Max Length：135mm
• Total Power：12kw
• Type of Clamping：8 Sets, Manual Locate and Penmatic Loked
• Work Area：500*250*7000mm
• Power：7.5kw
• Contour Dimension：11300*2350*2550mm
• Weight：4500kg
• Transport Package：Pallet
• Specification：11300x2350x2550mm
• Trademark：TIANCHEN
• Origin：China
• HS Code：8461409000
• Production Capacity：2000sets,Year

Basic Info.

Model NO. GSGZ-CNC-7000 Y-Way Range 800mm Z-Way Range 320mm X-Way Speed 0~60m/Min Y-Way Speed 0~24m/Min Z-Way Speed 0~16m/Min Main Shaft Rev. 0~24000rpm Cutter Magazine ISO 30 12 Cutter Positions Cutter Max Length 135mm Total Power 12kw Type of Clamping 8 Sets, Manual Locate and Penmatic Loked Work Area 500*250*7000mm Power 7.5kw Contour Dimension 11300*2350*2550mm Weight 4500kg Transport Package Pallet Specification 11300x2350x2550mm Trademark TIANCHEN Origin China HS Code 8461409000 Production Capacity 2000sets/Year

Product Description

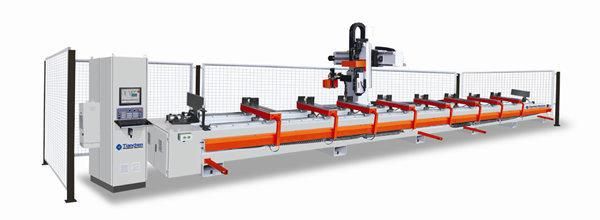

High Speed Four Axis CNC Window and Door Making Machine                                                                                   GSGZA-CNC-7000
Machine Features1. Adopting SIEMENS high performance CNC system, coordinated with three-dimensional programming software,
perfectly realized the milling process.2. Adopting original imported high quality control system, servo motor. With high quality ball screw, linear guide rail
pair, bearing and other parts to make sure a high processing accuracy.3. The fixture can be located freely.4. Double worktable can process two pieces or two types of profile, interactive loading without interfere each other.5. Equipped with 12 position cutting tool, and able to automatically changing tools.6. Adopting high speed electrical spindle imported from Italy, able to finished the process of any angle within ±90°,
with extremely high working efficiency.7. A 9 meter extra length model can be customized.Technical Parameters

X-axis Range	7000mm
Y-axis Range	1300mm
Z-axis Range	550mm
X-axis Speed	0~60m/min
Y-axis Speed	0~30m/min
Z-axis Speed	0~20m/min
Main shaft Rev./power	0~18000rpm/7.5kw
Gyrating Range	-90°~0°~+90°
Cutter Magazine	12 cutter positions, cutters auto-change is available in the program
Cutter Max length	165mm
Total Power	13KW
Clamp Station	8
Work Area(W x H x L)	650x250x7000mm(top) 435x250x7000mm(side)
Contour Dimension (W x H x L)	11300x2350x2550mm
Weight	4500kg
