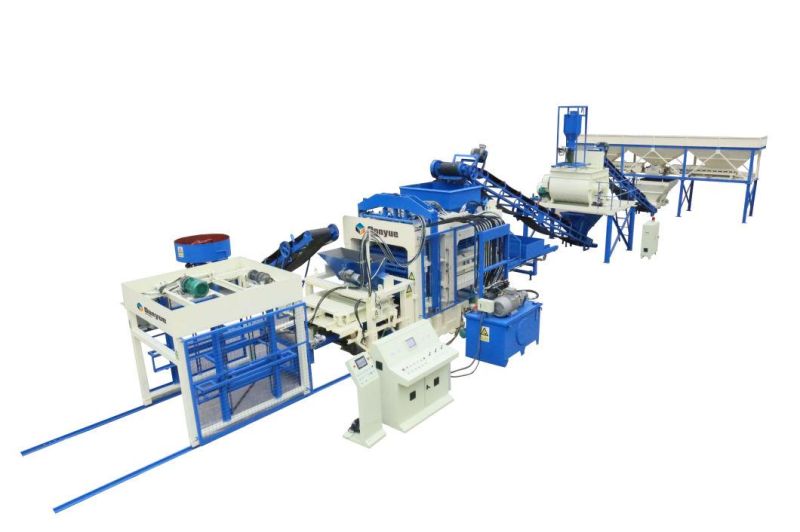

Top Quality Brick Making Machinery Cement Brick in Nepal
Dongyue Machinery Group Co., Ltd.- After-sales Service：Online
- Warranty：1 Year
- Certification：CE, ISO, SGS
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
Base Info
- Model NO.：QT12-15 brick machine
- Key Selling Points：Easy to Operate
- Brick Size：200*100*60 mm, 240*115*90 mm, 400*200*200 mm
- Raw Material：Fly Ash,Cement,Concrete
- Vibration Force：100-130kn
- Pallet Size：1400*900*35mm
- Transport Package：Host Machine Nude Packing
- Specification：3800*2500*3550mm
- Trademark：Donyue
- Origin：China
- Production Capacity：17280 PCS,8 Hours
Description
100-130KN
Part 1 Use
The QT12-15 block forming machine is newly developed by our company, is a special equipment for producing building blocks. The machine can use fly ash, slag, coal gangue or other industrial waste residue and river sand, gravel, cement and other materials to produce hollow blocks, perforated bricks, curbs, pavers and grasses of various specifications by changing the mold. Concrete products such as bricks, ring tree bricks, and slope protection bricks. Plus fabric fabrics can also produce layered products. After the product is formed, the stacking is directly carried out, and the pallet
maintenance is not required, thereby saving the input and maintenance of the pallet.
Part 2 Structural features
The main frame of QT12-15 block forming machine adopts detachable vertical double frame structure,which is made of super large and strong steel. It is strong and vibration resistant and has good reliability. It adopts indenter and stripping double clamping method to ensure reliable movement of product removal and swaying. The structure, the fabric is fast and uniform, the product strength error is very small, the stability is high, and the scrap rate is low.
Part 3 Electronic control intelligence
The automatic process uses advanced foreign PLC(programmable controller) intelligent control, equipped with product process data.Input, storage, touch screen, and has an ideal and flexible man-machine dialogue interface. The imported electrical and hydraulic components enable the two systems to basically operate without problems, and the advanced random detection control system realizes remote control and fault diagnosis.
Part 4 Reliable hydraulic system
The hydraulic system design with perfect technology and well-made hydraulic components is optimized. The independent integrated hydraulic station avoids the influence of the host vibration and dust on the hydraulic system, thus ensuring the reliability of the hydraulic system.
Part 5 Equipment adaptability
Pure vertical table mode resonance, fully automatic frequency modulation and amplitude modulation, truly realizes "one machine multi-energy". By simply changing the mold, the product production can be quickly adjusted to maximize the market's demand and maximize the effectiveness of the equipment.
Part 6 Feeding system
Part 1 Use
The QT12-15 block forming machine is newly developed by our company, is a special equipment for producing building blocks. The machine can use fly ash, slag, coal gangue or other industrial waste residue and river sand, gravel, cement and other materials to produce hollow blocks, perforated bricks, curbs, pavers and grasses of various specifications by changing the mold. Concrete products such as bricks, ring tree bricks, and slope protection bricks. Plus fabric fabrics can also produce layered products. After the product is formed, the stacking is directly carried out, and the pallet
maintenance is not required, thereby saving the input and maintenance of the pallet.
Part 2 Structural features
The main frame of QT12-15 block forming machine adopts detachable vertical double frame structure,which is made of super large and strong steel. It is strong and vibration resistant and has good reliability. It adopts indenter and stripping double clamping method to ensure reliable movement of product removal and swaying. The structure, the fabric is fast and uniform, the product strength error is very small, the stability is high, and the scrap rate is low.
Part 3 Electronic control intelligence
The automatic process uses advanced foreign PLC(programmable controller) intelligent control, equipped with product process data.Input, storage, touch screen, and has an ideal and flexible man-machine dialogue interface. The imported electrical and hydraulic components enable the two systems to basically operate without problems, and the advanced random detection control system realizes remote control and fault diagnosis.
Part 4 Reliable hydraulic system
The hydraulic system design with perfect technology and well-made hydraulic components is optimized. The independent integrated hydraulic station avoids the influence of the host vibration and dust on the hydraulic system, thus ensuring the reliability of the hydraulic system.
Part 5 Equipment adaptability
Pure vertical table mode resonance, fully automatic frequency modulation and amplitude modulation, truly realizes "one machine multi-energy". By simply changing the mold, the product production can be quickly adjusted to maximize the market's demand and maximize the effectiveness of the equipment.
Part 6 Feeding systemParticular storage and discerption material systems ensure feeding accuracy and avoid the effect of exterior material.QT12-15 hydraulic press brick machine concrete brick making machine fly ash brick machine
Part 1 Use
The QT12-15 block forming machine is newly developed by our company, is a special equipment for producing building blocks. The machine can use fly ash, slag, coal gangue or other industrial waste residue and river sand, gravel, cement and other materials to produce hollow blocks, perforated bricks, curbs, pavers and grasses of various specifications by changing the mold. Concrete products such as bricks, ring tree bricks, and slope protection bricks. Plus fabric fabrics can also produce layered products. After the product is formed, the stacking is directly carried out, and the pallet
maintenance is not required, thereby saving the input and maintenance of the pallet.
Part 2 Structural features
The main frame of QT12-15 block forming machine adopts detachable vertical double frame structure,which is made of super large and strong steel. It is strong and vibration resistant and has good reliability. It adopts indenter and stripping double clamping method to ensure reliable movement of product removal and swaying. The structure, the fabric is fast and uniform, the product strength error is very small, the stability is high, and the scrap rate is low.
Part 3 Electronic control intelligence
The automatic process uses advanced foreign PLC(programmable controller) intelligent control, equipped with product process data.Input, storage, touch screen, and has an ideal and flexible man-machine dialogue interface. The imported electrical and hydraulic components enable the two systems to basically operate without problems, and the advanced random detection control system realizes remote control and fault diagnosis.
Part 4 Reliable hydraulic system
The hydraulic system design with perfect technology and well-made hydraulic components is optimized. The independent integrated hydraulic station avoids the influence of the host vibration and dust on the hydraulic system, thus ensuring the reliability of the hydraulic system.
Part 5 Equipment adaptability
Pure vertical table mode resonance, fully automatic frequency modulation and amplitude modulation, truly realizes "one machine multi-energy". By simply changing the mold, the product production can be quickly adjusted to maximize the market's demand and maximize the effectiveness of the equipment.
Part 6 Feeding system
Part 1 UseThe QT12-15 block forming machine is newly developed by our company, is a special equipment for producing building blocks. The machine can use fly ash, slag, coal gangue or other industrial waste residue and river sand, gravel, cement and other materials to produce hollow blocks, perforated bricks, curbs, pavers and grasses of various specifications by changing the mold. Concrete products such as bricks, ring tree bricks, and slope protection bricks. Plus fabric fabrics can also produce layered products. After the product is formed, the stacking is directly carried out, and the pallet
maintenance is not required, thereby saving the input and maintenance of the pallet.
Part 2 Structural features
The main frame of QT12-15 block forming machine adopts detachable vertical double frame structure,which is made of super large and strong steel. It is strong and vibration resistant and has good reliability. It adopts indenter and stripping double clamping method to ensure reliable movement of product removal and swaying. The structure, the fabric is fast and uniform, the product strength error is very small, the stability is high, and the scrap rate is low.
Part 3 Electronic control intelligence
The automatic process uses advanced foreign PLC(programmable controller) intelligent control, equipped with product process data.Input, storage, touch screen, and has an ideal and flexible man-machine dialogue interface. The imported electrical and hydraulic components enable the two systems to basically operate without problems, and the advanced random detection control system realizes remote control and fault diagnosis.
Part 4 Reliable hydraulic system
The hydraulic system design with perfect technology and well-made hydraulic components is optimized. The independent integrated hydraulic station avoids the influence of the host vibration and dust on the hydraulic system, thus ensuring the reliability of the hydraulic system.
Part 5 Equipment adaptability
Pure vertical table mode resonance, fully automatic frequency modulation and amplitude modulation, truly realizes "one machine multi-energy". By simply changing the mold, the product production can be quickly adjusted to maximize the market's demand and maximize the effectiveness of the equipment.
Part 6 Feeding systemParticular storage and discerption material systems ensure feeding accuracy and avoid the effect of exterior material.QT12-15 hydraulic press brick machine concrete brick making machine fly ash brick machine
