• Model NO.：SHM2-10
• PLC：Delta
• Motor Brand：Siemens
• Hydraulic Pressure：40t
• Material：Clay or Stone Dust
• Oil Cylinder Size：125mm
• Color：Customerized
• Pump Type：Plunger Pump
• Block Size：300X150X100

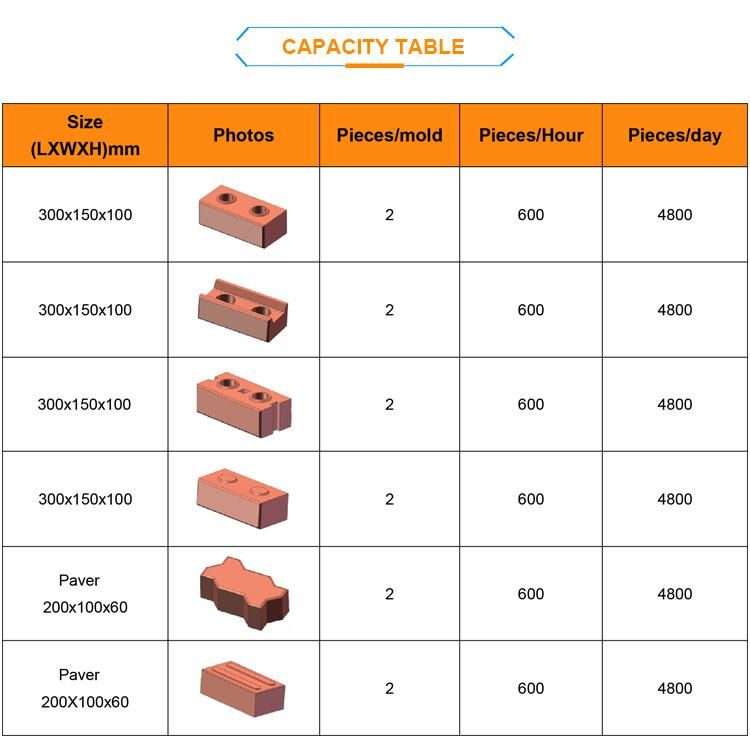

• Capacity：10000 Pieces Per Day
• Solenoid Valve Brand：Calyca
• Operation：Automatic
• Weight：2100kgs
• Working Hydraulic Pressure：25MPa
• Name：Block Machine
• Woking Site：100m2
• Transport Package：Nude Packing
• Specification：2.2X1.6X2.1
• Trademark：SHENGMING
• Origin：China
• HS Code：84748020
• Production Capacity：100 Sets Per Year

The whole machine adopts PLC automatic control system and advanced hydraulic components. The vane pump with strong silence is selected as the oil pump to provide strong oil pressure and greatly reduce the working noise.
The solenoid valve, the core component of the oil pressure system, is a well-known domestic brand. The added proportional valve can more accurately control the action of equipment and the compactness of products. The addition of water cooler greatly improves the stability of the whole machine.

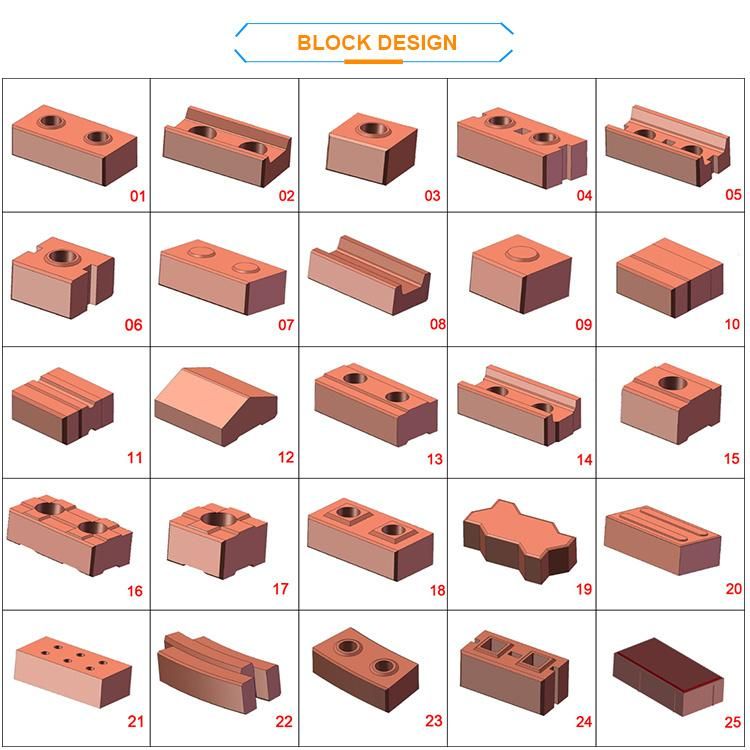

The machine can produce various styles of chain bricks and pavement bricks by changing molds, which makes it possible for customers to produce diversified products. It is an ideal equipment choice for medium-sized brick making machine factory!

SHM2-10 advantages
1. Silent gear pump is selected for oil pump (plunger pump is selected for airbag clamp version)
2. The whole machine is automatically controlled by PLC, and Delta PLC is adopted
3. The air bag clamp ensures that the bottom of the brick is flat and uniform
4. The upper and lower pressurization system ensures the compactness of bricks to the greatest extent
5. Proportional valve control, oil pressure adjustable Dimension of host machine2200X1600X2100MMTotal power of host machine11KWMachine weight2200 KGSHydraulic pressure40TShaping methodDouble side hydraulic pressProduction capacity(pieces/day)3000-5000Power supply380/415/440/220VForming Period15-18S
Shengming machinery has focused on block machine design, manufacturing and sale for more than 10 years.We not only provide brick making machines, but also provide one-stop procurement services, including installation, after-sales guidance, etc., to truly create value for customers.

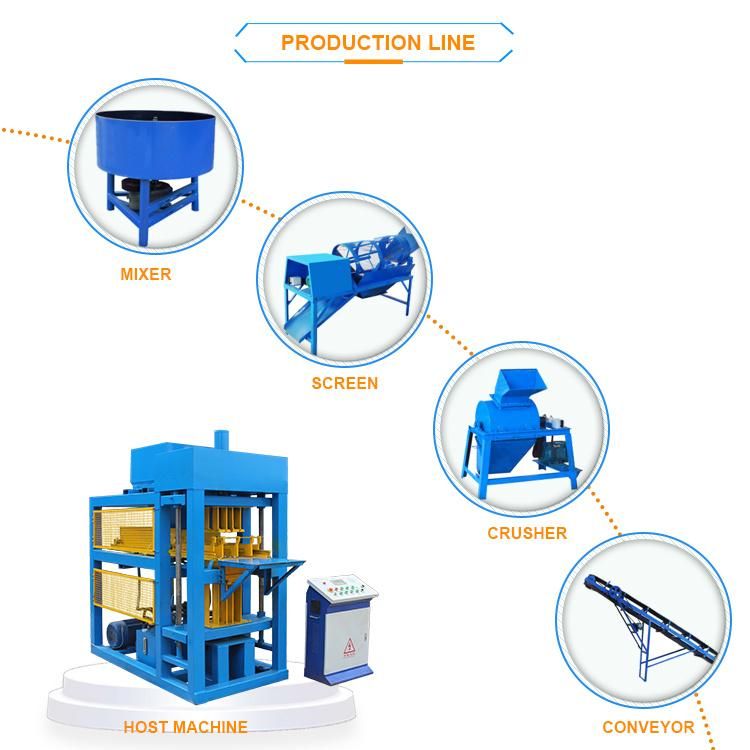

our main product including concrete brick machine,block machine,clay interlocking brick machine,hydraulic press brick machine,concrete batching plant,concrete mixer and other construction equipment.

So far, Shengming Machinery has been exported to more than 100 countries and regions all over the world. Distributed in Asia, Southeast Asia, Oceania, Central and South America, the Middle East and Africa.

Our customers rely on ShengMing to provide not only equipment, but a business solution.With the professional view,we will give the best suggestion on any block machine project all over the world."one-stop" purchase is available here,warmly welcome win-win cooperation in future.
Until now ,shengming machinery has exported to more than 100 countries and areas.our machine high quality earn more reputation from all over the world. we hope can provide more value machine for client and give more help for construction field. if you have any question about our machine, please consult me and we will give you best suggestion
FAQ:
Q: what is the material for this machine ?
A: you can use lateriate or other clay material or concrete material, plus a little cement

Q: How many kinds of block can be made by this machine ?
A: by changing mold, this machine can make all type design brick ,block or even paver.

Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally

Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years

Q:Will you provide installation support?
A: we will provide installation video and manual book.online video avaiable also.

Q:How many days to make the machine if place order?
A:Normally need 15-20 days but all depend on molds quantity.

Q: How about payment terms?
A:We accept LC or T/T payment. 30% down payment before production. 70% balance before shipping
