Metal Stud Track Light Steel Frame T Grid Bar Machine
Tianjin Haixing Imp. & Exp. Co., Ltd.- Certification：CE, RoHS, GS, ISO9001
- Customized：Customized
- Condition：New
- Control Type：CNC
- Automatic Grade：Automatic
- Drive：Hydraulic
Base Info
- Model NO.：t grid keel machine
- Name：Stud Track Light Steel Frame T Grid Bar Machine
- Roller Station：16rows Plus Leveling Device
- Main Frame：Square Steel Frame
- Shaft Diameter：70mm
- Shaft Material(Hard)：High Grade 45# Steel, Heated and Quenched, Cylindr
- Roller Material：Bearing Steel,Quenching and Tempering
- Forming Speed：20-35m,Min
- Motor Power：3kw or Customer′s Need
- Hydraulic Pump：7.5kw or Customer′s Need
- Voltage Standard：380V,3phases,50Hz
- PLC System：Delta Brand,Taiwan
- Size：5.6*0.8*1.3meters
- Weight：3.2tons
- Decoiler：1 Set Manual with Free
- Transport Package：Main Body Plastic Film, Spare Parts Put Carton Box
- Specification：5.6*0.8*1.5Meters
- Trademark：No
- Origin：China
- HS Code：84552210
- Production Capacity：200 Sets,Month
Description
Metal stud track light steel frame t grid bar machine parameters
Line structure
Portal-type frame style
Forming Roller Stations:
15----18 Stations
Forming Roller shaft:
φ36mm
Forming rollers
GCr15, Quenching, hardness HRC56-62º
Forming Speed:
30 meters/min
Main motor:
5.5kw
Sheet Thickness:
0.3 to 0.35 mm
Cutting mode:
Hydraulic automatic punching and cutting machine
Control mode
PLC
Hydraulic Punching system
Dies of notching both sides for CrossT ( 4 ft)
Dies of notching both sides for CrossT ( 2 ft)
Dies of the middle hole for Cross T( 4 ft)
Dies of overlap for CrossT

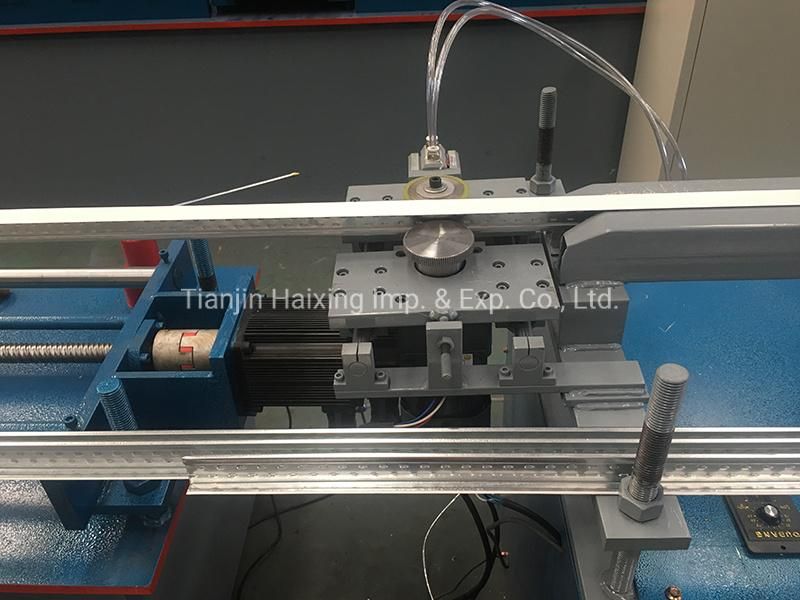

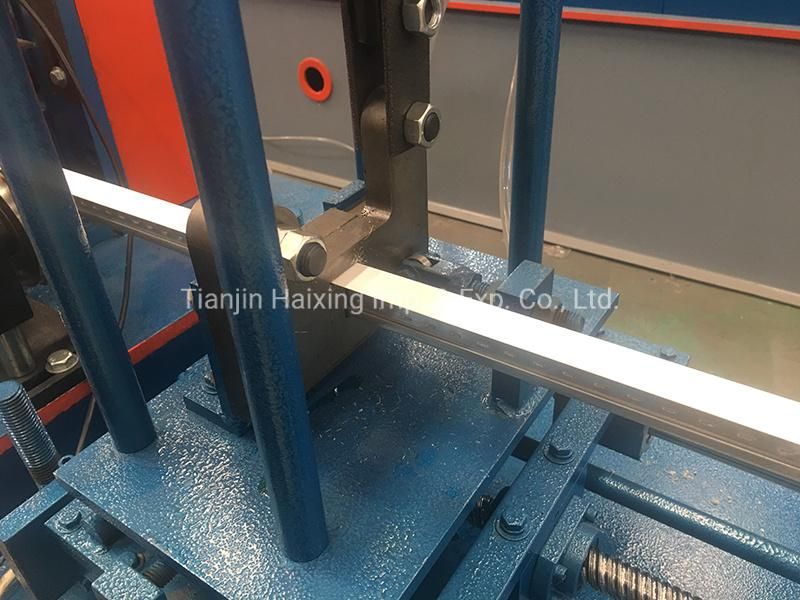

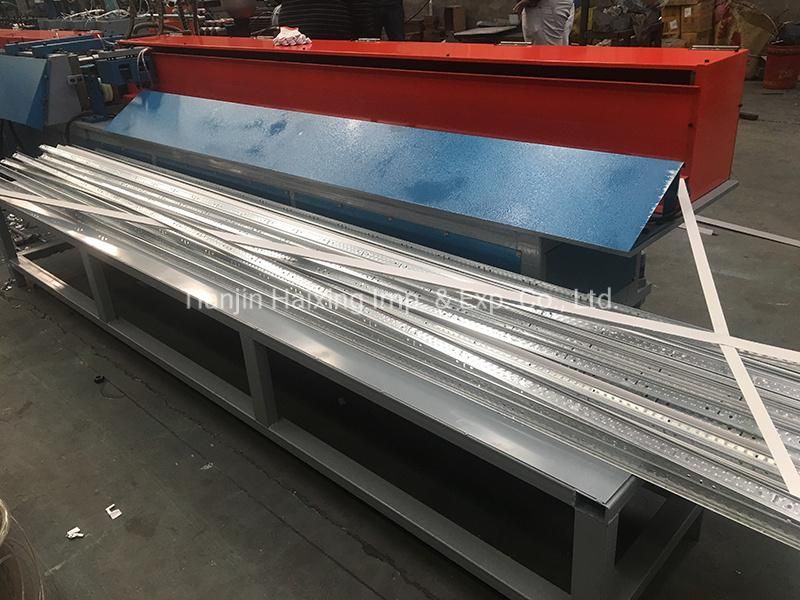

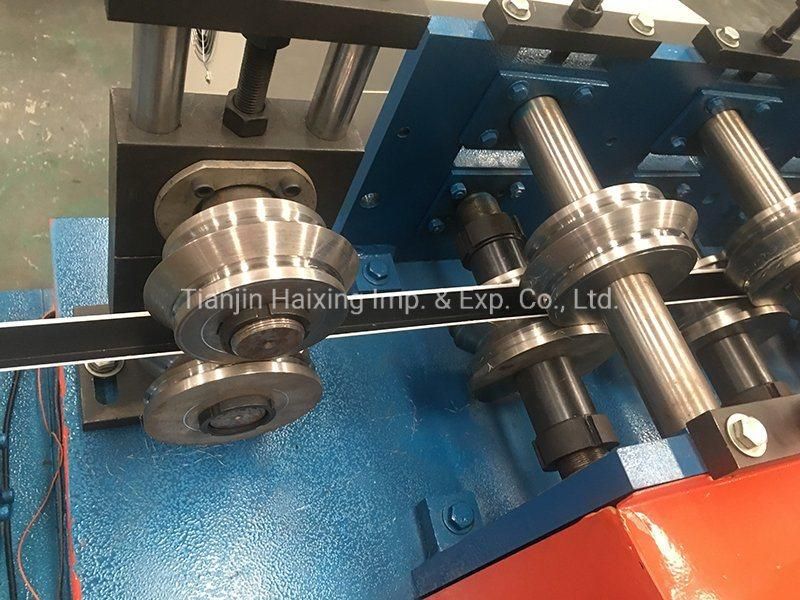

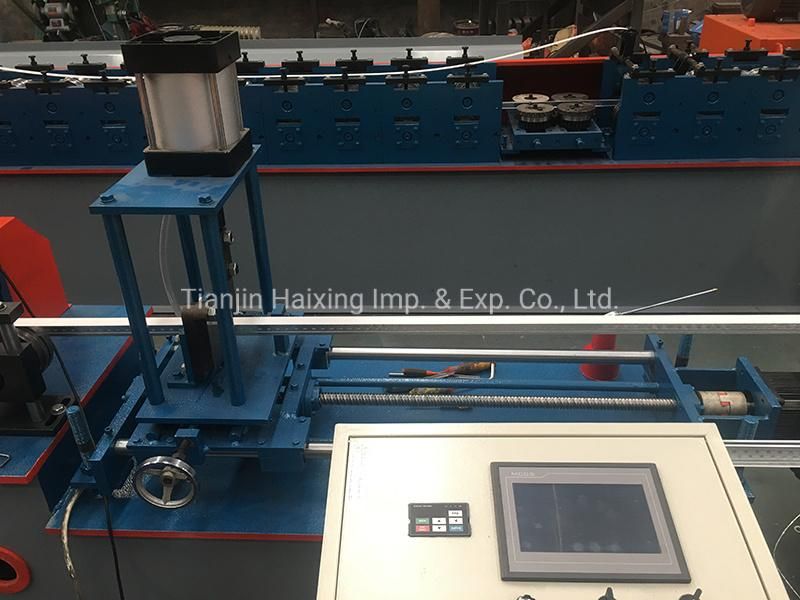

Details Images of Metal stud track light steel frame t grid bar machine

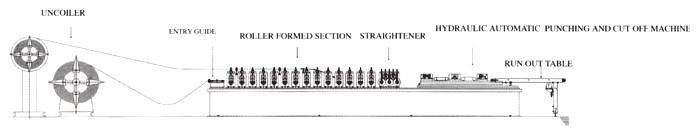

Production Flow of Metal stud track light steel frame t grid bar machine
Export standard packing of Metal stud track light steel frame t grid bar machine
1. The main body of the roll forming machine will be naked packing into the container, covered with plastic film.
2. Steel wire fixes the machine into the container, in case of any damage when shaking on the sea.

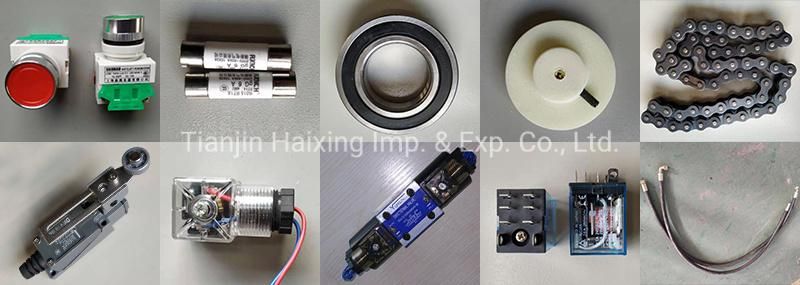

3. The spare parts will be packed into the carton box.
4. The received goods table put into a carton box.

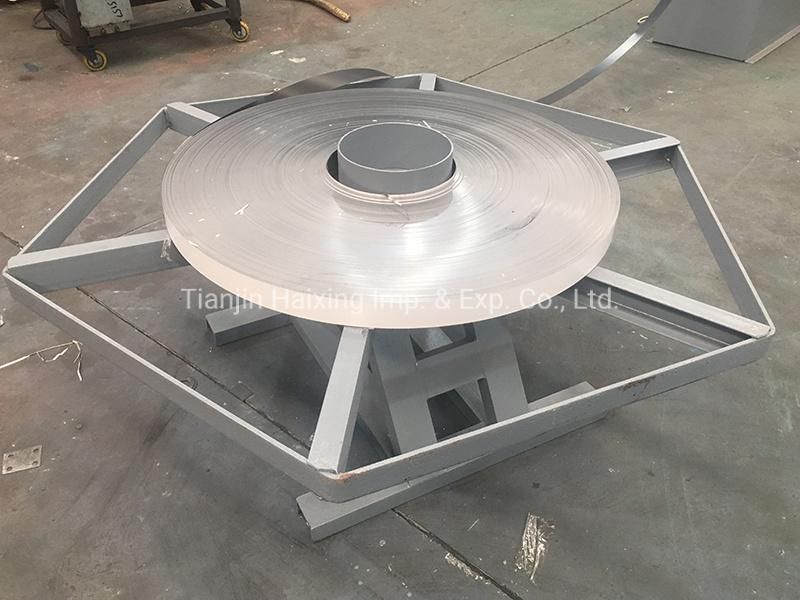

5. Manual decoiler naked package.
After Sales Service of Metal stud track light steel frame t grid bar machine
1. Warranty: One year, and we will provide technical support for the whole life of the equipment.
2. Delivery time: Within 25 days after deposit receipt your payment.
3. Guarantee period: 24months free service/ pay service all the machine life.
4. Installation and training.
If buyers visit our factory and check the machine, we will teach you how to install and use the machine and also train your workers/technicians face to face.
Company profile
Tianjin Haixing Imp & Exp Co., Ltd. is a manufacturer and exporter specializing in the design, development and production of cold roll forming machines. The company is located in the northwest of Tianjin, China, and cooperates with a number of production plants and related companies.

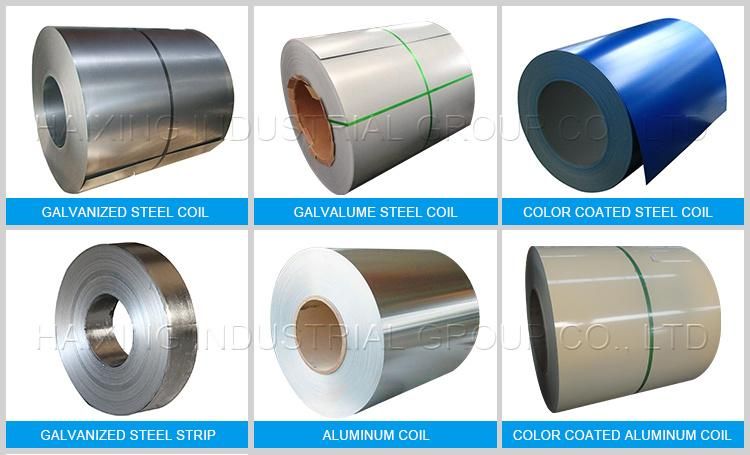

The company is specialized in manufacturing roof roll forming machines, floor deck roll forming machines, leveling and shearing machines, decoilers, C and Z purlin roll forming machines, slitting production lines, light steel keel roll forming machines, sandwich panel roll forming machine, highway guardrail roll forming machine, downspout & rain gutter roll forming machine, shutter door & door frame roll forming machine, and other associated equipment. We also provide products such as galvanized steel coils, galvalume steel coils aluminum coils, color steel coils.
As a production base of cold roll forming machines with a long history, we have cooperated with a number of production plants and related enterprises to focus on the design, development, and production of cold-formed machines. All products meet international quality standards and are highly evaluated in different markets around the world, including Asia, Africa, Europe, South America, Oceania and more.
FAQ
1. Q: Are you a manufacturer?
A: Yes, we are a manufacturer for cold roll forming machine over 12 years.
2. Q: if you can accept OEM? Design and manufacture according to our photo.
A: Yes, we can accept OEM, we owned an expert engineer team, professional design CAD drawings and use famous brand components according to your demands.
3. Q: What's the warranty for your machine?
A: We provide 2 years guarantee and provide lifetime technical support.
4. Q: How many workers are needed for the machine operation
A: One worker is enough, the machine uses an automatic PLC control system.
5. Q. Do you have after-sales support?
A: Yes, Our engineer can supply remote-video technical support and online support to teach your worker.
6. Q. Can you be responsible for transport?
A. Yes, we owned an expert export team, we can arrange for you to your destination port or address.
7. Q: What service can you provide before order?
A: About the pre-sale service, We provide professional solutions according to your demands, such as design, technical parameter, delivery flow, etc. At the same time, we can supply an invitation letter for your visit to our factory and showing the machine operation for you.
8. Q: What is the after-sale service?
A: We will supply lifetime technical support,quick-wear parts within 2 years, we also can provide field maintenance and repair service.
9. Q: Any other service?
A: We can help you purchase raw material for machine, help you check ship date, update for your ship date, etc.
10. Q: Any certification?
A: Yes, we have SGS ISO certification.
