Kq8-128 Automatic Cement Roof Tile Making Forming Machine in Africa
SHANDONG KAIDONG CONSTRUCTION MACHINERY CO., LTD.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Vibration Molding
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Product Name：Full Automatic Block Making Machine
Base Info
- Model NO.：KQ8-128 (KQ8-180)
- Weight of Host Machine：5t
- Mixer Model：Jq350 ,Jq500
- Voltage：380,415,440
- Host Machine Power：15kw
- Dimension of Host Machine：3300X2000X2500
- Color：Customized
- Pallet Size：420X330mm
- Hydraulic Force：128-180ton
- Transport Package：Suitable Shipping
- Specification：KQ8-128
- Trademark：KAIDONG
- Origin：Linyi
- HS Code：8474802000
- Production Capacity：200
Description
Basic Info.
Model NO. KQ8-128 (KQ8-180) Weight of Host Machine 5t Mixer Model Jq350 /Jq500 Voltage 380/415/440 Host Machine Power 15kw Dimension of Host Machine 3300X2000X2500 Color Customized Pallet Size 420X330mm Hydraulic Force 128-180ton Transport Package Suitable Shipping Specification KQ8-128 Trademark KAIDONG Origin Linyi HS Code 8474802000 Production Capacity 200Product Description

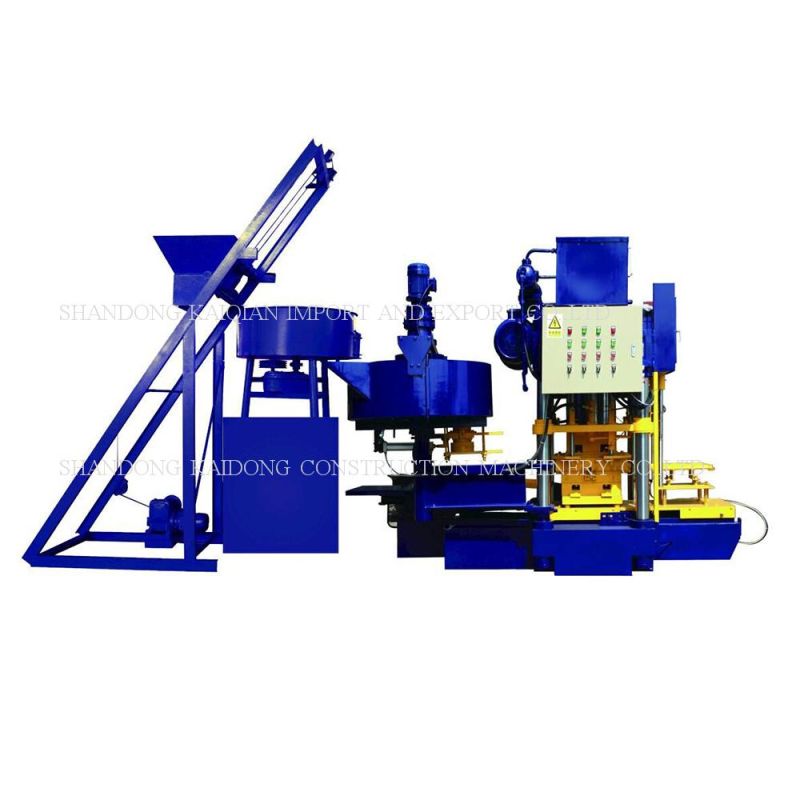

KQ8-128 (KQ8-180) roof tile machine basic introduction
KQ8-128 (180)roof tile machine is a new and popular equipment in modern society for making cement and concrete color roof tiles. KQ8-128 roof tile machine adopts advanced technology like PLC combine hydraulic
press. This roof tile making machine has better mechanism capability and economic benefit.KQ8-128 roof tile
machine is widely used in building and ancient architecture,etc.
(1). Fast forming speed,high production. Four-Post Type Tile Making Machine features PLC automatic control, host machine interface and dependable performance.
(2). After the mortar is mixing-rolled,the concrete tiles fabricated features is perfect, various style,high density, high intensity and accurate size, so that the concrete roof tiles can meet the needs of different constructions.KQ8-128 concrete roof tiles are best among concrete products

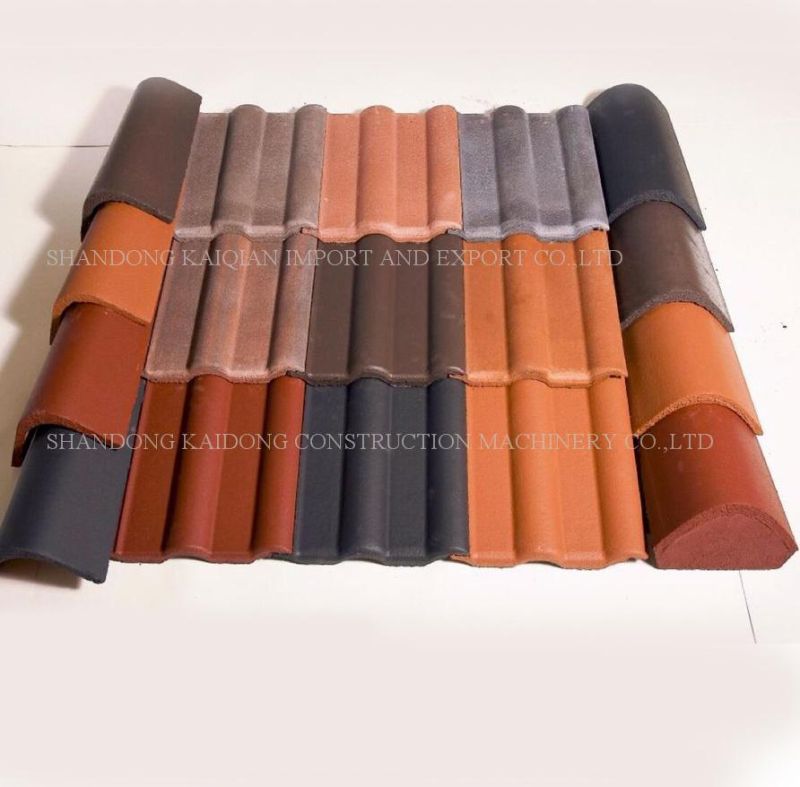

(3).The KQ8-128 roof tile making machine can be used for muti usage.By changing roof tile moulds, the equipment can produce various styles of main roman roof tiles,double roman roof tiles,ridge tiles,edge tiles and ditch tiles.Also KQ125 roof tile machine can produce different styles of high grade concrete roof tiles,floor tiles and paver bricks.
Main technical parameters
| No | Model | KQ8-128(KQ8-180) | Remark |
| 1 | Overall Dimension | 3300×1600×2480 mm | installed |
| 2 | Moulding Cycle | 8-10 s/ 6-9pcs/min | |
| 3 | Moulding Pressure | 128-180Ton | |
| 4 | Weight of Main machine | 5T | Main machine |
| 5 | Equipped power | 7.5 kw | |
| 6 | Mixer power | 5.5KW | |
| 7 | Production Capacity | 3000-4000 pcs/day | |
| 8 | Main Tile Size | 420×330 mm | Customized |
| 9 | Working power | Hydraulic pressure | No vibration |
| 10 | Operate workers | 3-4 people | |
| 11 | Mould type | CNC making | Automatic |
The Consist of roof tile machine:
| 1 | Main roof tile making machine | 1 set |
| 2 | Constant feeder machine/Quantitative feeder machine | 1 set |
| 3 | Mixer for concrete roof tile | 1 set |
| 4 | Elevator with bucket | 1 set |
| 5 | Mould for concrete roof tile | 1 set |
| 6 | Pallets for concrete roof tile | 2000 pcs |
| 7 | Concrete roof tile painting machine | 1 set |
| 8 | Air comprssor | 1 set |
We are professional roof tile machine and concrete brick making machine manufacture and exporter, company exported more than 90 countries and areas , products passed Europe CE standard .
We have many kind of automatic block machine price from 17000-90000 USD ,also have many semi-automatic block machine price from 850-7800 USD,can surely satisfy your needs , if you are interested about our machine ,welcome to contact with us
