• Model NO.：HKY-C purlin
• Hydraulic Oil Pump：CB-E310
• Sprocket：P-50.8
• Roller Station：12
• Yield Srength：32mpa
• Diameter of Principal Axis：80mm
• Material of Blade：Gcr15
• Material of Roller：45# Hard Cr Plating
• Total Weight：8t
• Transport Package：Standard Export Packaging
• Specification：9.5M*1.2M*1.4M
• Trademark：HKY
• Origin：Hebei Botou
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. HKY-C purlin Hydraulic Oil Pump CB-E310 Sprocket P-50.8 Roller Station 12 Yield Srength 32mpa Diameter of Principal Axis 80mm Material of Blade Gcr15 Material of Roller 45# Hard Cr Plating Total Weight 8t Transport Package Standard Export Packaging Specification 9.5M*1.2M*1.4M Trademark HKY Origin Hebei Botou Production Capacity 500 Sets/Year

Product Description

C Purlin Roll Forming Machine:

Purlin Forming Machine, C Purlin Machine, C Purlin,
Purlin Machine, C Purlin Forming, Forming Machine
C Purlin Roll Forming Machine







A. Technical Parameters

1. Main Motor Power: 11KW
2. Hydraulic Station Power: 5.5KW
3. Hydraulic Oil Pump: CB-E310
4. Sprocket: P-50.8
5. Roller Station: 12
6. Yield Strength: 32MPa
7. Diameter of Principal Axis: 80mm
8. Material of Roller: 45#steel hard chrome plating
9. Material of Blade: GCr15
10. Processing Speed: 8-12m/min
11. Thickness: 0.5-3mm
12. Installation Dimension (L*W*H): 9.5m*1.2m*1.4m
13. Total Weight: 8T
14. Equipment Parts: Forming machine, hydraulic cutter, hydraulic station, electric controlling system, counter, product supporter and hydraulic punching.

B. Advantages:

C-purlin machine and Z-purlin machine Series

The C and z purline formed by this purline forming machine has many advantages: Well compressive strength and flatness; Automatioc measureing, cutting and punching; High-level of automation and conviently installation.

C. Usage

It can be used in the main body stress structure of the large and medium-size enterprises civil construction, like the plant, the warehouse, locomotive shed, hangar, exhibition building, theatre, stadiums, roofing load-bearing load and wall surface support of the arbour.

This machine is composed of manual stacker, feed leading table, flattening device, main froming part, punching system, flat cuttingsystem, hydraulic station, computer control box.

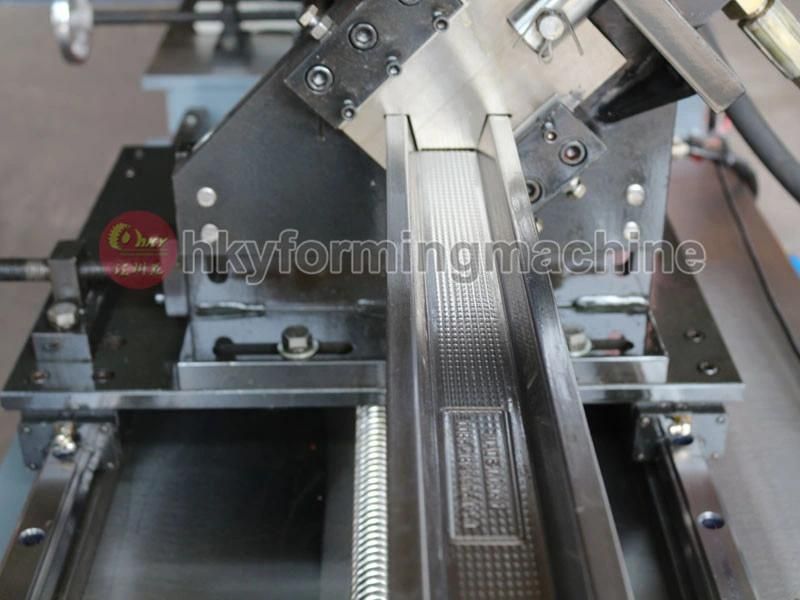

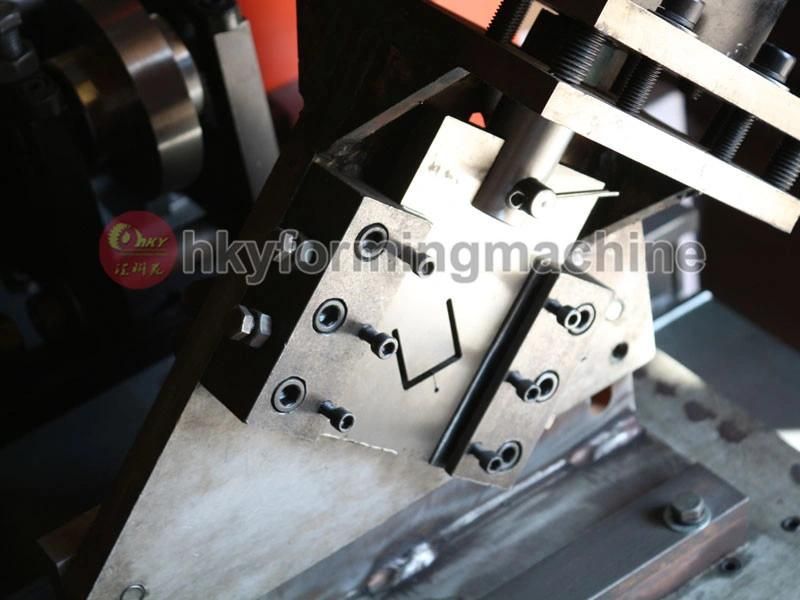

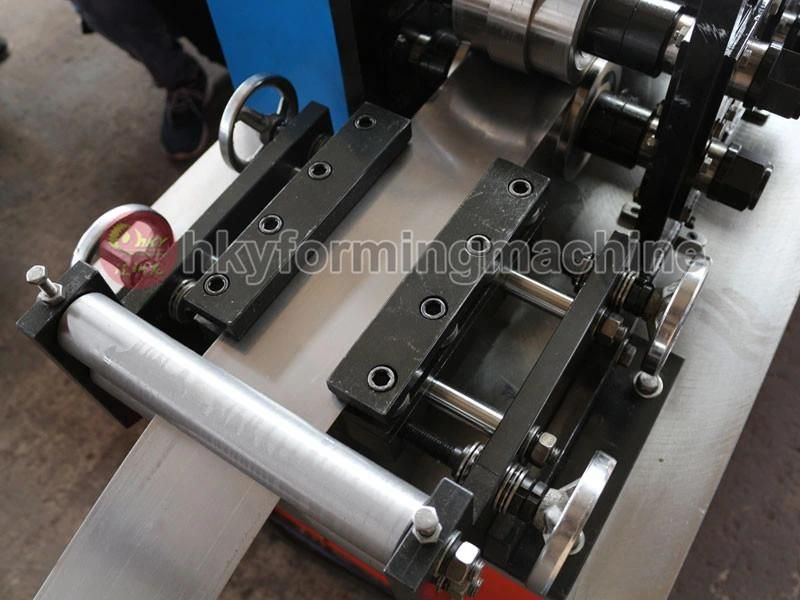

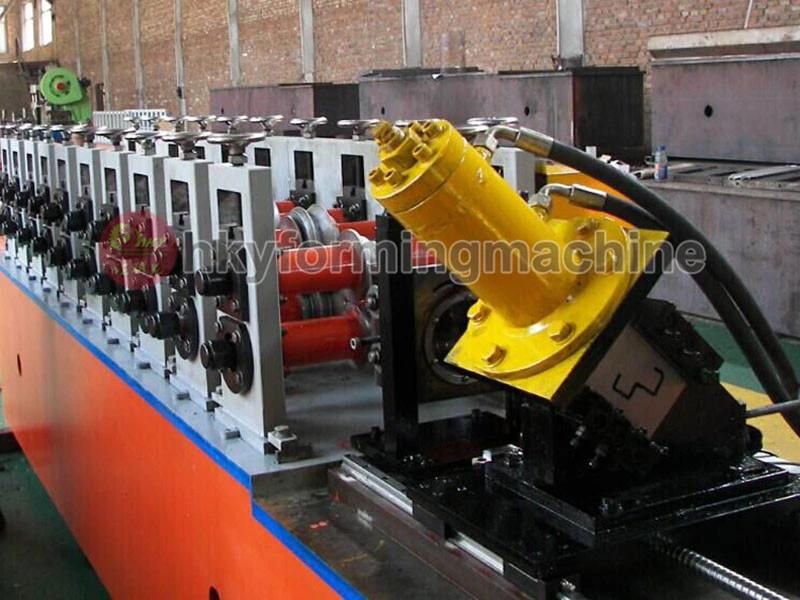

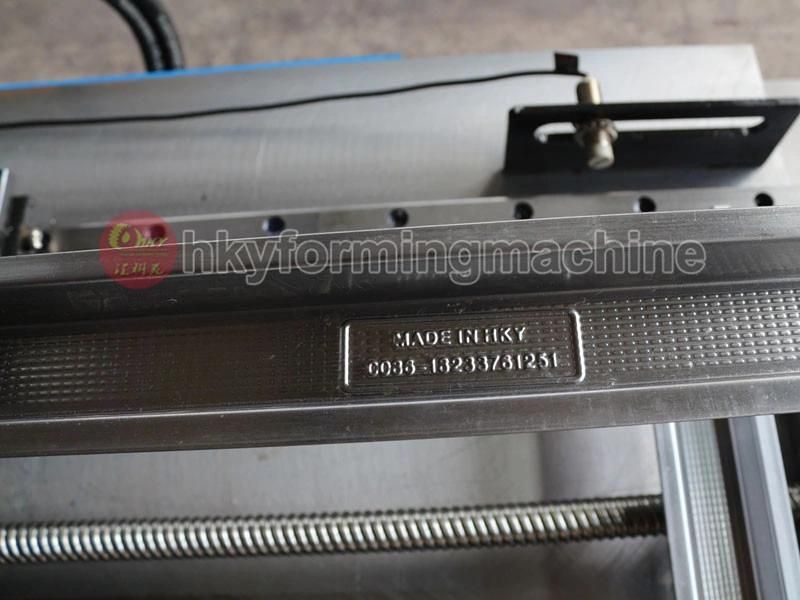

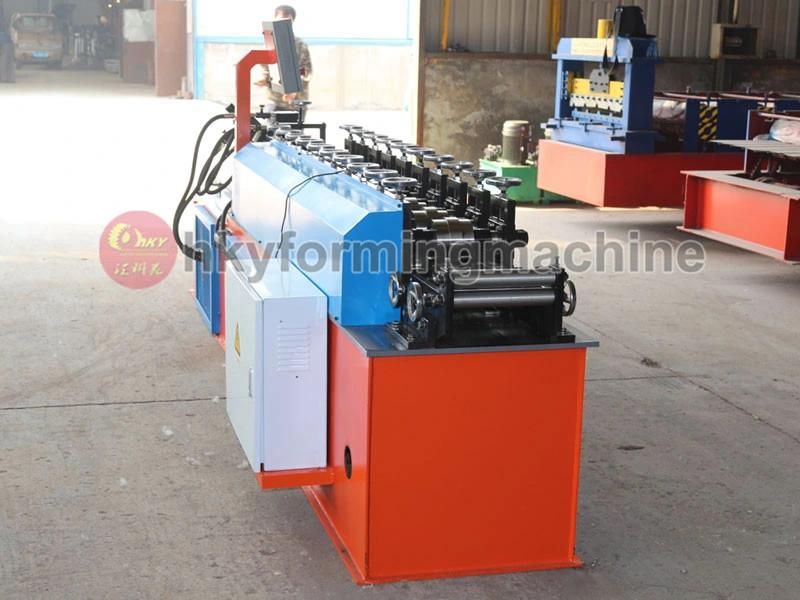

Here are some pictures of C purlin forming machine

C Purlin Forming Machine can produce many standards of C Purlin. Please look at the above chart.

D. Terms
Payment type: 30% T/T prepaid and balance should be paid before loading
Delivery time: 30days after receving advance payment.
Guarantee period: 12months

E. Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

Without visiting, we will send you user manual and video to teach you to install and operate.

If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

F. Primary Competitive Advantages:
· Guarantee/Warranty
· Price
· Product Performance
· Prompt Delivery
· Quality Approvals
· Reputation
· Service
· Small Orders Accepted
