Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine

Cangzhou Zhongheng Machine Manufacture Co., Ltd.
  • After-sales Service：2 Years
  • Warranty：2 Years
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：ZH1000
  • Usage：Roof, Floor
  • Transmission Method：Hydraulic Pressure
  • Specification：1000
  • Trademark：ZHONGHENG
  • Origin：Hebei, China
  • HS Code：8455221000
  • Production Capacity：20 Sets Per Month

Description

Basic Info.

Model NO. ZH1000 Usage Roof, Floor Transmission Method Hydraulic Pressure Specification 1000 Trademark ZHONGHENG Origin Hebei, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description


ZHONGHENG MACHINE MANUFACTURE Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet MachineRoof Sheet Forming MachineRoof roll forming machines has different types which used together with corrugated sheet and IBR sheet, or glazed tile sheet. The ridge cap sheet is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product It has advantage of pretty appearance, durable using and so on.
Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine

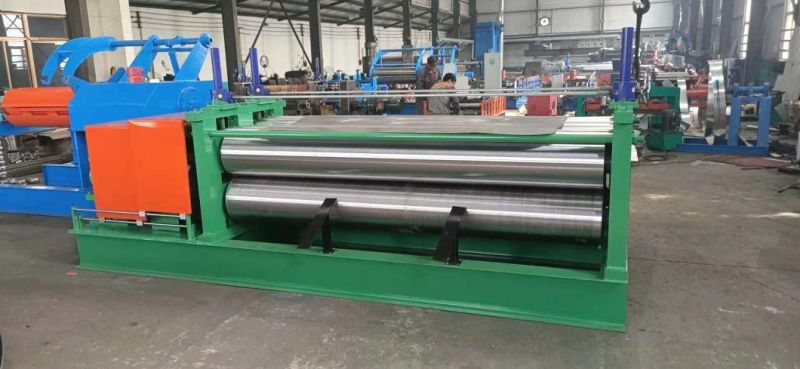

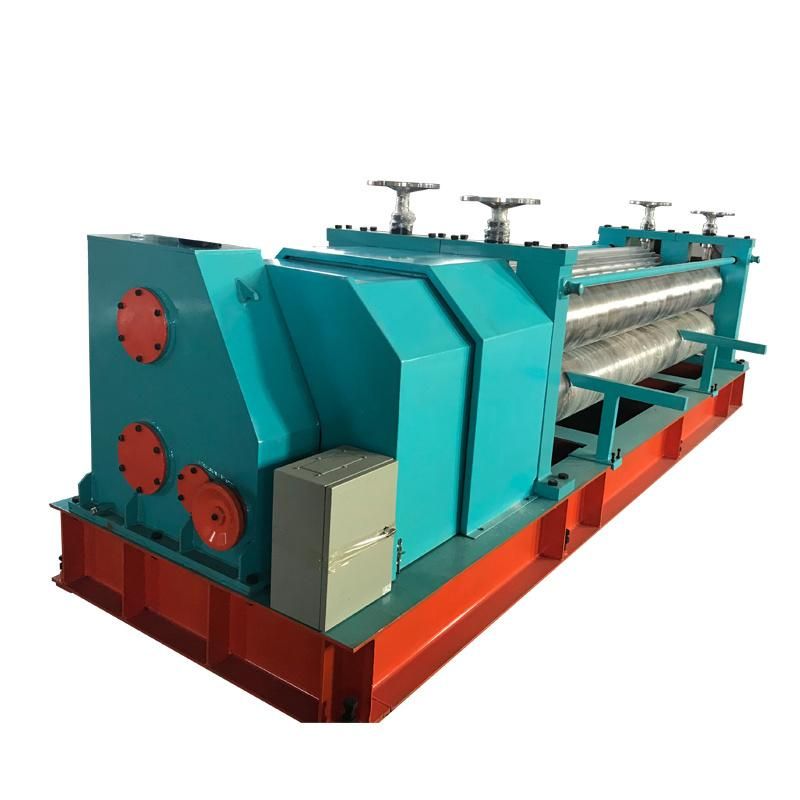

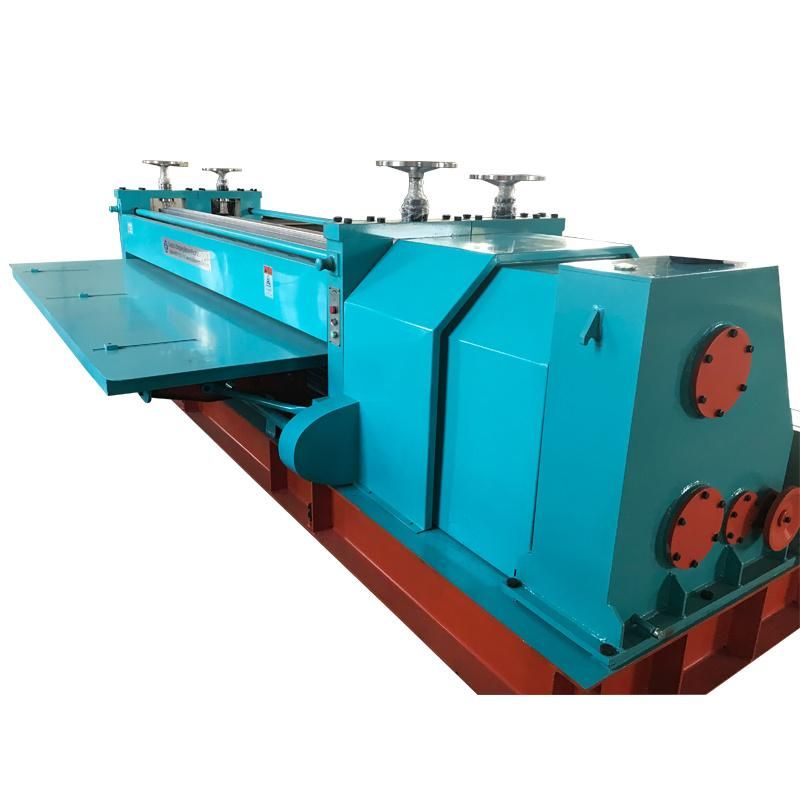

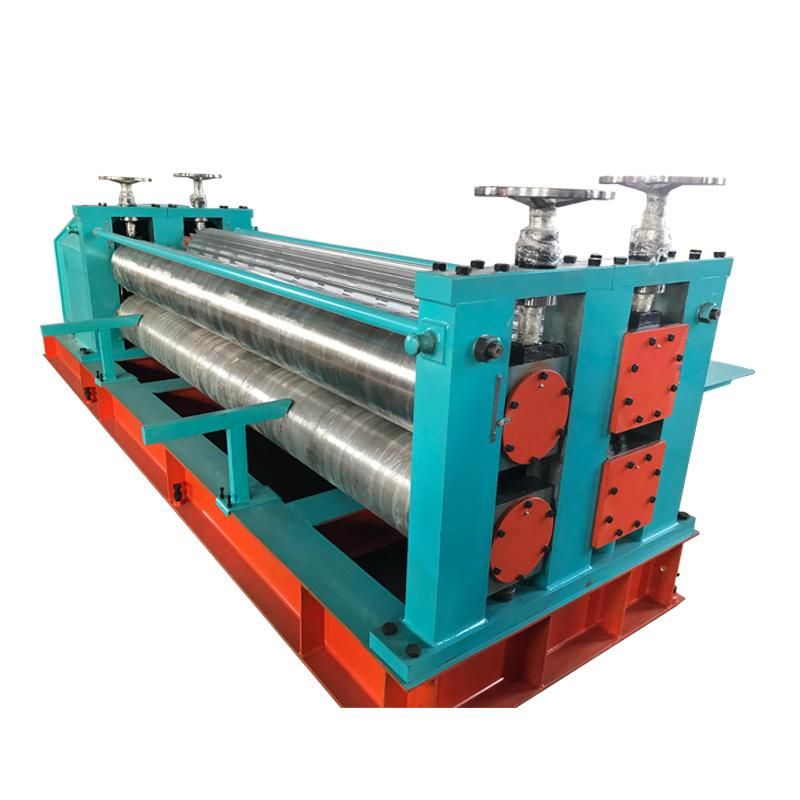

Barrel Horizontal Corrugated Roof Sheet Forming Machine  DescriptionBarrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet MachineBarrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet MachineBarrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine

1.Transverse barrel corrugating type.
2.Raw material: thin Galvanized steel sheets, Aluzinc steel sheets etc
3.Sheet width:762mm(2.5 feet),914mm(3 feet),1000mm,1250mm
4.Width deviation:+25mm,-10mm.
5.Sheet Maximum length:3000mm or 4000mm,
Thickness: 0.13mm to 0.40mm
6.Pitch:76 mm(+/-1.0mm) or customer(s) required.
7.Depth:18mm(+/-0.5mm) or customer(s) required.
8.Corrugation:large round wave (Based on JIS G3316).
9.Drive:geared motor 7.5Kw with reducer X one(1).
10.Roll revolution:max 12/minute.
11.Guider for sheet input:welded steel structure with stopper for setting width.
12.Corrugation roll:barrel length 2000mm-3000(4000)mmL.
13.Pitch adjust roll:barrel length 2000mm-3000(4000)mmL.
14.Up & down device for corrugation and pitch adjusting rolls.
15.Screw X four(4),adjusted by manual handles.
16.Guider for output products:welded steel plates.
17.Control and op panel:relay type X one(1).
18.Hardness:full hard,semi hard,soft.

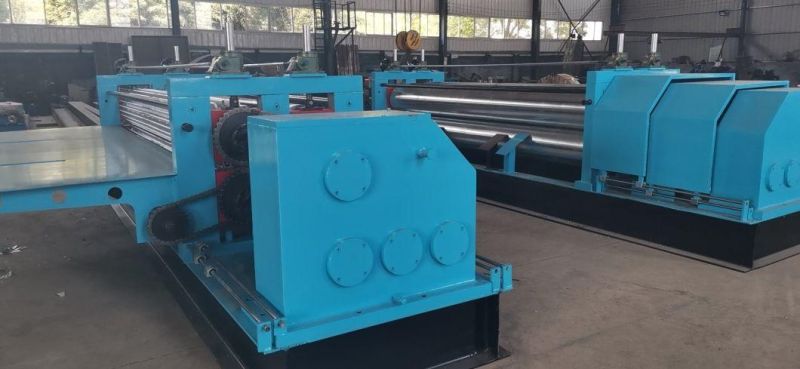

Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine

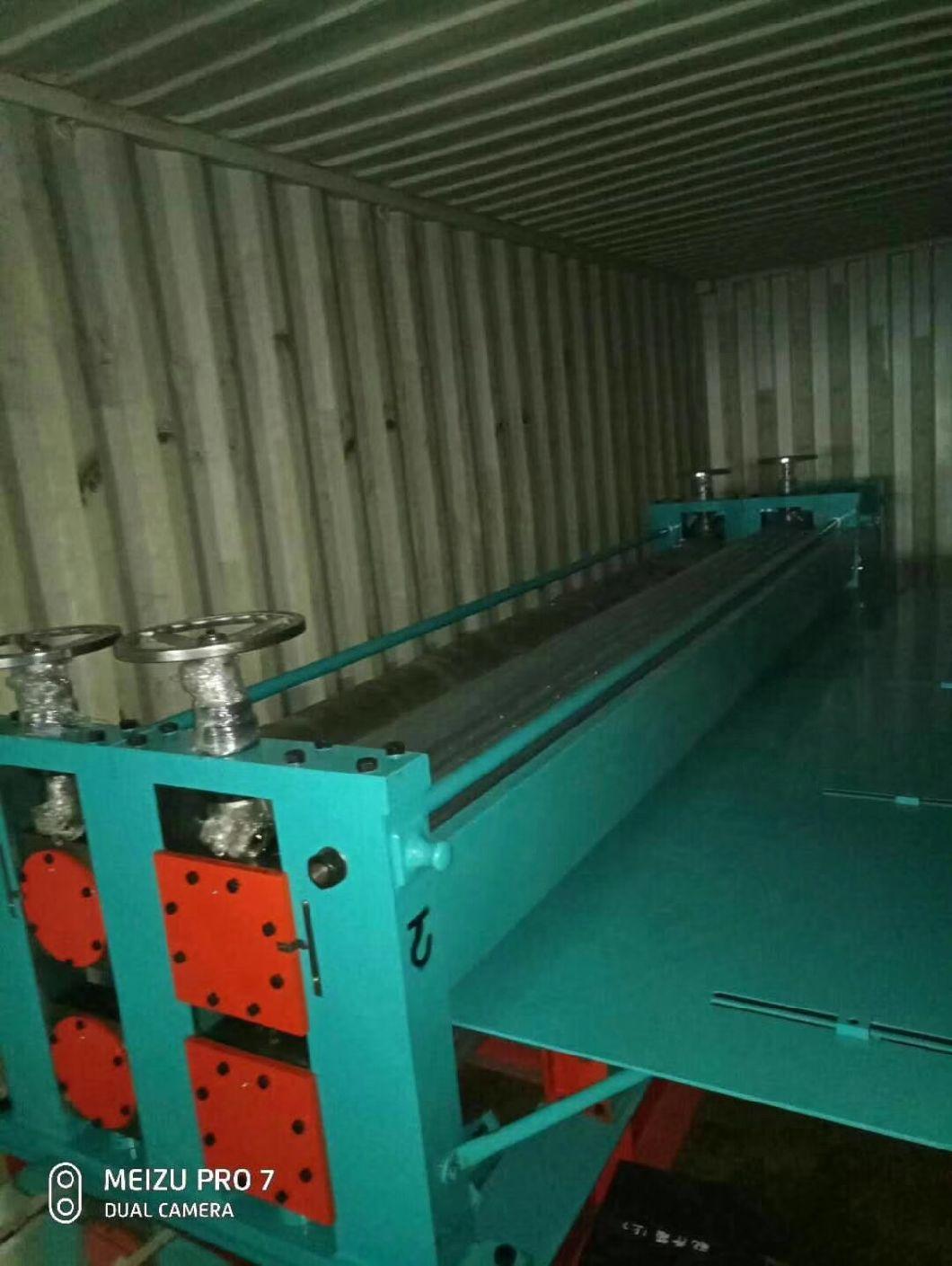

Packing and Shipping

1. Double Layer Roof Sheet Forming Machinery Corrugated Sheet Forming Machine need one 20/40 feet container to load .
2.We have professional technicians for loading to make sure machine has no damage.
3.Please provide us the nearest port name, we will ask shipping cost and arrange shipping for you.

Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine
Company Introduction
Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine
Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet MachineBarrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine
Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine
Barrel Type Corrugated Roof Roll Forming Machine, Tile Making Machinery, Roofing Sheet Machine
FAQ

1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the One-YEARS period, we could supply you the replacement parts for free .
If any damaged parts caused by quality problems after two years,we will also help but customer pay the cost .

More information please send inquiry to us , you will get reply within 12 hours !
