• Model NO.：LBW2000
• Transmission Method：Electric
• Vertical Glass Washing Machine：Glass Washing Machine
• Insulating Glass Washing Machine：Glass Cleaning Machine
• Type：Float Glass
• Shape：Flat
• Glass Thickness：12mm
• Moh′s Hardness：5
• Color：as Your Request
• Usage：Glass Washing Machine
• Transport Package：Suitable Package for Sea
• Specification：ISO9001,2000, CE
• Trademark：CNSUNNY
• Origin：China
• HS Code：8475
• Production Capacity：10 sets in one month

Basic Info.

Model NO. LBW2000 Transmission Method Electric Vertical Glass Washing Machine Glass Washing Machine Insulating Glass Washing Machine Glass Cleaning Machine Type Float Glass Shape Flat Glass Thickness 12mm Moh′s Hardness 5 Color as Your Request Usage Glass Washing Machine Transport Package Suitable Package for Sea Specification ISO9001/2000, CE Trademark CNSUNNY Origin China HS Code 8475 Production Capacity 10 sets in one month

Product Description

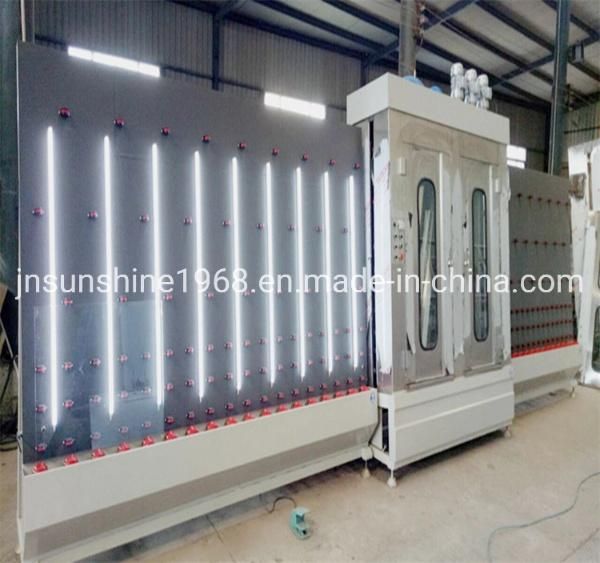

LBW2000 Vertical Float Glass Washing and Drying Machine / Glass Cleaning Washing Machine

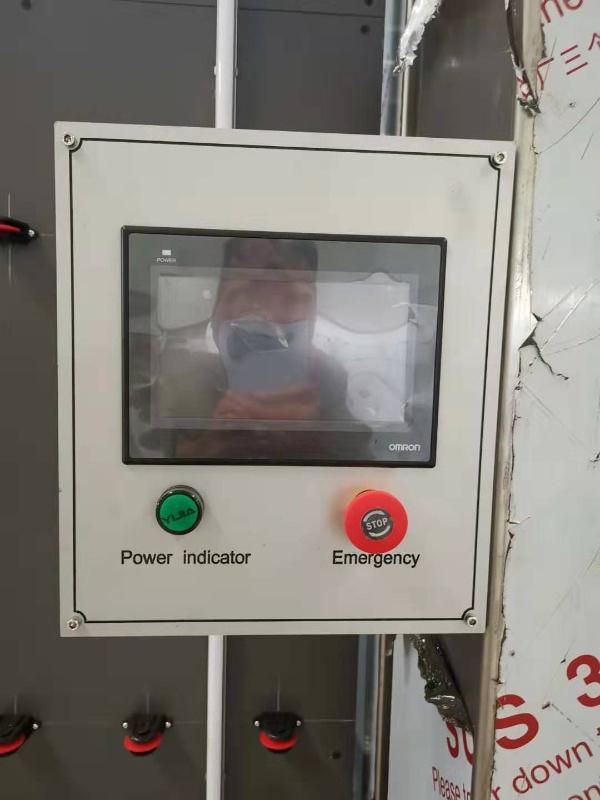

Touch Screen


Main Features
1. The machine has Loading section, washing and drying section, washing quality inspection section.
2. LB Series Vertical Glass Washing and Drying Machine can be matched with insulating line
3. Glass can be dried fast with the design of strong air knives, stainless stee washing tank.
4. The soft low-e brush can wash low-e glass, also the machine can be designed according to your special demands.
5. PLC control system with touch screen operation interface
6. Imported oil-free water proof bearings prevents the contamination to the water.
7. It has 6 brushes driving by 3 motors.
8. There is one sensor on the first transmit stage.
If the glass's height is more than 1meter, two motors start automatically to transmit the glass. If the glass is less than 1 meter, only one motor start to transmit the glass.
It saves electricity a lot.

Technique Parameter

Model	Max. Glass size	Min. Glass size	Glass Thickness	Power	Weigh
LBW2500	2500*3000mm	300*500mm	3-12mm	19Kw	4500Kg
LBW2200	2200*3000mm	300*500mm	3-12mm	19Kw	4200Kg
LBW2000	2000*2500mm	300*400mm	3-12mm	15Kw	3500Kg
LBW1800	1800*2440mm	300*400mm	3-12mm	15Kw	3000Kg
LBW1600	1600*2000mm	300*400mm	3-12mm	12kw	2650Kg

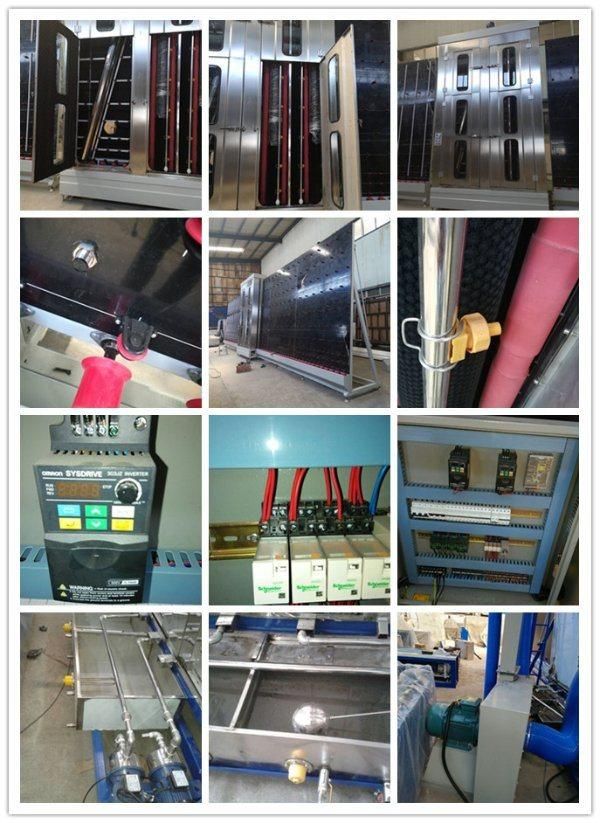

Float Glass Washing and Drying Machine details:


Guarantee & Aftersales service
Guarantee the complete machine for one year, except the consumable parts.
24hour technical support by email or calling.
User-friendly English manual for machine using and maintaining
