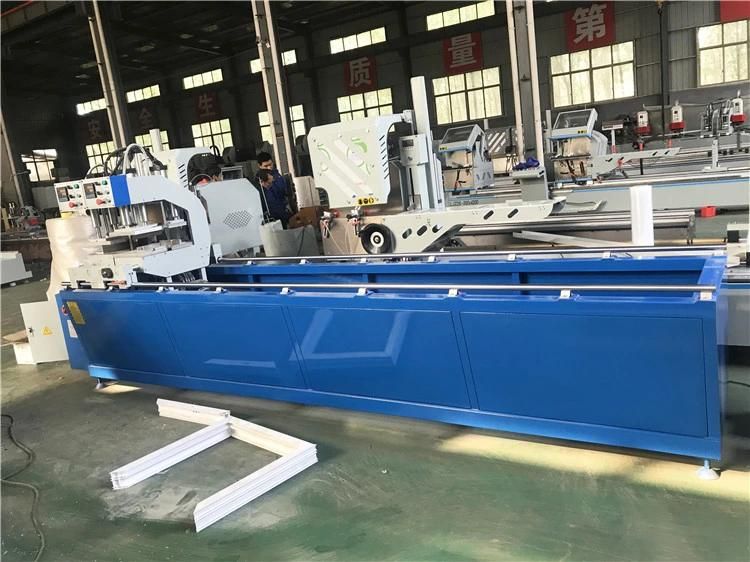

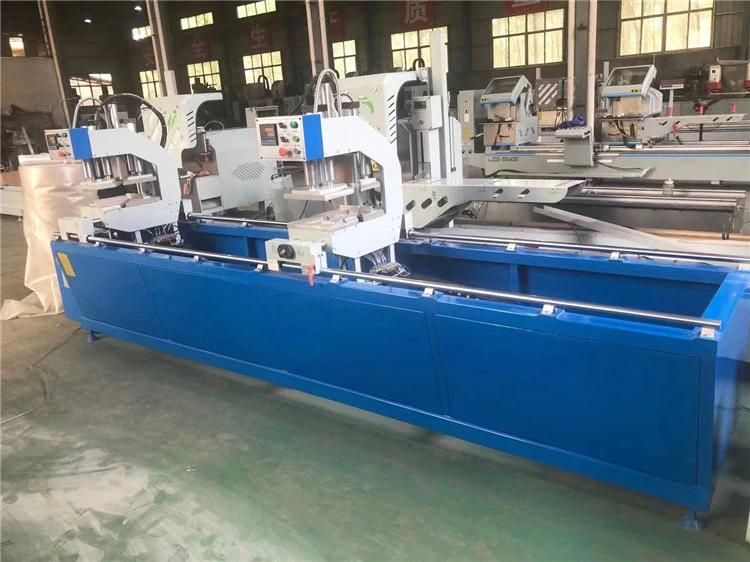

Factory Promotion! ! ! PVC UPVC Window Welding Machine Chinese Manufacturer/ Two Double Heads PVC Welder Welding Machine/UPVC Window Making Machine

Jinan Hiwoc Group Co., Ltd.
  • Warranty：2 Years Warranty Time
  • Condition：New

Base Info

  • Model NO.：SHJ2-120*3500
  • Certification：ISO, CE
  • Automatic Grade：Semi-Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Air Pressure：0.5~0.8MPa
  • Air Consumption：100L,Min
  • Input Voltage：220V 50~60Hz or as Customer Need
  • Input Power：2.5kw
  • Welding Profile Height：20-100mm
  • Welding Width：Max 100mm
  • Welding Range：400-3500mm
  • Overall Size：4400X950X1700mm
  • Weight：1200kg
  • Warranty Time：2 Years
  • Transport Package：File and Plywood Case
  • Specification：4400x950x1700mm
  • Trademark：Hiwoc
  • Origin：China
  • HS Code：84659200
  • Production Capacity：1000,Year

Description

Basic Info.

Model NO. SHJ2-120*3500 Certification ISO, CE Automatic Grade Semi-Automatic CNC or Not not CNC Voltage 380V Air Pressure 0.5~0.8MPa Air Consumption 100L/Min Input Voltage 220V 50~60Hz or as Customer Need Input Power 2.5kw Welding Profile Height 20-100mm Welding Width Max 100mm Welding Range 400-3500mm Overall Size 4400X950X1700mm Weight 1200kg Warranty Time 2 Years Transport Package File and Plywood Case Specification 4400x950x1700mm Trademark Hiwoc Origin China HS Code 84659200 Production Capacity 1000/Year

Product Description

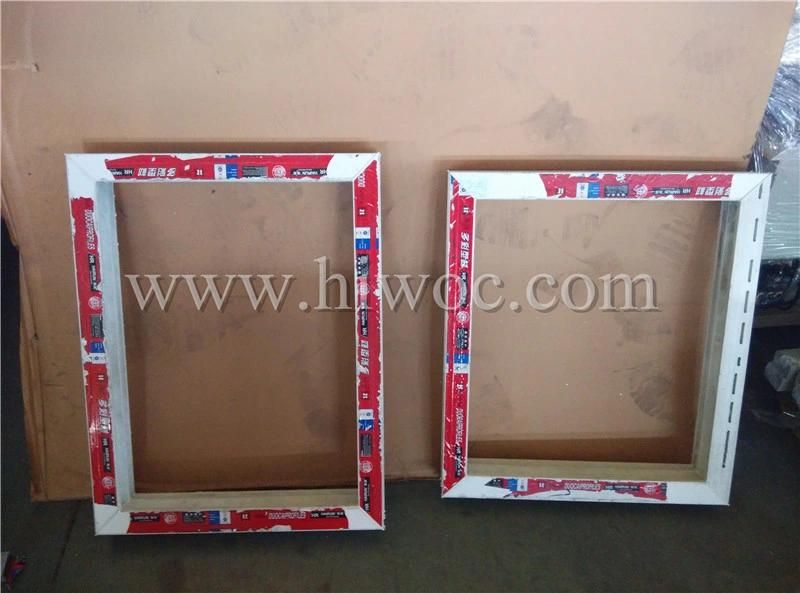

Feature1. Welding  ⊥∟+∠ many kinds shapes combined with each other, and maybe welded to range of arbitrary angle.2. Three heads can work independently and can also be linked, flexible combination, high work efficiency.3. Right head could be 30° ~ 180° arbitrary angle welding
Parameter
Air Pressure0.5~0.8MPa
Air consumption200L/min
Input Voltage220V 50~60Hz or As Customer need
Input Power4.5Kw
Welding profile height  20-100mm could be customized
Welding Width Max 120mm
Welding range   400-4500mm
Overall size5300×950×1700mm
Weight1800kg

Main accessory

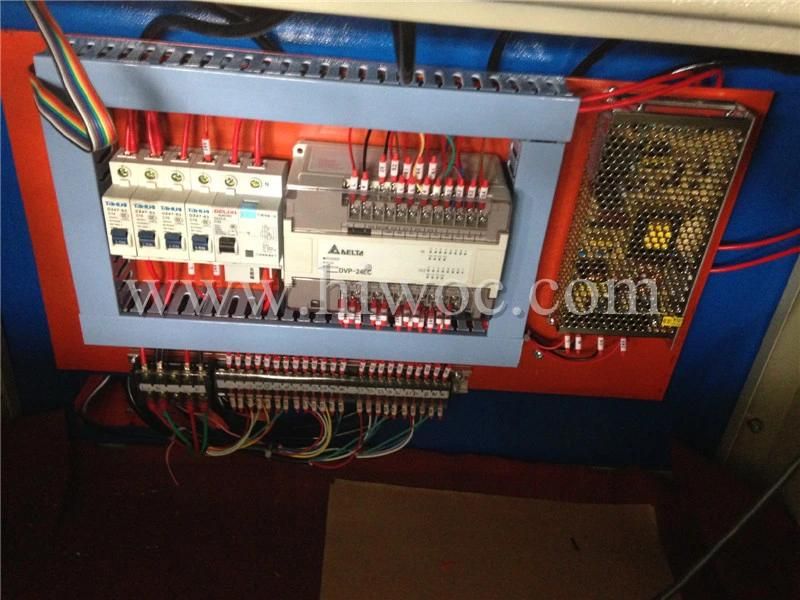

PLCTaiwan Delta
Solenoid valveSitairui
CylinderHuatong
MotorAnhui Sanyang (Best Chinese Motor Brand)
Air Filter DeviceAIRTEC
Electrical Button and SwitcherSchneider
AC Contactor and Circuit BreakerSchneider

Standard accessory
Heat plate4pcs
Teflon cloth several
Complete tooling1set
Certificate1pc
Operation Manual1pc
