• Model NO.：NM945
• Usage：Roof, Wall
• Transmission Method：Electric
• Name：Steel Chromdek Ibr Roof Sheet Roll Forming Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+3kw
• Work Speed：10-15m,Min
• Operation Type：Touching Screen
• PLC Brand：Panasonic,Siemens
• Machine Weight：About 5 Tons
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：6300mm*1500mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Manual decoilerCapacity5tonFeeding widthMAX 1000mmExpanding range460-520mm Color Steel Chromadek IBR Roof Sheets Machine Metal Roofing Sheet Roll Forming Machinery to South Africa Main motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station18 groupsRaw material0.3-0.8mmCoil width 914mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 5 tonSize of machineAbout 8500×1800×1500mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power3KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :

No.	Product Name	QTY
1	5T Manual decoiler	1
2	Color Steel Chromadek IBR Roof Sheets Machine Metal Roofing Sheet Roll Forming Machinery to South Africa  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Character of main structure:

1. The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
2. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
4. It is very easy to install the equipment and suitable for producing in the factory.
5. Low noise with high efficiency.

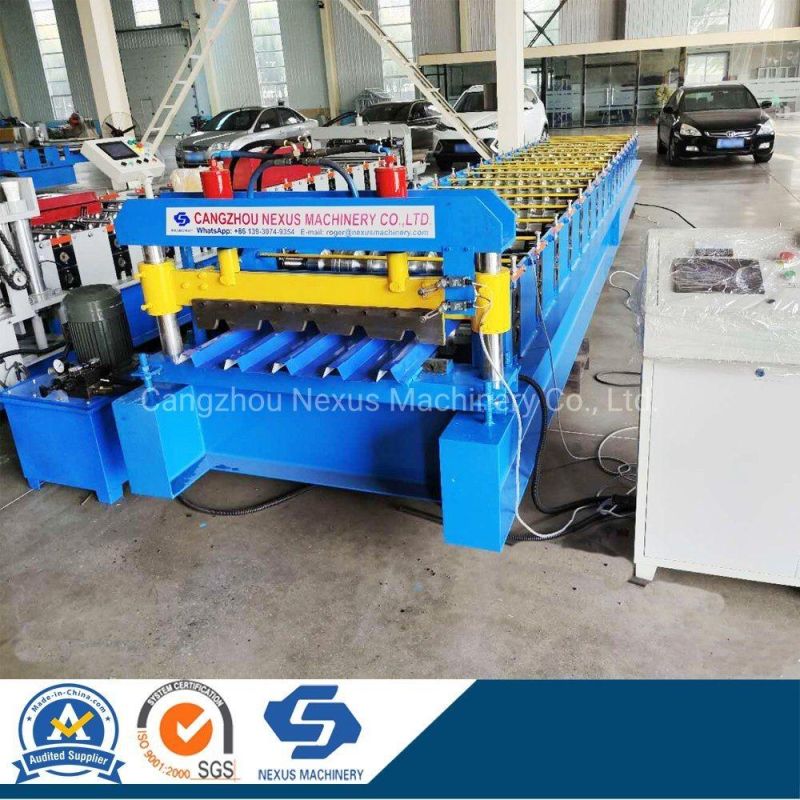

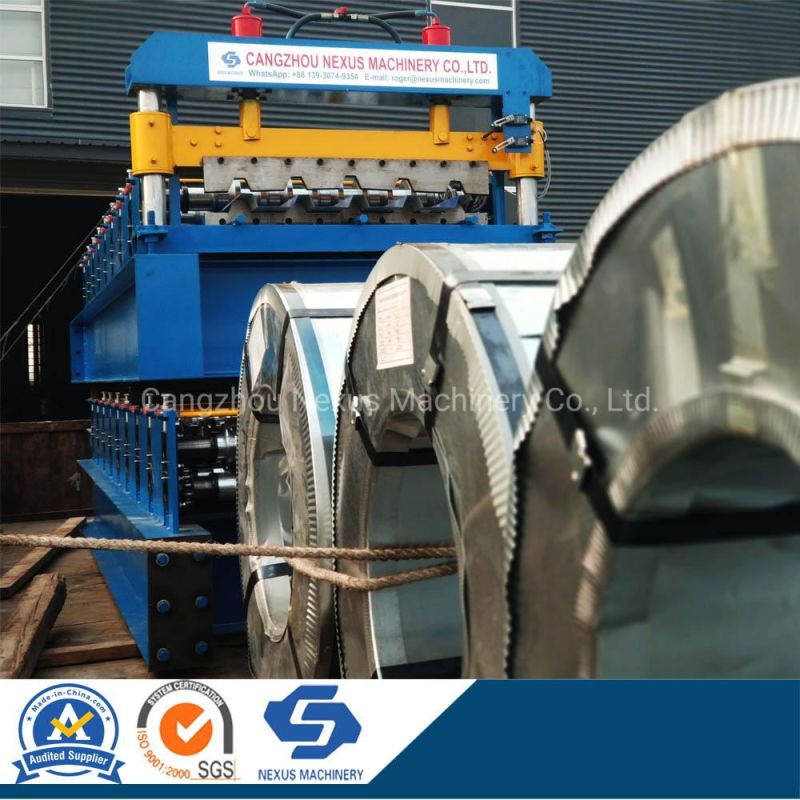

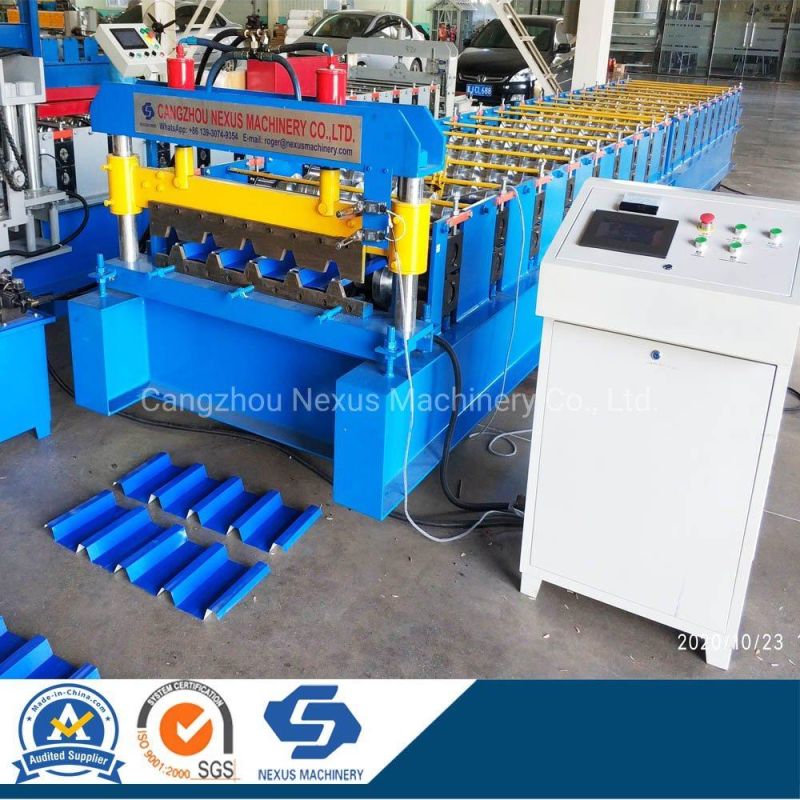

6. Photos of Color Steel Chromadek IBR Roof Sheets Machine Metal Roofing Sheet Roll Forming Machinery to South Africa for Reference:

Fair Photos of Cangzhou Nexus Machinery Company:

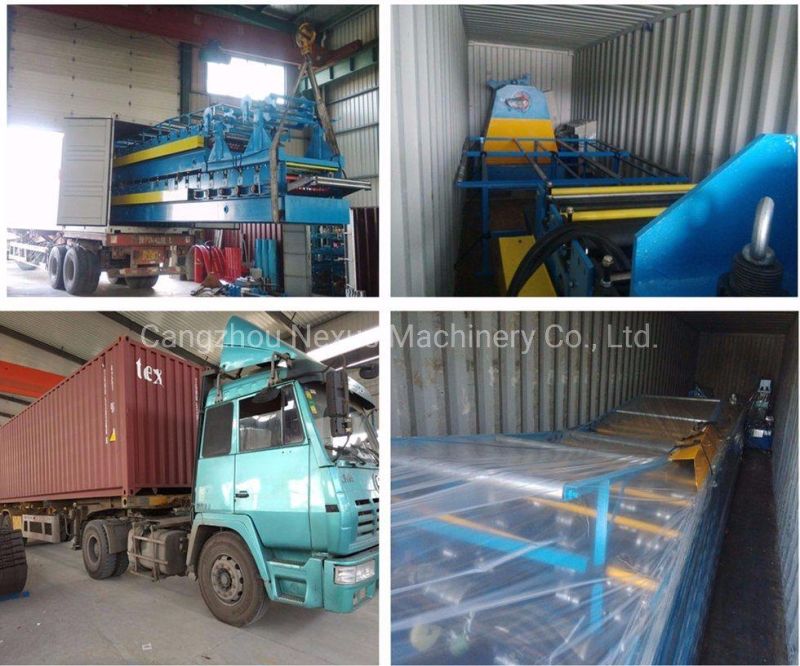

Machine Loading Photos:

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.
