Double Layer Galvanized Steel Cold Rolled Forming Machine

Hangzhou WILLING INTERNATIONAL CO., LTD.
  • Tile Type：Glazed Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof, Wall, Floor, Ceiling
  • Transmission Method：Machinery

Base Info

  • Model NO.：Dual Level Machine
  • Material：PPGI,PPGL,Pre-Painted Steel Sheet
  • Roller Material：45#Steel with Chrome Treatment
  • Thickness：0.3-0.7mm
  • Yield Stress：235-350 MPa
  • Max.Forming Speed：20 M,Min for Trapezoidal,5m,Min for Tile
  • Total Motor Power：10.5 Kw
  • Total Weight：12 Tons
  • Warranty：12 Month
  • After-Sales Service Provided：Engineers Available to Service Machinery Overseas
  • Transport Package：Sea Worthy Fixed by Wire Rope, Wooden Blocks
  • Specification：CE Standard, ISO 9001-2008
  • Trademark：WILLING INT′L
  • Origin：China R. P
  • HS Code：84552210
  • Production Capacity：150 Sets Per Year

Description

Materialgalvanized steel, pre-painted steel, and aluminum.ThicknessFrom 0.3 mm to 0.7mm.Main Motor Power7.5 kw.Hydraulic Power3 kw.Feeding Width1000/1200mm.Cover Width835/1002mm and 800/1000mm.Yield Stress235Mpa (33KSI) ~ 350Mpa (50KSI).Total Speed20 m/minute for trapezoidal profile; 5m/minute for tile profile.Cutting Tolerance+/-2.5mm(length≤5000mm); +/-3.0mm(5000mm<length≤10000mm).Manual Uncoilercapacity is 5 tons.Coil Inner Diameter508mm or 610mm.Voltage380V, 3 phase, 50 HZ, or customized.Numbers of Station17~18 stations.Type of Cuttingroll-formed and length-set profile cutting.
2.     Material of Main Equipment:Roller MaterialHigh grade S45C forged steel, coated with hard chrome. Active Shaft MaterialHigh grade S45C carbon wrought steel, diameter 80mm.Electric ElementsPLC control console, touch screen and transducer,
from Siemens, Germany. It has data storage function.
Other electrical parts, from Schneider Electric, Germany.Cutter BladesCr12MoV steel with quenched treatment, hardness HRC58~61,

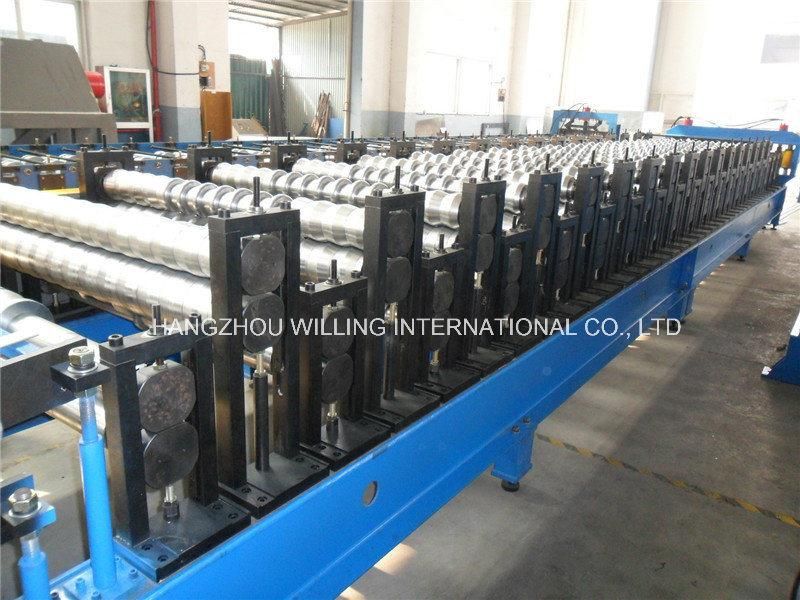

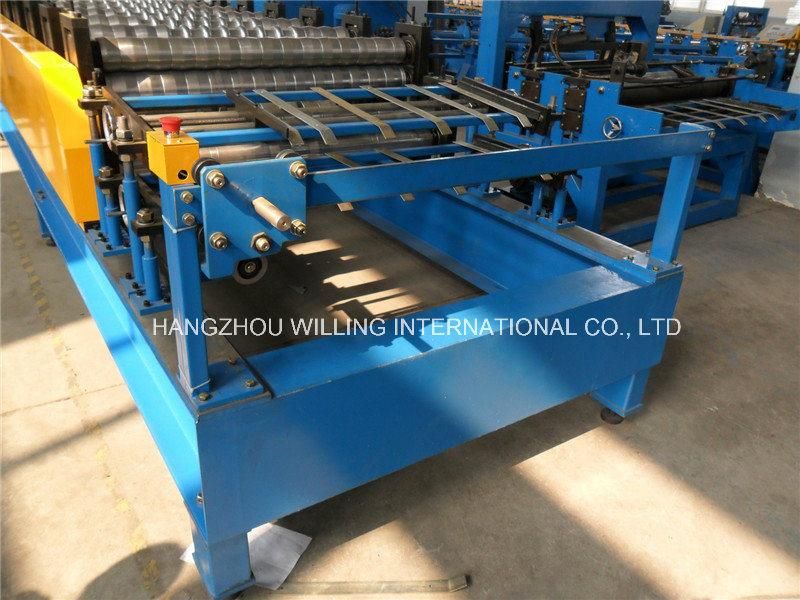

wear-resistance, good steel structure, long life. Double Layer Galvanized Steel Cold Rolled Forming MachineDouble Layer Galvanized Steel Cold Rolled Forming MachineDouble Layer Galvanized Steel Cold Rolled Forming Machine
Process Sketch
Uncoiling the sheet -Pre-cut -Material feeding ðRoll forming - Measure the length -Cutting the panel -Panels running out to the supporter (optional: automatic stacker)

Packaging & Shipping

1.One 40ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;
4.All Components Fixed by steel wire with Container.

Company Profile
Double Layer Galvanized Steel Cold Rolled Forming MachineDouble Layer Galvanized Steel Cold Rolled Forming Machine

FAQ

  1. Q:Are you a manufacturer?
  2. A:Yes absolutely. Welcome a lot for your visiting to us.

  3. Q:What's the delivery time?

    A:Normaly will take 60days

  4. Q:Do you have after-sale support?

    A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

  5. Q:Is there quality control when manufacturing the lines?

    A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

  6. Q:What's your strength comparing to the other supplier?

    A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
